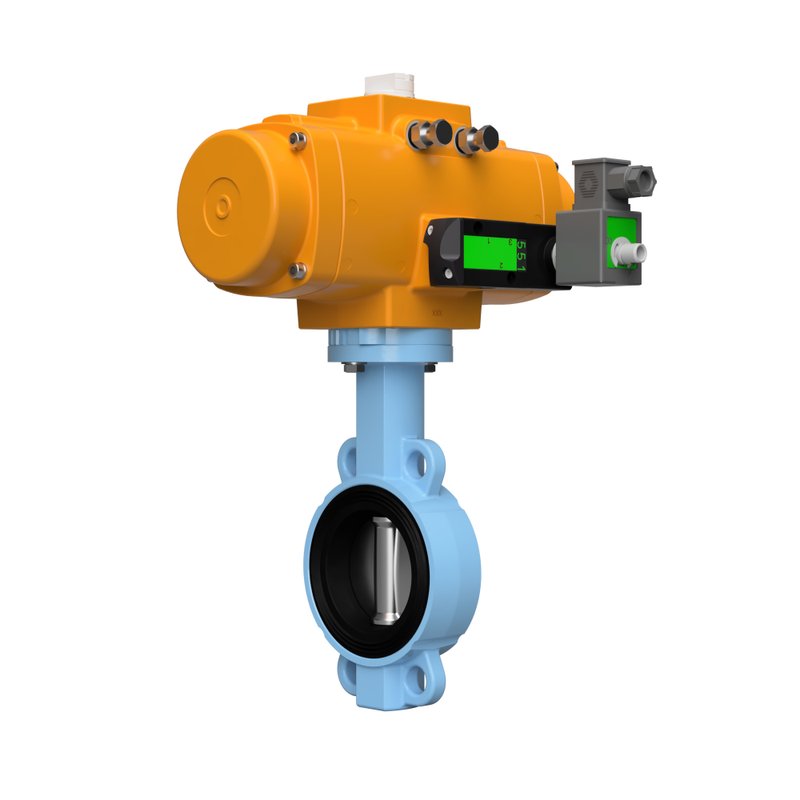

The 20W3040ETELDN0050DAALPN1602 is a 2" TTV butterfly valve in a wafer pattern, rated PN16 for flanged pipework and supplied as a complete actuated assembly.
The valve has a ductile iron GJS500-7 body and a concentric seat design, fitted with a high temperature EPDM seat.
It is automated with an Elomatic pneumatic actuator, double acting (air to open, air to close). The actuator has a powder coated cast aluminium housing and a screw-type manual override.
It is supplied with a 110VAC SCG551A001MS pilot solenoid valve and without a limit switch box.
