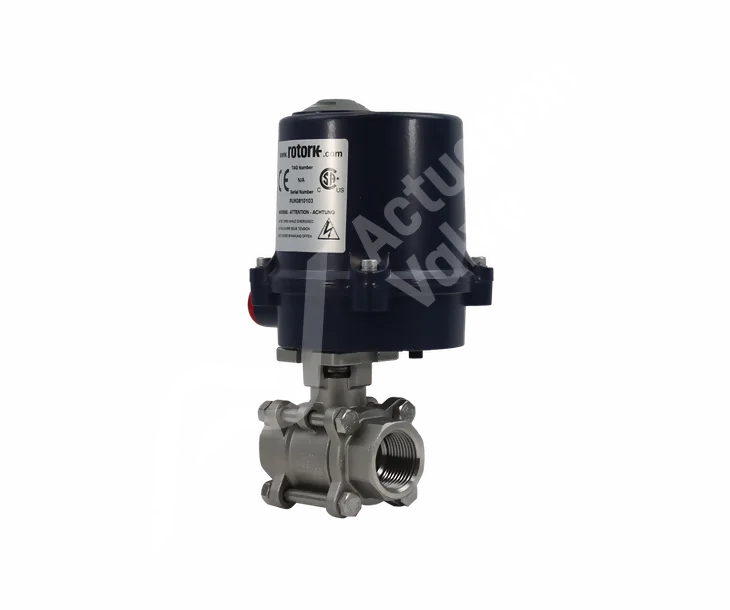

Rotork Actuated 3 Piece Full Bore Electric Ball Valves

The AV-L3000ROM, AV-L3100ROM & AV-L3200ROM 3 piece full bore actuated ball valve consists of a ASTM A351 CF8M 316 stainless steel body & trim. Valve sizes range from 1/4” to 4” nominal bore. The isolation ball valve is fully maintainable and reliable. The centre section of the 3 piece body design future proofs preventive maintenance schedules with a drop out section easily removed for seal replacements. Options include UHMWPE (Ultra High Molecular Weight Polyethylene) seats and extensions. This electric actuator offers long-term reliability thanks to its proven design and construction, making it perfect for critical environments like high temperature or hazardous locations where failure could lead to costly downtime.

Key Features

Key features and benefits of the AV-L3000ROM, AV-L3100ROM & AV-L3200ROM Actuated Ball Valves.

Key Features

If you’re looking for an alternative solution then look no further than our AV-L3000 Series Actuated Ball Valves. These products offer improved sealing capabilities while also reducing operating costs thanks to their low torque requirements.

Key Features

Rotork have over 60 years of flow control and electric actuator manufacturing experience with continuous product development. The ROM is recognised as a market leading electric valve actuator at the forefront of Rotork's technology offering.

Key Features

Rotork’s electric actuator is designed for durability in harsh conditions. The unit can withstand immersion up to 10 meters deep, withstanding shock or vibration without any issues and maintaining performance at variable temperatures.

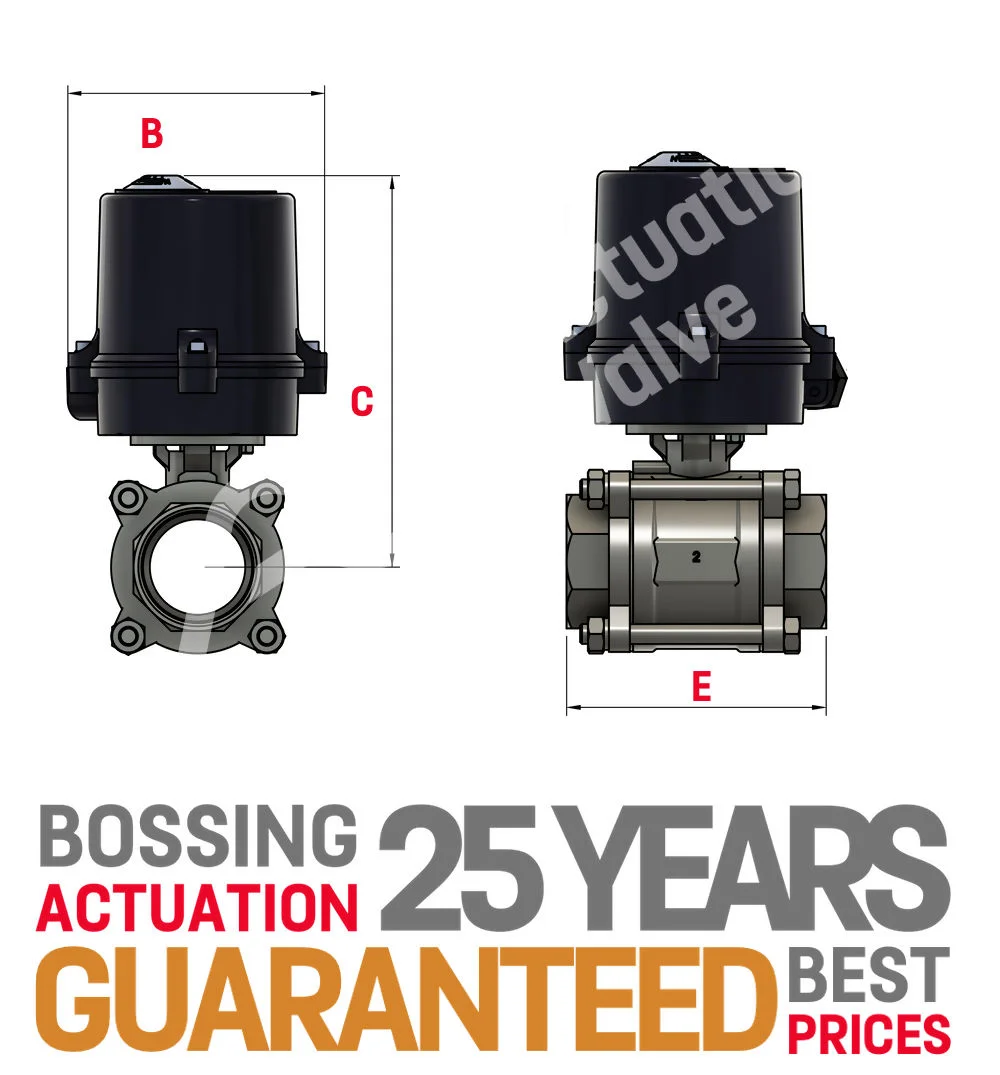

Screwed/Socket Weld Technical Stuff

B C E Model
1/4" 114.00 178.00 75.00 ROM-1
3/8" 114.00 178.00 75.00 ROM-1
1/2" 114.00 178.00 75.00 ROM-1
3/4" 114.00 184.50 80.00 ROM-1
1" 114.00 194.50 90.00 ROM-1
1 1/4" 114.00 199.00 110.00 ROM-1
1 1/2" 114.00 207.30 120.00 ROM-1
2" 114.00 247.20 140.00 ROM-A
2 1/2" 196.00 412.00 185.00 ROM-2
3" 196.00 420.50 205.00 ROM-3
4" 196.00 517.00 240.00 ROM-3

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Butt Weld Valve 3D Stuff

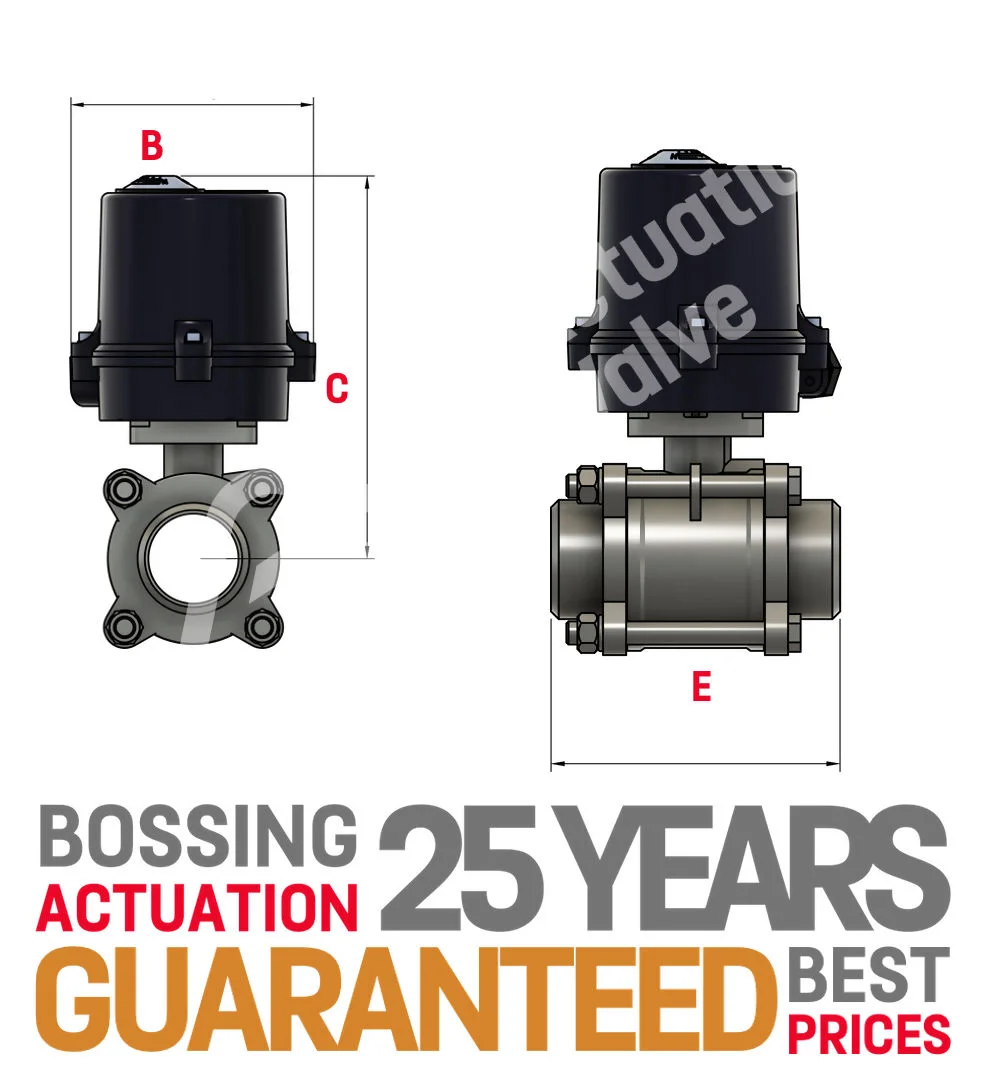

Butt Weld Valve Technical Stuff

B C E Model
1/4" 114.00 178.00 70.00 ROM-1
3/8" 114.00 178.00 70.00 ROM-1
1/2" 114.00 178.00 75.00 ROM-1
3/4" 114.00 184.50 90.00 ROM-1
1" 114.00 194.50 100.00 ROM-1
1 1/4" 114.00 199.00 110.00 ROM-1
1 1/2" 114.00 207.30 125.00 ROM-1
2" 114.00 247.20 150.00 ROM-A
2 1/2" 196.00 412.00 190.00 ROM-2
3" 196.00 420.50 220.00 ROM-3
4" 196.00 517.00 270.00 ROM-3

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends: (AV-L3000) BSP IS0 7-1 (DIN 2999)
NPT Ends: (AV-L3000) ASME B1.20.1
Socket Weld Ends: (AV-L3100) ASME B16.11
Butt Weld Ends: (AV-L3200) ASME B16.25 (Sch 40)
Pressure Rating: 1000 PSI

Frequent Interrogation

A 3 Piece Premium Ball Valve is a type of ball valve consisting of three main components: a central ball with a hole through it, and two end caps. It is known for its durability and ease of maintenance.

These valves are commonly used in various industries for controlling the flow of fluids, including water, oil, gas, and chemicals. They are ideal for isolation and throttling applications.

Premium ball valves often feature high-quality materials, precision machining, and better sealing capabilities, making them more reliable and suitable for critical applications.

Yes, many premium ball valves are available in materials resistant to corrosion, such as stainless steel, making them suitable for handling corrosive substances.

Yes, 3 Piece Premium Ball Valves are often designed to withstand high-pressure environments, making them suitable for industrial and process control systems.

Maintenance typically involves periodic cleaning, lubrication, and replacement of seals or gaskets when necessary. Refer to the manufacturer's guidelines for specific maintenance instructions.

They provide excellent flow control, tight shut-off, and minimal pressure drop, making them a preferred choice for many applications. Their disassembly for maintenance without cutting into the pipeline is another advantage.

Yes, many of these valves can be automated by adding actuators, making them suitable for remote or automated control systems.

The temperature range depends on the materials used, but many premium ball valves can handle temperatures from -20°C to 200°C or higher, depending on the design and materials.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
