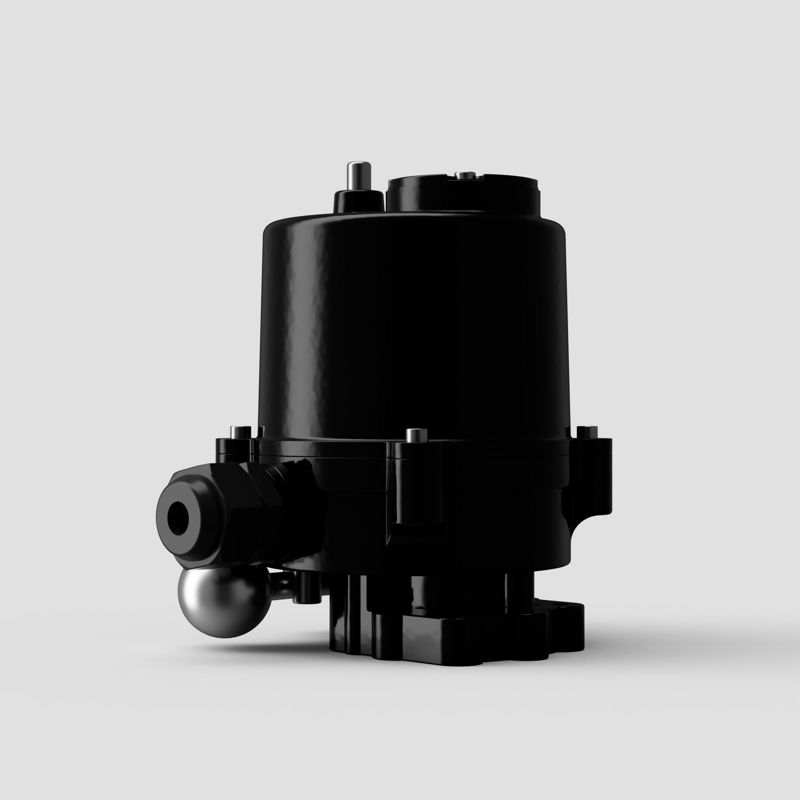

The Ares multi-voltage electric actuator is a compact, high-performance solution designed for the precise automation of ball and butterfly valves. Featuring a powerful 40Nm torque output and an intelligent automatic voltage-sensing circuit, this actuator seamlessly handles supply voltages anywhere from 24V to 220V AC or DC, massively reducing inventory complexity.
Built for versatility and rugged environments, it comes standard with a fast, adjustable operating time and a dual-ISO mounting flange for direct connection to standard valve ISO pads without needing brackets.
Technical Specifications
| Specification | Rating / Value |
| Brand / Model | Ares Series |
| Torque Output | 40Nm |
| Voltage Range | 24V – 220V AC/DC (Multi-Voltage) |
| Rated Current | 2A |
| Operating Speed | 4.5 – 15 seconds (varies by load/voltage) |
| ISO Flange Mount | ISO 5211 F03 / F05 |
| Drive Size | 11mm x 11mm Female Star/Square |
| Ambient Operating Temp | -25°C to 60°C |
