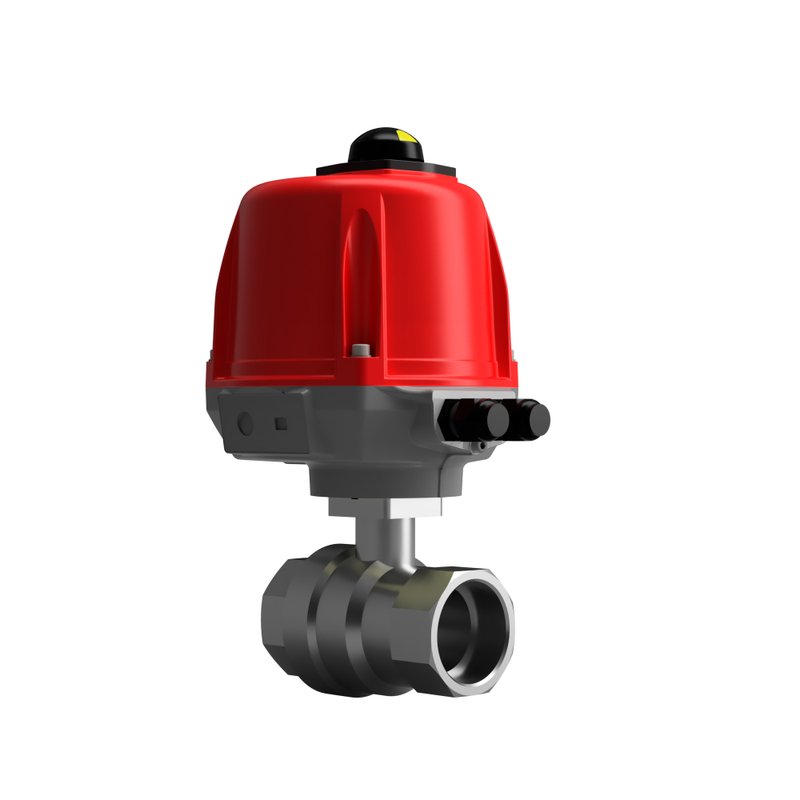

AV-L200HBSPDN0040VRB Actuated Ball Valves Screwed BSP 2 PCE Full Bore Stainless Steel A351 CF8M Straight Through Electric Valpes VRB

£666.21ex. VAT
Pay in 3 easy payments of £266.48 with Klarna
Add to Basket
Make an Enquiry Apply for Credit
Next Day Delivery Available
Technical Support
Price Match Guarantee

Technical Specs

Valve Size 1.5"
Connections Screwed BSP
Pressure Design 1500 PSI
Body Design 2 PCE Full Bore
Body Material Stainless Steel A351 CF8M
Ball Design Straight Through
Seat Material 25% Carbon PTFE 1600
Actuator Function Power Open Power Close
Actuator Type Electric ER35.X0B.GS6
Actuator Housing Nylon Polyamide PA6
Power 15V - 30VAC (12V - 48VDC) Multi Voltage
Manual Override Handle
IP Rating IP68
F2F Dimension 105
Part Number AV-L200HBSPDN0040VRB
Brand Kingdom
Actuator Brand Valpes VR
