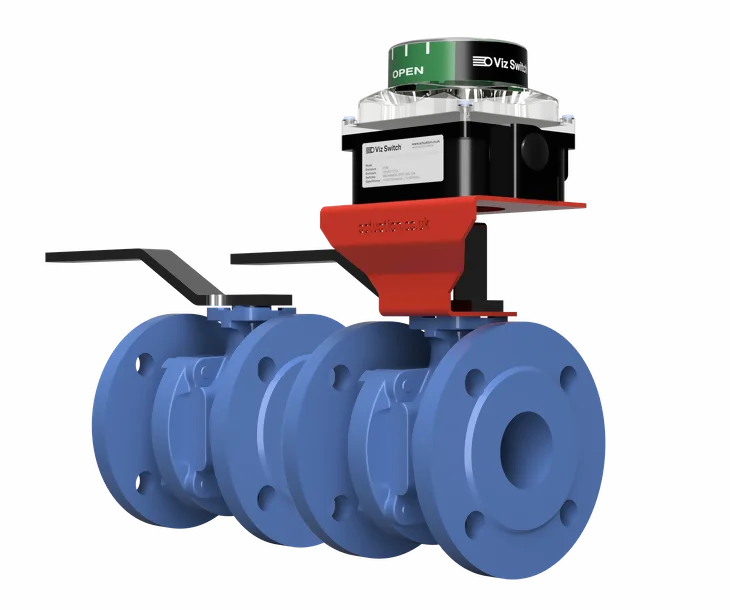

Ductile Iron ANSI 150 Flanged Ball Valves

Ductile iron ANSI 150 flanged ball valves are essential components in various industrial applications, offering durability, reliability, and efficient flow control. These valves are designed to handle a wide range of fluids, including water, oil, gas, and chemicals, making them suitable for diverse industries such as oil and gas, water treatment, chemical processing, and power generation.
Shop Help Me

Key Features

Key features and benefits of AV-5561.
1

Key Features

Ductile iron ANSI 150 flanged ball valves are highly versatile and available in various sizes and configurations to meet specific application requirements. They can be equipped with different seat and seal materials, such as PTFE, RTFE, and metal, ensuring compatibility with various fluids and operating conditions. Optional features like locking devices, stem extensions, and actuation systems allow for customised solutions tailored to individual needs.
2

Key Features

These valves are constructed from ductile iron, offering enhanced strength and ductility compared to traditional cast iron. This robust construction ensures the valves can withstand high pressures and temperatures without deformation or failure, making them suitable for demanding industrial applications.
3

Key Features

The ball valve design provides excellent flow control capabilities, allowing for precise adjustment of fluid flow rates. With a simple quarter-turn operation, the valve can quickly open or close, providing efficient shut-off and throttling functions. Additionally, the design minimises pressure drop across the valve, optimising system performance and reducing energy consumption.

Take a Closer Look

Valve Standards & Stuff
Body Material: Ductile Iron Epoxy Coated
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, position feedback is included as standard. The valve is fitted with switches indicating open and closed positions, giving a straightforward visual or remote confirmation of valve status.

Pricing on multiple actuated valves is assessed on a case-by-case basis, taking into account quantity, specification, and delivery requirements. Contact our sales team with your project details for a tailored quotation.

The body seal is manufactured from Grafoil with 316 stainless steel reinforcement, and the stem packing also uses Grafoil, providing a reliable seal against the process media.

Yes. If the size you require is not shown here, contact our sales team with your specification and we will confirm availability and lead time for a larger valve and actuator combination.

Yes, we can arrange direct delivery to your customer on a plain-labelled basis. Send us a copy of your delivery note and we will include it with the shipment for a seamless drop-ship service.

Yes, we offer credit accounts subject to status. Please contact our sales team with your company details to apply, and we will confirm the terms available for your account.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.
