Flanged Stainless Steel Ball Valve – PN16 / PN40 / ANSI 150, Lever Operated
| Valve Size | ISO 5211 | Stem | Torque |
|---|
| 1/2" | F03/F04 | 9 mm | 5 Nm |
| 3/4" | F03/F05 | 9 mm | 6 Nm |
| 1" | F04/F05 | 11 mm | 10 Nm |
| 1-1/4" | F04/F07 | 11 mm | 13 Nm |
| 1-1/2" | F05/F07 | 14 mm | 19 Nm |
| 2" | F05/F07 | 14 mm | 28.5 Nm |
| 2-1/2" | F07/F10 | 17 mm | 45 Nm |
| 3" | F07/F10 | 17 mm | 72 Nm |
| 4" | F10 | 22 mm | 110 Nm |
| 6" | F12 | 27 mm | 306 Nm |
| 8" | F12 | 27 mm | 430 Nm |
Note: Torque figures shown do not include any safety factor. Figures are based on clean water at 10 bar(g).

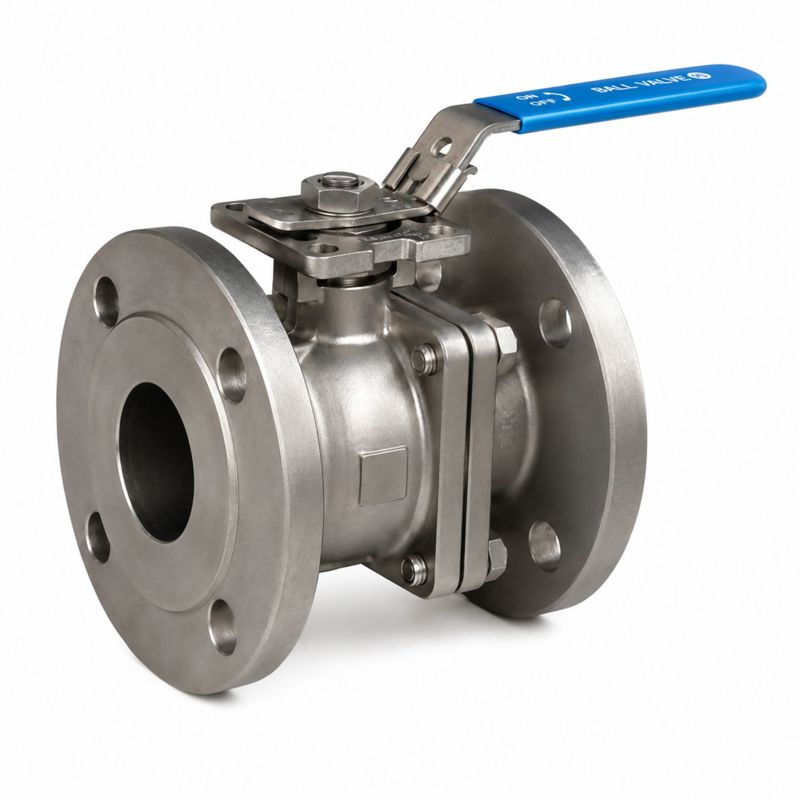

A 2 piece full bore flanged ball valve manufactured from ASTM A351 CF8M 316 stainless steel, designed for reliable isolation across a wide range of industrial applications. Available with PN16, PN40 or ANSI Class 150 flanged connections to suit different piping systems.
Key Features:
2 piece, full bore design
ASTM A351 CF8M 316 stainless steel construction and trim
PN16, PN40 & ANSI Class 150 options
Lever operated with locking device
Flanged end connections
TFM 1600® ball seats
FDA & WRAS certified TFM 1600® seat material
Grafoil/316 stainless steel body seal
Grafoil stem packing
Ta-Luft self-adjusting stem sealing
ISO 5211 direct mounting pad
Anti-static ball-stem-body design
Firesafe design
API 607 5th Edition certified
ISO 10497-5 certified
ATEX certified
Silicone free
Suitable for use with oil-based paints
