Send us your free issue GEMU valves and have them fully actuated, assembled, and ready for installation — saving you time on-site and ensuring everything is built to spec from the start.We supply and mount pneumatic or electric actuators to suit your application, along with full accessory packages including solenoid valves, switchboxes, and position indication. Options available from trusted brands such as ASCO and TopWorx, giving you reliable control and feedback straight out of the box.Every assembly is built, aligned, and tested in-house, so when it arrives, it’s ready to drop straight into your system with confidence.

Explore our range of pneumatic and electric actuators to suit your application — simple, reliable, and matched to your valve.

Actuators Available

V-Tork Actuators: Reliable, cost-effective pneumatic actuators designed for fast delivery and consistent performance.

Actuators Available

Air Torque Actuators: High-quality Italian actuators built for durability, precision, and long service life.

Actuators Available

Actreg Actuators: Robust pneumatic actuators engineered for demanding industrial applications and high torque output.

Actuators Available

JJ Actuators: Compact and efficient electric actuators offering precise control and easy installation.

Actuators Available

Hytork Actuators: Heavy-duty pneumatic actuators trusted in oil, gas, and harsh environments worldwide.

Actuators Available

Elomatic Actuators: Premium Finnish actuators known for smooth operation, high cycle life, and advanced engineering.

To specify the right actuator and process your free issue enquiry efficiently, please have the following information ready.

GEMÜ valve type code and nominal size (e.g. B22 DN25, 639 DN15, D487 DN100) — confirms series, body configuration, material, and actuator interface
Maximum operating pressure in bar — required for actuator torque calculation
Maximum differential pressure across the valve at operation
Required fail-safe position — fail-open, fail-closed, or stay-put (double-acting)
Control signal or supply type — instrument air pressure (bar), electrical voltage, or analogue signal (4–20 mA)
Hazardous area classification — Zone, category, and gas group if ATEX-certified actuator or accessories are required
Conformity requirements — FDA, EHEDG, ATEX, TA Luft, or project-specific standards

1. GET IN TOUCH AND TELL US YOUR SPEC

Let us know your valve details, actuation requirements, and any accessories needed — we’ll handle the rest.

----------------------------------

2. SEND US YOUR VALVE

Ship your free issue valve to our workshop, ready for assembly.

----------------------------------

3. WE ACTUATE AND BUILD TO SPEC

We mount the actuator, install accessories like solenoids and switchboxes, and fully test the assembly.

----------------------------------

4. SHIPPED BACK TO YOU — FAST

Your completed valve is dispatched for next working day delivery, ready to install straight away.

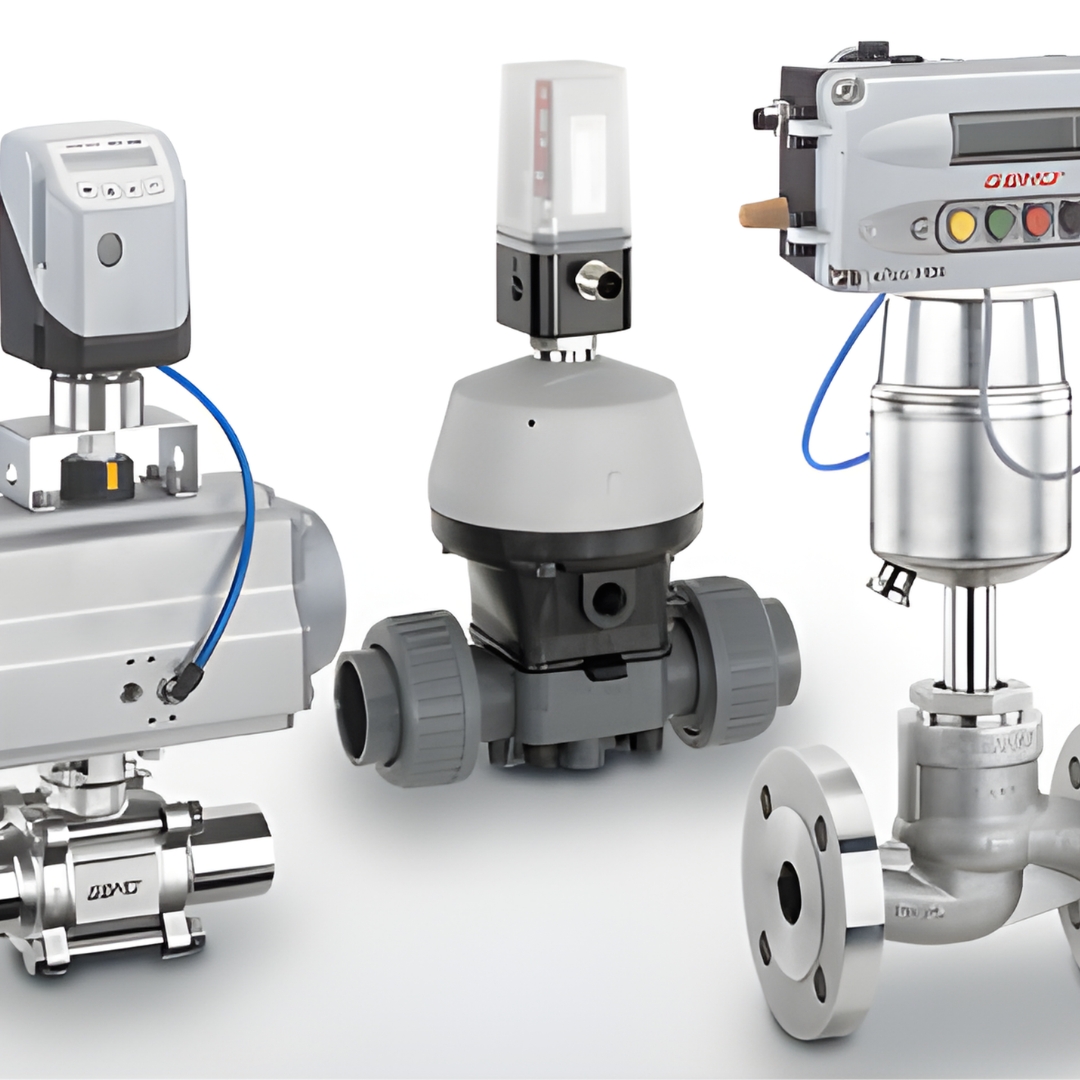

Which Gemu Valves Can We Actuate?

Metal Ball Valves — GEMÜ B22, B26, B27, B2F, BB0F

Flanged and spigot metal ball valves suitable for isolation duty across chemical, pharmaceutical, food and beverage, and general industrial applications. The B22 three-piece body (DN 8–100, to 63 bar, –40 to 180 °C) and B26 one-piece compact flange (DN 15–100, to 40 bar) both feature ISO 5211 top-flange interfaces as standard, making them directly compatible with quarter-turn pneumatic and electric actuators. The B27 three-way variant and free-shaft-end types (B2F, BB0F) are also supported. Pneumatic quarter-turn actuators are the standard choice; electric actuators available where instrument air is absent or modulating control is required. ATEX options available.

Butterfly Valves — GEMÜ D480 / D481 / D487 / D488 (Victoria®), 490, K410, K415, R470

The GEMÜ D480 Victoria® series covers nominal sizes DN 25 to 1600 in wafer, lug, and U-section body configurations to 25 bar. Body materials include epoxy-coated SG iron, cast stainless steel (1.4408 / CF8M), cast steel (ASTM A216 WCB), and cast aluminium. Seat (liner) materials cover EPDM, NBR, FKM, silicone, Hypalon, Neoprene, and Epichlorhydrine — temperature range –60 to 210 °C depending on selection. Top flange to EN ISO 5211. Pneumatic (D481) and motorized (D488) actuation available in normally closed, normally open, and double-acting configurations. Free-shaft-end types (490, K415, R470 in metal; K410 in plastic) also supported for actuator fitment.

You send us your GEMU valves, and we handle the full actuation, assembly, and testing before returning them ready for installation.

Yes, we can work with a wide range including diaphragm valves, ball valves, and other process valves.

We offer both pneumatic and electric actuators for on/off and modulating control.

Yes, we supply and install solenoid valves, switchboxes, positioners, and visual indication as required.

We use trusted brands such as ASCO for solenoids and TopWorx for switchboxes and position feedback.

Yes, we calculate and select the correct actuator based on torque requirements and application details.

Yes, all assemblies are built, aligned, and fully tested in-house to ensure reliable operation.

Yes, we can supply suitable actuator and accessory options for hygienic and clean process environments.

Yes, we can provide ATEX-rated actuators and accessories where required.

We offer fast turnaround times depending on specification and stock availability.

Yes, once complete, your actuated GEMU valve can be shipped for next working day delivery.
