Send us your free issue Gibson butterfly valves and have them fully actuated, assembled, and ready for installation — saving you time on-site and ensuring everything is built to spec from the start.We supply and mount pneumatic or electric actuators to suit your application, along with full accessory packages including solenoid valves, switchboxes, and position indication. Options available from trusted brands such as ASCO and TopWorx, giving you reliable control and feedback straight out of the box.Every assembly is built, aligned, and tested in-house, so when it arrives, it’s ready to drop straight into your system with confidence.

Explore our range of pneumatic and electric actuators to suit your application — simple, reliable, and matched to your valve.

Actuators Available

V-Tork Actuators: Reliable, cost-effective pneumatic actuators designed for fast delivery and consistent performance.

Actuators Available

Air Torque Actuators: High-quality Italian actuators built for durability, precision, and long service life.

Actuators Available

Actreg Actuators: Robust pneumatic actuators engineered for demanding industrial applications and high torque output.

Actuators Available

JJ Actuators: Compact and efficient electric actuators offering precise control and easy installation.

Actuators Available

Hytork Actuators: Heavy-duty pneumatic actuators trusted in oil, gas, and harsh environments worldwide.

Actuators Available

Elomatic Actuators: Premium Finnish actuators known for smooth operation, high cycle life, and advanced engineering.

To specify the right actuator and process your free issue enquiry efficiently, please have the following information ready. Items marked as essential are required for actuator sizing.

Ghibson valve series and model designation and nominal size (e.g. BLKI DN200, BVHD DN150, TT DN100, N501S 6") — confirms valve type, pressure class, and actuator interface
Maximum operating pressure (bar or psi) — required for actuator torque calculation
Maximum differential pressure across the valve at operation
Required fail-safe position — fail-open, fail-closed, or stay-put (double-acting)
Control signal or supply type — instrument air pressure (bar), electrical voltage, or analogue signal (4–20 mA)
Process medium and operating temperature — essential for TT series chemical duty, HD series at elevated temperatures, and any application above 120°C or in vacuum service
Hazardous area classification — Zone, category, and gas group if ATEX-certified actuator or accessories are required

1. GET IN TOUCH AND TELL US YOUR SPEC

Let us know your valve details, actuation requirements, and any accessories needed — we’ll handle the rest.

----------------------------------

2. SEND US YOUR VALVE

Ship your free issue valve to our workshop, ready for assembly.

----------------------------------

3. WE ACTUATE AND BUILD TO SPEC

We mount the actuator, install accessories like solenoids and switchboxes, and fully test the assembly.

----------------------------------

4. SHIPPED BACK TO YOU — FAST

Your completed valve is dispatched for next working day delivery, ready to install straight away.

Already own a Ghibson butterfly valve? Our free issue actuation service lets you send us your existing valve — we supply, fit, and return it fully actuated and ready to install.

Get in touch

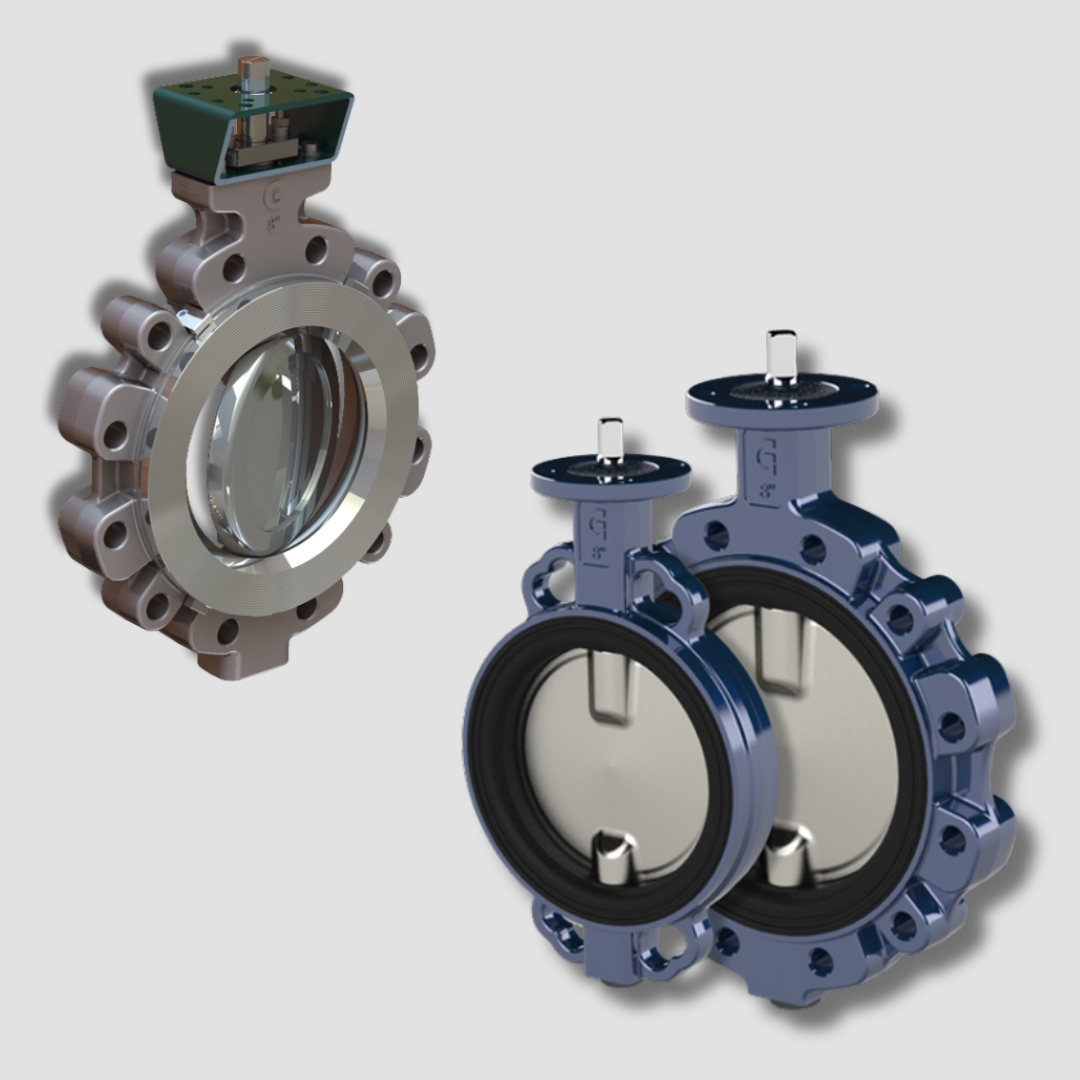

Which Ghibson Valves Can We Actuate?

KI Series (BVKI Wafer / BLKI Lug / BFKI Double Flange) — Soft Seated Butterfly Valve

Ghibson's most widely specified soft-seated butterfly valve, designed for the full range of industrial and marine applications including water treatment, HVAC, chemical service, seawater, pulp and paper, power plant cooling, and vacuum service.

KA Series (BVKA Wafer / BLKA Lug) — Higher Pressure Soft Seated Butterfly Valve

Ghibson's industrial and marine soft-seated butterfly valve rated for higher working pressures than the KI series.

KX Series (BVKX Wafer / BLKX Lug) — High Pressure Compact Soft Seated Butterfly Valve

Ghibson's highest-pressure soft-seated butterfly valve in the resilient seat range, designed specifically for demanding marine, petrochemical, and vacuum service applications.

PD Series (BVPD Wafer / BLPD Lug) — Low Pressure Soft Seated Butterfly Valve for Powder and Bulk Service

Ghibson's soft-seated butterfly valve designed specifically for low-pressure service including powder conveyance, dry bulk handling, and fluid systems where a low-profile, economical valve is required.

TT Series — PTFE Seated Butterfly Valve for Chemical and Heavy Duty Service

Ghibson's PTFE-seated butterfly valve, engineered for aggressive chemical, pharmaceutical, and heavy-duty industrial applications requiring resistance to corrosive media. The PTFE lining extends to envelop the shaft, and the double packing mechanism — an FEP-coated FKM O-ring combined with a PTFE C-ring — provides zero leakage along the shaft.

HD Series (BVHD Wafer / BLHD Lug) — High Performance Double Eccentric Butterfly Valve

Ghibson's high-performance butterfly valve, designed for demanding applications where critical sealing performance, elevated pressures, high cycle life, and fire-safe integrity are required.

N500S / N501S Series — Resilient Seated Butterfly Valve (ANSI/North American)

Ghibson's ANSI-rated resilient seated butterfly valve range for water, utilities, HVAC, and general industrial service to North American flange standards. Available from 1½" to 24" (DN 40 to DN 600) in wafer (N500S) and lug (N501S) body styles. Pressure rating 250 psi (1½"–20") and 150 psi (24"), conforming to ANSI B16.1 and ANSI B16.5 flange standards. NSF/ANSI 61 and NSF 372 certified for potable water service.

You send us your Gibson butterfly valves, and we handle the full actuation, assembly, and testing before returning them ready for installation.

Yes, we can work with wafer, lugged, and flanged butterfly valves across a wide range of sizes.

We offer pneumatic and electric actuators for both on/off and modulating control.

Yes, we supply and install solenoid valves, switchboxes, positioners, and visual indication.

We use trusted brands such as ASCO for solenoids and TopWorx for switchboxes and position feedback.

Yes, we calculate and select the correct actuator based on torque requirements, pressure, and application.

Yes, all assemblies are built, aligned, and fully tested in-house to ensure reliable operation.

Yes, we can specify actuators suitable for frequent operation and challenging environments.

Yes, we can provide ATEX-rated actuators and accessories where required.

We offer fast turnaround times depending on specification and stock availability.

Yes, once complete, your actuated Gibson butterfly valve can be shipped for next working day delivery.

Yes, all units are fully assembled and tested, ready for immediate installation.

Please feel free to request information and advice using the form below or call us on 0151 547 1221
