Send us your free issue Hattersley valves and have them fully actuated, assembled, and ready for installation — saving you time on-site and ensuring everything is built to spec from the start.We supply and mount pneumatic or electric actuators to suit your application, along with full accessory packages including solenoid valves, switchboxes, and position indication. Options available from trusted brands such as ASCO and TopWorx, giving you reliable control and feedback straight out of the box.Every assembly is built, aligned, and tested in-house, so when it arrives, it’s ready to drop straight into your system with confidence.

Explore our range of pneumatic and electric actuators to suit your application — simple, reliable, and matched to your valve.

Actuators Available

V-Tork Actuators: Reliable, cost-effective pneumatic actuators designed for fast delivery and consistent performance.

Actuators Available

Air Torque Actuators: High-quality Italian actuators built for durability, precision, and long service life.

Actuators Available

Actreg Actuators: Robust pneumatic actuators engineered for demanding industrial applications and high torque output.

Actuators Available

JJ Actuators: Compact and efficient electric actuators offering precise control and easy installation.

Actuators Available

Hytork Actuators: Heavy-duty pneumatic actuators trusted in oil, gas, and harsh environments worldwide.

Actuators Available

Elomatic Actuators: Premium Finnish actuators known for smooth operation, high cycle life, and advanced engineering.

To specify the correct actuator and process your free issue enquiry efficiently, please have the following information ready.

Hattersley figure number (e.g. Fig. 100, Fig. 113, Fig. 116) — confirms valve body type, connection type, and material
Nominal bore size (e.g. ½", ¾", 1", DN15, DN22)
Maximum system operating pressure (bar) — required for actuator torque calculation
Required fail-safe position — fail-open, fail-closed (spring-return), or double-acting
Control signal or power supply type — instrument air pressure (bar), electrical voltage (VAC/VDC), or analogue signal (0–10V / 4–20mA)
System medium and operating temperature — relevant if approaching the PN16 or PN25 pressure-temperature derating limits
BMS interface or communication protocol requirements (e.g. Modbus, 0–10V analogue)

1. GET IN TOUCH AND TELL US YOUR SPEC

Let us know your valve details, actuation requirements, and any accessories needed — we’ll handle the rest.

----------------------------------

2. SEND US YOUR VALVE

Ship your free issue valve to our workshop, ready for assembly.

----------------------------------

3. WE ACTUATE AND BUILD TO SPEC

We mount the actuator, install accessories like solenoids and switchboxes, and fully test the assembly.

----------------------------------

4. SHIPPED BACK TO YOU — FAST

Your completed valve is dispatched for next working day delivery, ready to install straight away.

Send us your Hattersley figure number, bore size, and system details and we'll confirm the right actuator package — typically within one working day.

Submit a Free Issue Enquiry

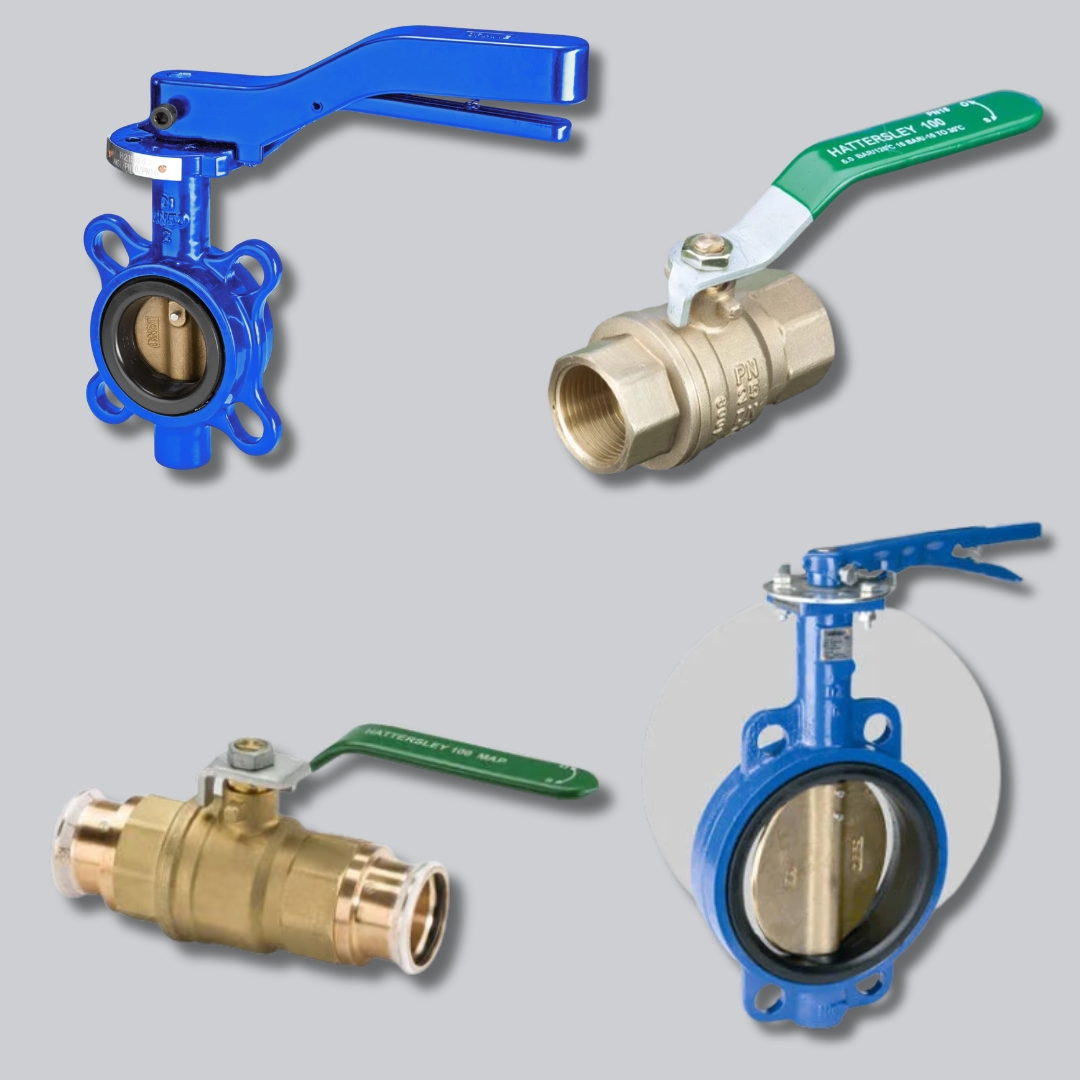

Which Hattersley Valves Can We Actuate?

Fig. 100 & 100EXT — Threaded DZR Brass Ball Valve (PN25) Full-bore, quarter-turn lever ball valve in DZR brass with stainless steel SS304 ball. Threaded ends to BS EN 10226-2 Taper (UK) or ANSI B1.20.1 (US). PTFE seats and stem seals. WRAS approved for use on hot and cold water systems to 85°C.

Fig. 100TH & 100LS — Threaded DZR Brass Ball Valve (PN25) Same body and pressure rating as Fig. 100 but supplied with T-handle operator (½" to 1") or lockshield cap (½" to 2") in place of lever. Suitable for concealed or commissioning-set applications. WRAS approved. Conforms to BS EN 13547.

Fig. 100YL — Gas-Rated Threaded DZR Brass Ball Valve (PN25) Quarter-turn threaded DZR ball valve with yellow-sleeved handle, rated for both standard and gas applications. Tested to BS EN 331:1998 for gas service up to 5 bar at -20 to 60°C; rated 25 bar non-gas to 100°C. Available ¼" to 2". NBR O-rings for gas compatibility.

Fig. 100C & 100CEXT — Compression-Ended DZR Brass Ball Valve (PN16) Quarter-turn full-bore ball valve with compression ends to BS EN 1254-2:1998. DZR brass body and chromium-plated ball. PTFE seats and stem seals. WRAS approved. Sizes 15mm, 22mm, and 28mm. Rated 16 bar to 30°C, reducing to 5 bar at 120°C.

Fig. 100CYL — Gas Compression DZR Brass Ball Valve (PN16) Compression-ended DZR ball valve rated for gas applications. Tested to BS EN 331:1998. Available in 15mm, 22mm, and 28mm. Yellow-sleeved handle for gas service identification. Rated 5 bar for gas applications at -10 to 60°C; 16 bar non-gas to 30°C.

Fig. 113 — Full Bore Bronze Ball Valve (PN40) High-pressure threaded bronze ball valve with full-bore chrome-plated DZR brass ball and PTFE seats and stem seals. Rated 40 bar from -10 to 100°C and 18 bar at 140°C. Anti-blowout stem. UK taper thread to BS EN 10226-2; US taper to ANSI B1.20.1. Available ½" to 2". Suited to higher-pressure heating, steam-adjacent, and demanding building services applications.

Fig. 116 & 116EXT — Full Bore Bronze Ball Valve (PN25) Threaded bronze body ball valve with chrome-plated DZR brass ball. Quarter-turn lever operation. PTFE seats and stem seals. Anti-blowout stem. Rated 25 bar from -10 to 100°C. Available ½" to 2". UK taper thread to BS EN 10226-2; US taper to ANSI B1.20.1. The 116EXT variant features an extended stem for insulated pipe applications.

You send us your Hattersley valves, and we handle the full actuation, assembly, and testing before returning them ready for installation.

Yes, we can work with a wide range including ball valves, gate valves, and other flow control valves.

We offer pneumatic and electric actuators for both on/off and modulating control applications.

Yes, we can include solenoid valves, switchboxes, positioners, and visual indication as part of the build.

We supply trusted brands such as ASCO for solenoids and TopWorx for switchboxes and feedback systems.

Yes, we select and size the correct actuator based on torque requirements and application details.

Yes, all assemblies are built, aligned, and fully tested in-house to ensure reliable performance.

Yes, we can provide ATEX-rated actuators and accessories where required.

We offer fast turnaround times, especially where stock is available.

Yes, once complete, your actuated Hattersley valve can be shipped for next working day delivery.

Yes, all units are fully assembled and tested, ready for immediate installation.

We’ll need valve size, pressure, application details, control type, and any accessory requirements.
