Send us your free issue Oliver valves and have them fully actuated, assembled, and ready for installation — saving you time on-site and ensuring everything is built to spec from the start.We supply and mount pneumatic or electric actuators to suit your application, along with full accessory packages including solenoid valves, switchboxes, and position indication. Options available from trusted brands such as ASCO and TopWorx, giving you reliable control and feedback straight out of the box.Every assembly is built, aligned, and tested in-house, so when it arrives, it’s ready to drop straight into your system with confidence.

Explore our range of pneumatic and electric actuators to suit your application — simple, reliable, and matched to your valve.

Actuators Available

V-Tork Actuators: Reliable, cost-effective pneumatic actuators designed for fast delivery and consistent performance.

Actuators Available

Air Torque Actuators: High-quality Italian actuators built for durability, precision, and long service life.

Actuators Available

Actreg Actuators: Robust pneumatic actuators engineered for demanding industrial applications and high torque output.

Actuators Available

JJ Actuators: Compact and efficient electric actuators offering precise control and easy installation.

Actuators Available

Hytork Actuators: Heavy-duty pneumatic actuators trusted in oil, gas, and harsh environments worldwide.

Actuators Available

Elomatic Actuators: Premium Finnish actuators known for smooth operation, high cycle life, and advanced engineering.

To specify the right actuator and process your free issue enquiry efficiently, please have the following information ready. Items marked as essential are required for actuator sizing.

Oliver Valve part number (e.g. B6FX50, B10MX38, B6BLX50) — confirms series, bore size, connection type, and body material
Maximum operating pressure in psi — required for actuator torque calculation
Maximum differential pressure across the ball at operation
Required fail-safe position — fail-open or fail-closed (spring-return) or double-acting
Control signal or supply type — instrument air pressure (bar), electrical voltage, or analogue signal (4–20 mA)
Hazardous area classification — Zone, category, and gas group if ATEX-certified actuator or accessories are required
Required certifications — NACE MR-01-75, Firesafe (BS6755 Pt2 / API 607 Rev4), or project-specific requirements

1. GET IN TOUCH AND TELL US YOUR SPEC

Let us know your valve details, actuation requirements, and any accessories needed — we’ll handle the rest.

----------------------------------

2. SEND US YOUR VALVE

Ship your free issue valve to our workshop, ready for assembly.

----------------------------------

3. WE ACTUATE AND BUILD TO SPEC

We mount the actuator, install accessories like solenoids and switchboxes, and fully test the assembly.

----------------------------------

4. SHIPPED BACK TO YOU — FAST

Your completed valve is dispatched for next working day delivery, ready to install straight away.

Send us your valve part number and operating details and we'll confirm the right actuator solution — usually within one working day.

Submit a Free Issue Enquiry

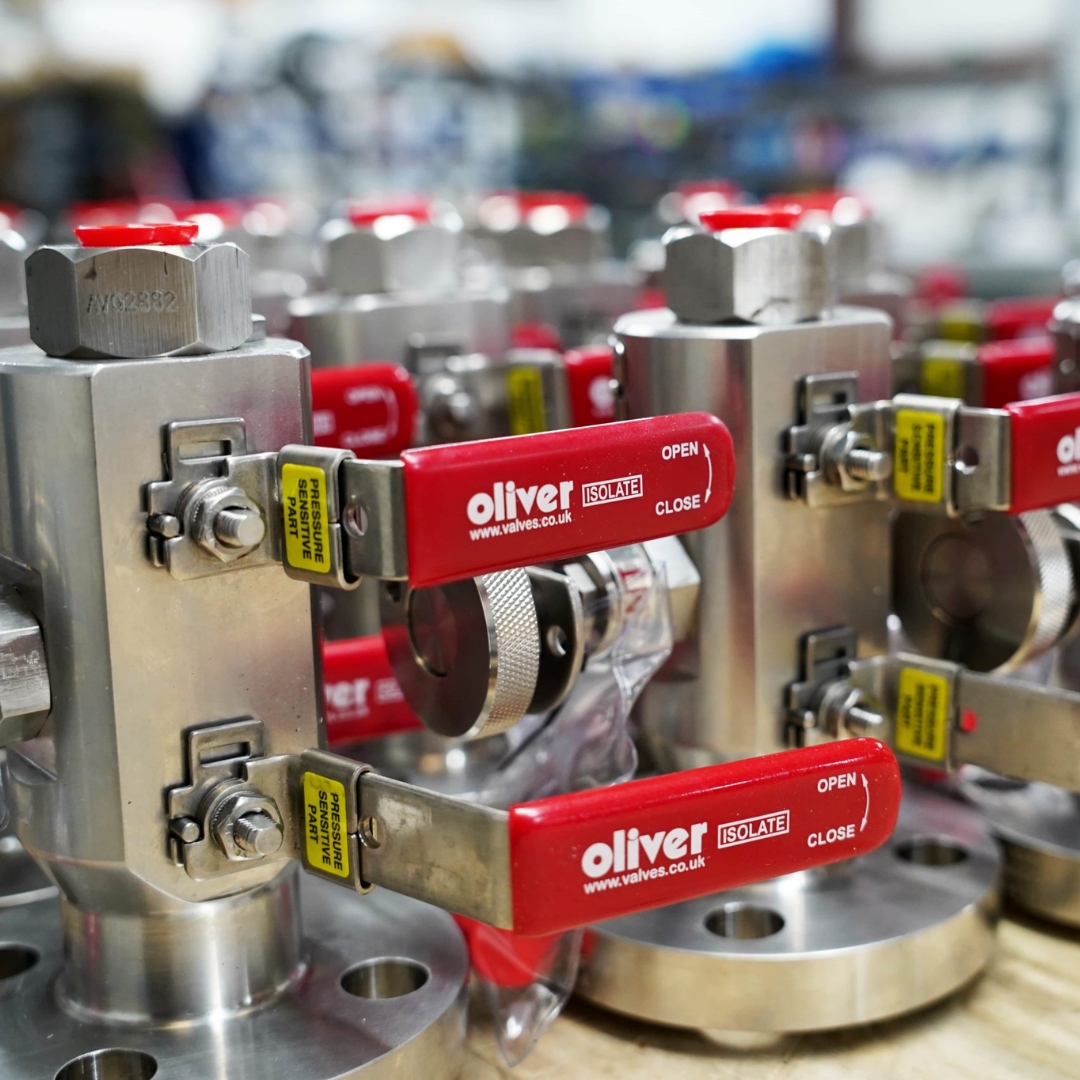

Which Oliver Valves Can We Actuate?

B6F — Female × Female Ball Valve (6,000 psi) Single isolating ball valve with female-to-female NPT connections as standard. Available from ¼" to 1" with 10mm, 14mm, and 20mm bore options. Seats in PTFE/PVDF (to 120°C) or PTFE/KEL-F and PEEK (to 200°C). Optional connections include BSP Taper, BSP Parallel, and Socket Weld. Part numbers: B6FX25, B6FX38, B6FX50, B6FY75, B6FZ10.

B6M — Male × Female Ball Valve (6,000 psi) Single isolating ball valve in male-to-female configuration. Available from ¼" to 1". Butt Weld and Male Socket Weld connections available in addition to NPT and BSP options. Firesafe option (FS) to BS6755 Pt2 / API 607 Rev4 available. Part numbers: B6MX25, B6MX38, B6MX50, B6MY75, B6MZ10.

B6BI — Bilok Twin-Ferrule Ball Valve (6,000 psi) Single isolating ball valve with twin ferrule 'Bilok' connections. Available in metric OD sizes (6mm, 10mm, 12mm) and imperial sizes (¼", 3/8", ½"). Particularly suited to instrument tubing installations. Part numbers: B6BIX6MM, B6BIX10MM, B6BIX12MM, B6BIX25, B6BIX38, B6BIX50.

B6BL — 3-Way Diversion Ball Valve, Bottom Entry L-Port (6,000 psi) Three-way flow diverting ball valve with bottom entry, L-port configuration operating through 180 degrees. Precision-machined 10mm L-pattern bore with PTFE spindle and body seals. Anti-blowout spindle fitted as standard. Available in ¼", 3/8", and ½". Part numbers: B6BLX25, B6BLX38, B6BLX50.

B6SL — 3-Way Diversion Ball Valve, Side Entry L-Port (6,000 psi) Three-way flow diverting ball valve with side entry, L-port configuration operating through 90 degrees. Same pressure rating and seal specification as the B6BL but with different actuation travel requirements. Available in ¼", 3/8", and ½". Part numbers: B6SLX25, B6SLX38, B6SLX50.

B10F — Female × Female Ball Valve (10,000 psi) High-pressure single isolating ball valve in female-to-female configuration. 10mm bore, available in ¼", 3/8", and ½". PTFE/KEL-F seats rated to 200°C. Socket Weld connection available. Part numbers: B10FX25, B10FX38, B10FX50.

B10M — Male × Female Ball Valve (10,000 psi) High-pressure single isolating ball valve in male-to-female configuration. 10mm bore, ¼" to ½". Available with Male Socket Weld and Butt Weld connections. Firesafe option available (note: Firesafe certification applies at 6,000 psi operating conditions). Part numbers: B10MX25, B10MX38, B10MX50.

OTS Compact Ball Valve & Twinsafe (ASME Class 150–2500) Bi-directional trunnion ball valves with swivel flange connections. NPS 1" to 8" (DN25–DN200). Designed to API 6D, fire tested to API 607, API 6FA, and ISO 10497. PEEK seat material. ISO 5211 F10 actuator mounting interface supplied as standard, making these valves directly compatible with automated actuation. All wetted materials NACE MR-01-75 / ISO 15156 compliant. Body and trim options include Alloy Steel, Stainless Steel, Duplex Steel, and Nickel Alloys.

You send us your Oliver valves, and we handle the full actuation, assembly, and testing before returning them ready for installation.

Yes, we can work with a wide range of Oliver valves including ball valves, needle valves, and instrumentation valves.

We offer pneumatic and electric actuators to suit both on/off and modulating control applications.

Yes, we can include full accessory packages including solenoid valves, switchboxes, and position indication.

We typically supply trusted brands such as ASCO for solenoids and TopWorx for switchboxes.

Yes, we size and select the correct actuator based on torque requirements and your application details.

Yes, every assembly is built, aligned, and fully tested in-house to ensure reliable operation.

Yes, we can supply ATEX-rated actuators and accessories where required.

We offer fast turnaround times, especially where stock is available, helping reduce project delays.

Yes, once complete, your actuated Oliver valve can be shipped for next working day delivery.

Yes, all assemblies are delivered fully built and tested, ready to drop straight into your system.

We’ll need valve details such as size, pressure, application, control type, and any accessory requirements.
