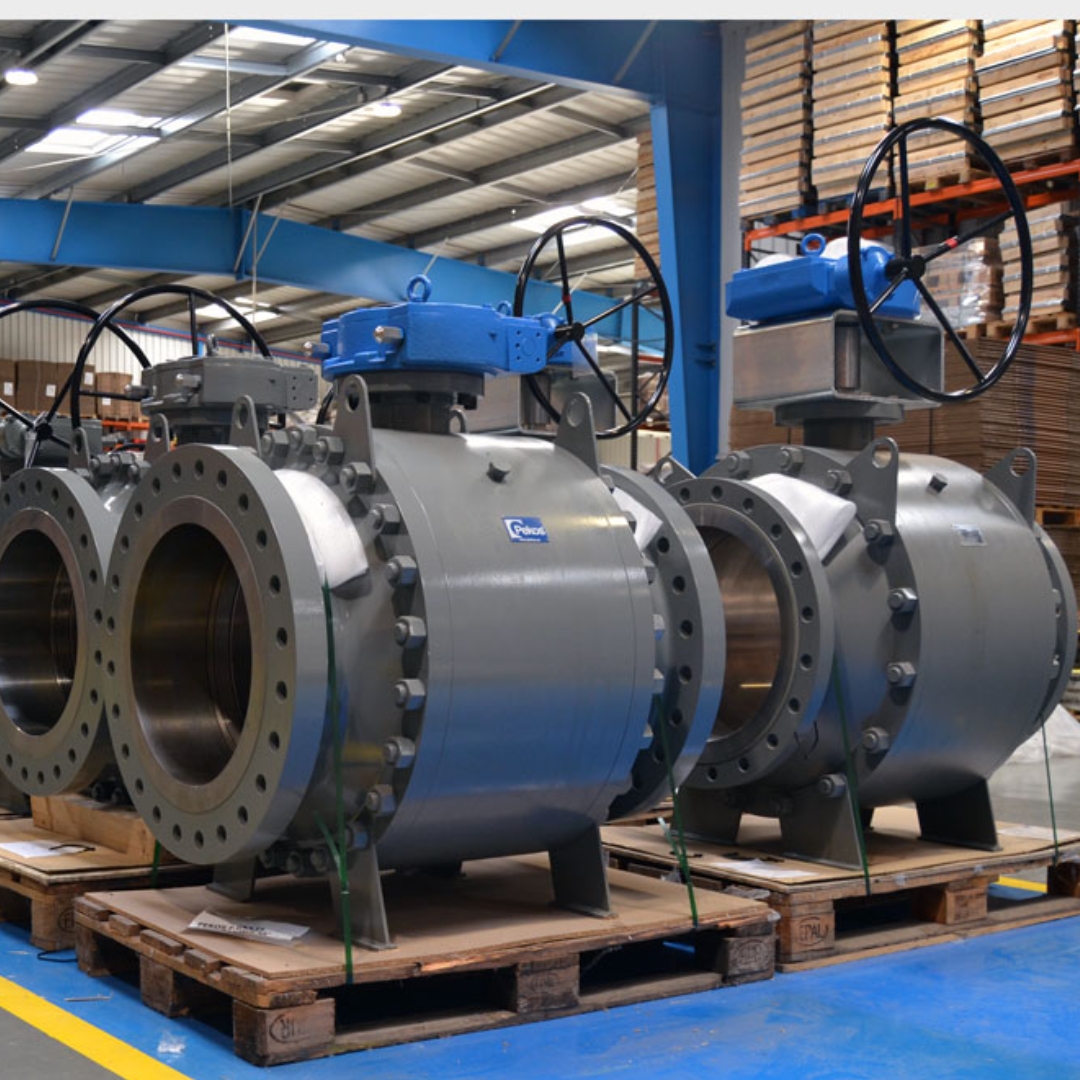

Our Free Issue Pekos Ball Valve service provides customers with a cost-effective way to automate their own Pekos valves without the need to purchase new stock. Pekos is a globally recognised manufacturer of high-quality ball valves, widely used across industries such as oil & gas, chemical processing, water treatment, and power generation. By combining Pekos’ robust valve design with our professional actuation expertise, we deliver reliable and efficient automated valve packages built around your existing equipment.

Key features and benefits of this service.

Key Features

Customers can benefit from the durability and performance of their existing Pekos ball valves, combined with professional actuation tailored to their process.

Key Features

Every free issue valve is correctly aligned, fitted with the appropriate actuator, and fully tested to guarantee smooth, reliable operation.

Key Features

By automating valves already on site, customers avoid the expense of purchasing new assemblies while reducing downtime and streamlining project delivery.

To specify the right actuator and process your free issue enquiry efficiently, please have the following information ready. Items marked as essential are required for actuator sizing.

Pekos valve figure code (e.g. Z14 TTTGV, Z34 SSSGV, ZRB34, ZGS14, K809, ZFGOSU) — confirms body design, bore type, end connection, seat material, and available actuator mounting interface
Maximum operating pressure in psi — required for actuator torque calculation
Maximum differential pressure across the ball at operation
Required fail-safe position — fail-open or fail-closed (spring-return) or double-acting
Control signal or supply type — instrument air pressure (bar), electrical voltage, or analogue signal (4–20 mA)
Hazardous area classification — Zone, category, and gas group if ATEX-certified actuator or accessories are required
Required certifications — NACE MR-01-75, Firesafe (BS6755 Pt2 / API 607 Rev4), or project-specific requirements

1. GET IN TOUCH AND TELL US YOUR SPEC

Let us know your valve details, actuation requirements, and any accessories needed — we’ll handle the rest.

----------------------------------

2. SEND US YOUR VALVE

Ship your free issue valve to our workshop, ready for assembly.

----------------------------------

3. WE ACTUATE AND BUILD TO SPEC

We mount the actuator, install accessories like solenoids and switchboxes, and fully test the assembly.

----------------------------------

4. SHIPPED BACK TO YOU — FAST

Your completed valve is dispatched for next working day delivery, ready to install straight away.

Send us your Pekos ball valves and we’ll automate them with the right pneumatic or electric actuator. Our team ensures perfect mounting, alignment, and functional testing, so your trusted Pekos valves deliver the same reliability—now with the efficiency of automation.

Explore Pekos Ball Valves

Which Pekos Valves Can We Actuate?

Fig Z14 / Z16 / Z19 — Full Bore Floating Ball Valve (ANSI Class 150)

Side-entry floating ball valve in 1-piece or 2-piece body construction. Full bore. Sizes ½" to 12" (DN15–DN300). ANSI Class 150. End connections to ASME B16.5 flanged (RF or RTJ), BSPP, BSPT, NPT, socket weld, and butt weld.

Fig Z34 / Z36 / Z39 — Full Bore Floating Ball Valve (ANSI Class 300)

As Z14 series but rated to ANSI Class 300. Sizes ½" to 12" (DN15–DN300) in full bore. End connections as per Z14 range. Available in carbon steel A216 WCC and stainless A351 CF8M.

Fig Z64 / Z66 — Full Bore Floating Ball Valve (ANSI Class 600)

Floating ball valve rated to ANSI Class 600. Full bore sizes ½" to 2" (DN15–DN50) floating configuration; guided ball option (ZG64/ZG66) from DN40 (1½") at Class 600.

Fig ZRB14 / ZRB34 / ZRB16 / ZRB36 — Reduced Bore Side-Entry Floating Ball Valve (Class 150 & 300)

Reduced bore side-entry floating ball valve. Sizes ½"×¼" to 12"×10" (standard reduced bore step-down pairings).

Fig ZGS14 / ZGS34 / ZGS16 / ZGS36 — Full Trunnion 2-Piece Ball Valve (Class 150, 300, 400, 600, 800)

Two-piece split body full trunnion mounted ball valve. Full bore. Sizes 2" to 12" (DN50–DN300) in Class 150 and 300; Class 400, 600, and 800 available in smaller bore ranges.

Fig K809 / KRB809 / K806 / KRB806 — 3-Piece Forged Steel Ball Valve (Class 800 & 600)

Three-piece bolted body forged steel ball valve. Full bore (K809) and reduced bore (KRB809) for Class 800; full bore (K806) and reduced bore (KRB806) for Class 600. Sizes ¼" to 2" (DN8–DN50).

DIN Series — Floating & Guided Ball Valve (PN16 / PN25 / PN40 / PN100)

Full DIN-rated range in floating and guided construction. Full bore sizes DN15 to DN300 in PN16 and PN25/40; reduced bore and guided versions available.

Cryogenic Ball Valves — Floating & Trunnion (Fig ZFOSU / ZFGOSU / ZFGKOSU)

Specifically designed for cryogenic service to BS 6364 and MESC 77/306. Floating and full trunnion configurations in split body design. Full bore and reduced bore.

Metal-Seated Ball Valves — Trunnion (Abrasive & High Temperature Service)

Pekos trunnion-mounted metal-seated ball valve for abrasive media and elevated temperature service. Ball and seats coated with Tungsten Carbide or Chrome Carbide for resistance to wearing and abrasive process streams.

3-Way and 4-Way Multiport Ball Valves (DIN PN16/25/40 / ANSI Class 150–600)

Three-way and four-way floating ball valves in standard construction materials A351 CF8M stainless steel with PTFE seats. DIN range: PN25/40 sizes DN15–DN100; ANSI range: Class 150–300 available. T-port, L-port, and other port configurations. 3-way versions sized ½" to 4" (DN15–DN100).

People use your Free Issue Pekos Ball Valve Service because Pekos is a highly respected and popular brand within the valve industry, known for producing durable and versatile ball valves that are trusted across a wide range of applications. Many businesses already have Pekos valves installed in their systems, and instead of sourcing entirely new actuated valves, they can save both time and cost by sending their existing stock to you for automation.

This approach allows customers to keep using the valves they know and trust, while gaining the efficiency and convenience of automated control. By pairing Pekos’ reliable valve design with your professional actuation expertise, customers get the best of both worlds—proven valve performance with the added benefits of smooth, accurate actuation.

Your service is particularly valuable because it ensures that Pekos ball valves, already recognised globally for their quality, are integrated seamlessly with either pneumatic or electric actuation. This provides long-term reliability, reduced manual intervention, and improved process efficiency for industries where consistency and safety are critical.

Industries that use your Free Issue Pekos Ball Valve Service include:

Oil & Gas – Automating Pekos valves for flow isolation and control in pipelines, refineries, and offshore platforms.
Chemical & Petrochemical – Handling aggressive, high-pressure, and hazardous process media with reliable actuation.
Power Generation – Supporting cooling water systems, steam control, and fuel handling operations.
Marine & Shipbuilding – Providing actuated solutions for ballast, bilge, and fuel transfer systems.
Food & Beverage – Enhancing process efficiency and safety where hygienic and reliable flow control is essential.

This service allows you to send us your existing Pekos ball valves, which we then automate with pneumatic or electric actuators.

You save on costs by reusing your Pekos valves while still getting a fully tested, reliable actuated package.

Yes, we can work with a wide range of Pekos ball valve designs, including threaded, flanged, and welded ends.

We fit both pneumatic and electric actuators, chosen to suit your process requirements.

We manufacture or source custom brackets and couplings to guarantee perfect alignment between valve and actuator.

Yes, every Free Issue Pekos ball valve is function-tested to ensure smooth operation and reliability.

Typically 5–10 working days, depending on actuator stock and any custom mounting required.

Yes, provided the valves are still in good working condition, we can automate both new and used Pekos valves.

Please provide valve size, pressure rating, and application details so we can select the most suitable actuator.

Industries such as oil & gas, chemical processing, power generation, marine, and water treatment regularly use this service.

Yes, automation reduces manual operation, improves accuracy, and increases process safety.

Yes, we can supply replacement actuators, mounting kits, and ongoing technical support.

Please feel free to request information and advice using the form below or call us on 0151 547 1221
