All butterfly valves are rigorously tested to meet ever-changing industry requirements with our research and development team constantly creating design improvements to future proof the next generation. Typical applications include HVAC, Power Generation and Hydro Carbon Processing. All of our actuated butterfly valves can be set up in either the Fail Safe Close/Open Position with several manual override features across the range. Control and Indication add-ons can be specified at the time of order. Each individual actuator retains its full traceability all the way back to the factory with a unique serial number. All assemblies performed by Actuation Valve in house also detail and cross reference this serial number with accompanying valves and accessories in a build sheet format.

Shop Help Me

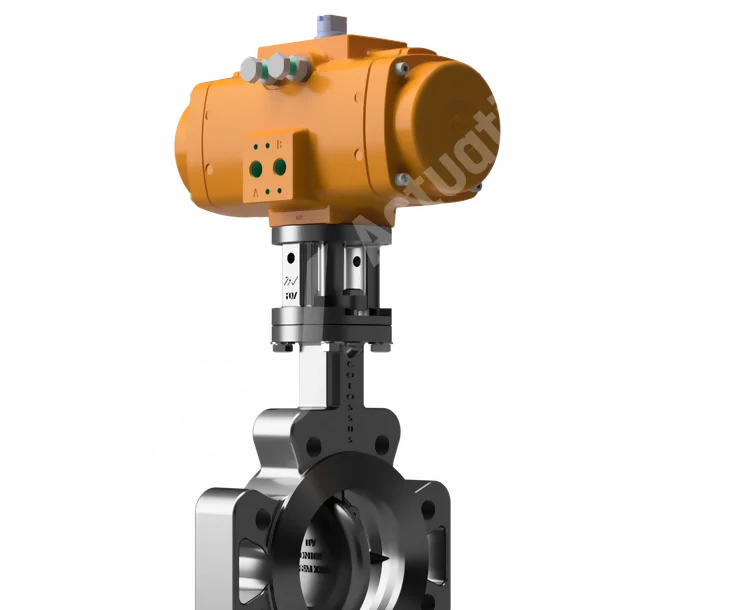

Key features and benefits of the Colossus Elomatic Fully Lugged Actuated High Performance Butterfly Valves.

Key Features

Lug-style valves have threaded inserts at both sides of the body that allow them to be installed with only bolts and no nuts. The valve is placed between two flanges, one on each side. This setup permits either piece of piping disconnected without affecting the complete process.

Key Features

Double offset butterfly valves are designed for use in exceptionally harsh conditions with critical shutoff isolation and throttling control applications. The Colossus is available in Metal Seated or PTFE seated designs depending on the application needs of the End User.

Key Features

The EL-O-Matic F Series are available with a SIL 3 rating approval from TÜV, which means that this actuator can be used in safety critical systems without having to consider the consequences if it fails.

	A	B	C	A	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA	SR/DA
2"	69.00	272.00	217.00	58.00	260.00	192.00	TBA	43.00
2.5"	69.00	291.00	247.00	69.00	284.00	217.00	TBA	46.50
3"	75.00	325.00	304.00	69.00	299.00	247.00	TBA	47.00
4"	87.00	352.00	362.00	69.00	320.00	247.00	TBA	52.00
5"	109.000	421.00	385.00	87.00	383.00	265.00	TBA	56.00
6"	132.0	498.00	476.00	109.00	441.00	284.00	TBA	56.00
8"	130.00	582.00	732.00	131.00	548.00	400.00	TBA	63.00
10"	130.00	637.00	732.00	131.00	603.00	400.00	TBA	71.00
12"	360.00	726.00	877.00	316.00	674.00	462.00	TBA	78.00
14"	360.00	710.00	877.00	316.00	658.00	462.00	TBA	92.00
16"	410.00	789.00	959.00	350.00	754.00	550.00	TBA	102.00
18"	410.00	814.00	959.00	350.00	779.00	550.00	TBA	114.00
20"	528.00	1028.00	950.00	400.00	849.00	649.00	TBA	127.00
24"	528.00	1088.00	950.00	400.00	909.00	649.00	TBA	154.00

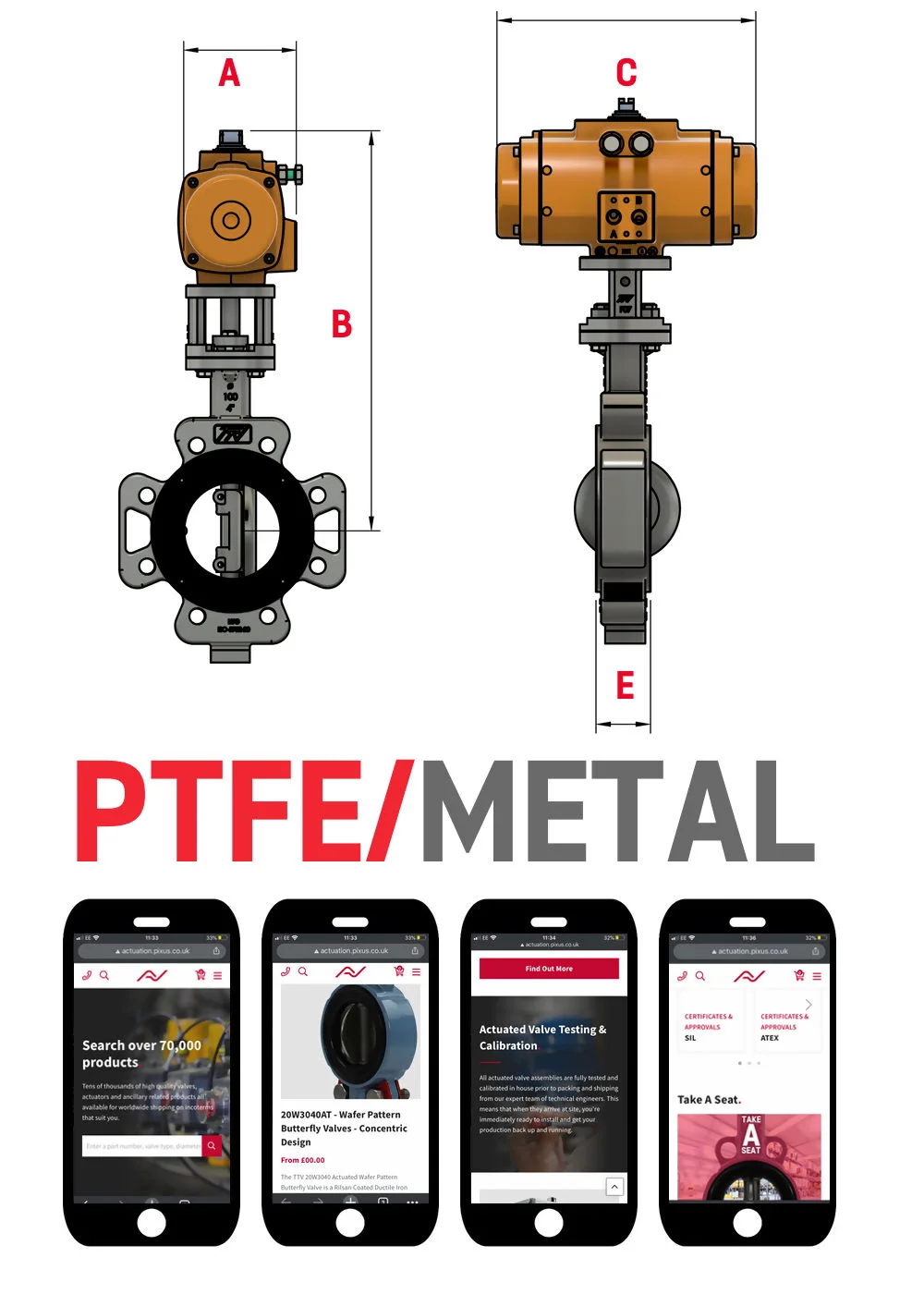

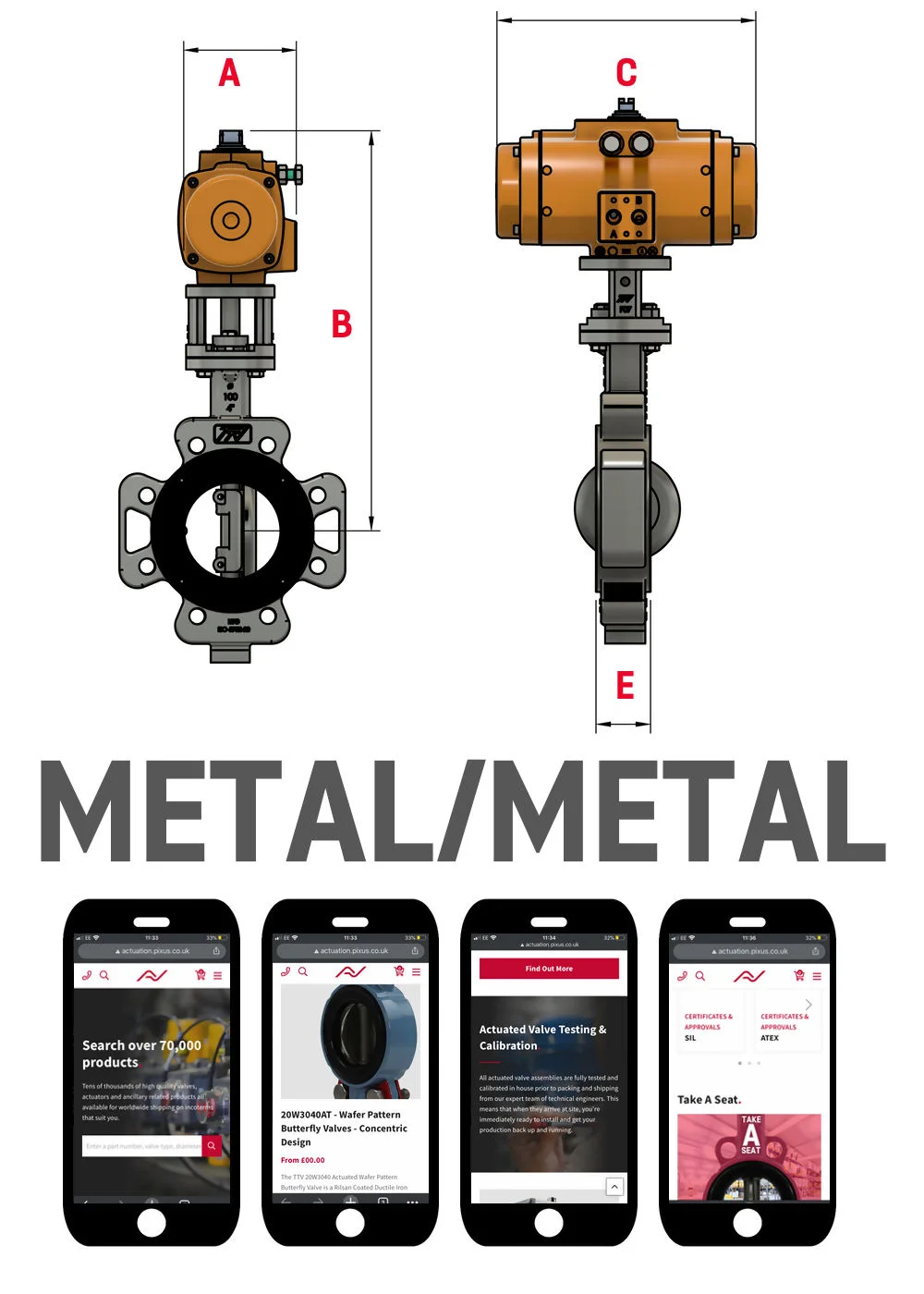

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

DRAWINGS & SCHEMATICS

ZIP
Size 0100

DRAWINGS & SCHEMATICS

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

	A	B	C	A	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA	SR/DA
2"	84.50	245.00	153.50	84.50	245.00	153.50	TBA	43.00
2.5"	84.50	261.00	153.50	84.50	261.00	153.50	TBA	46.50
3"	93.00	283.00	203.50	84.50	266.00	153.50	TBA	47.00
4"	106.50	304.00	241.00	93.00	291.00	203.50	TBA	52.00
5"	108.50	334.00	259.00	106.00	322.00	241.00	TBA	56.00
6"	135.00	381.00	304.00	108.50	353.00	259.00	TBA	56.00
8"	166.00	422.00	394.50	136.00	390.00	304.00	TBA	63.00
10"	181.00	481.00	422.50	166.00	432.00	394.50	TBA	71.00
12"	221.50	543.00	528.00	181.00	474.00	422.50	TBA	78.00
14"	262.00	628.50	605.00	200.00	550.50	474.00	TBA	92.00
16"	262.00	648.50	605.00	221.50	595.00	528.00	TBA	102.00
18"	330.00	720.00	710.00	262.00	688.50	605.00	TBA	114.00
20"	330.00	770.00	710.00	330.00	770.00	710.00	TBA	127.00
24"	528.00	1038.00	950.00	371.00	873.00	812.00	TBA	154.00

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.


Body Material:	Stainless Steel CF8M, Cast/Carbon Steel A216 WCB
Disc Materials:	Stainless steel (CF-8M)
Shaft Materials:	Stainless Steel F-316
Design:	API 609, ASME B16.34, MSS SP-67, EN 593, Nace MR 0175
Inspection & Testing:	ISO 5208 / API 598
Connections:	ISO 5752 series 20, BS 5155 series 4, DIN PN 10/16/25, ANSI 150/300
Seat Materials:	Soft seat: R-PTFE (-50ºC / +220ºC), Hard seat: F-316L (-100ºC / +500ºC)
Applications:	Chemical, Vacuum, LPG/LNG, Hydrocarbons, Steam, Gas, Bitumen, Thermal Oil

The valve is suitable for almost all chemical applications. Send in an email of pick up the phone. One of our super tech guys will check it over for you.

We can. The final is product customizable at the bottom of the page! Have a look down there or get us on 0151 547 1221. We have everything from Safe Area to ATEX in multiple voltages.

It certainly does. All of our PTFE butterfly valves come complete with a full set of operations and maintenance manuals from the manufacturer.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boxes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

Metal - Metal Seat complies with BS 6755 Part 2 or API 6FA/607 (Fire Safety). Valve only.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Job done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.
