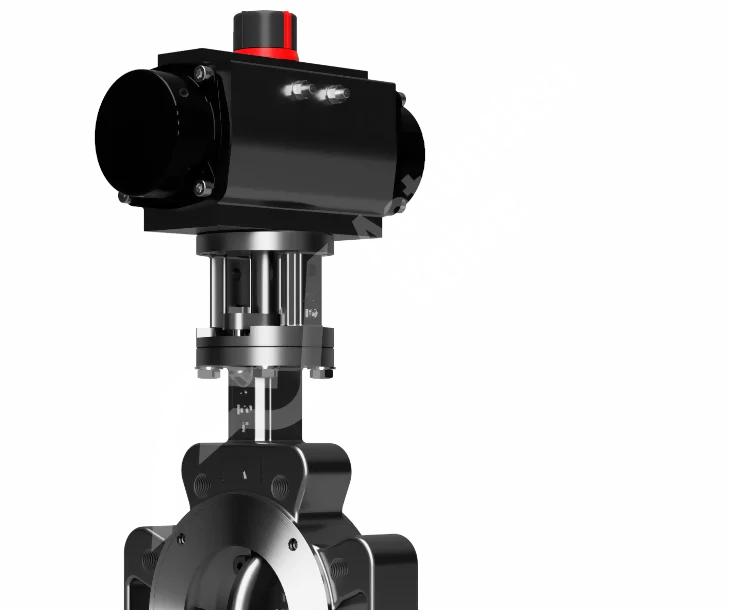

Double Offset Actreg Actuated Butterfly Valves

The quarter turn action offers quick opening or closing with ease of operation and the valve has good flow control characteristics. In the wide open position, the only obstruction to flow is that due to the thickness of the disk, so the pressure drop across the valve is small. Actuation Valve & Control is a world-class manufacturer of actuated butterfly valves, with in house engineering and testing. We offer Direct Mounted Assemblies as well custom build bracket/shaft arrangements to ensure any application can be met.

Key Features

Key features and benefits of the Colossus Actreg Fully Lugged Actuated High Performance Butterfly Valves.

Key Features

Utilising dual flange drillings and offering multiple drive inserts the Actreg pneumatic actuator allows for greater versatility when mounting to ball and butterfly valves. In particular our TTV Butterfly Valve. This eliminates requirements for additional mounting brackets reducing costs, weight and lead time.

Key Features

Position indicators available for the Actreg actuator include direct mounting puk sensors such as P&F, IFM and other manufactures depending on end user approved vendor lists (AVL’s). Position monitoring switch boxes and sensors are also available from stock for quick assembly.

Key Features

TTV Butterfly Valves feature an innovative disc design that greatly increases Cv values resulting in lower energy costs and improved efficiency with no sacrifice in performance or durability compared to other manufacturers valves on the market.

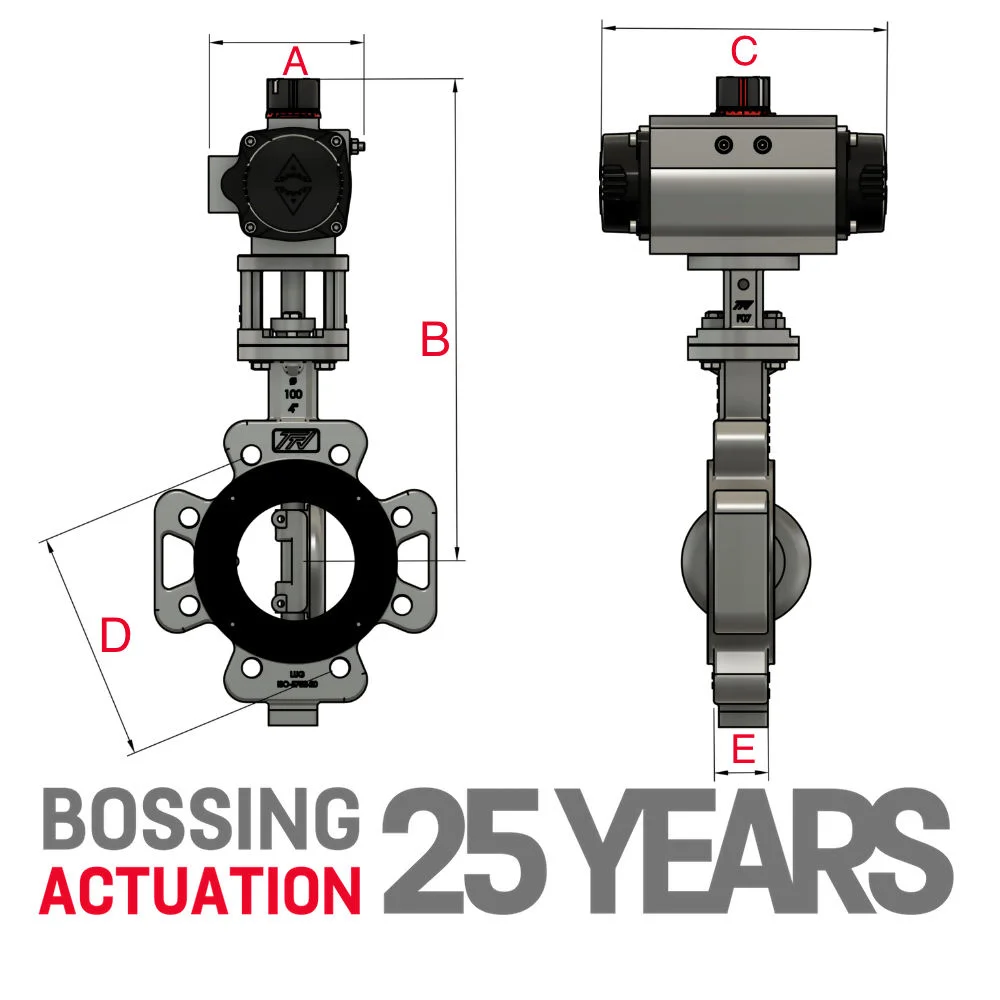

High Performance Metal-Metal Valves

2" 84.50 258.00 153.50 84.50 240.00 153.50 43.00
2.5" 93.00 270.00 203.50 84.50 252.00 153.50 46.50
3" 106.50 291.00 241.00 93.00 278.00 203.50 47.00
4" 108.50 312.00 259.00 106.00 299.00 241.00 52.00
5" 135.00 380.00 304.00 108.50 354.00 259.00 56.00
6" 166.00 452.70 394.50 136.00 434.00 304.00 56.00
8" 181.00 525.70 422.50 166.00 482.70 394.50 63.00
10" 221.50 580.70 528.00 181.00 580.70 422.50 71.00
12" 262.00 680.70 605.00 200.00 617.70 474.00 78.00
14" 262.00 664.70 605.00 221.50 610.70 528.00 92.00
16" 330.00 TBA 710.00 262.00 645.70 605.00 102.00
18" TBA TBA TBA TBA TBA 710.00 114.00

Colossus Double Offset Butterfly Valve

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Actreg Actuator Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Valve Standards & Stuff

Body Material: Stainless Steel CF8M, Cast/Carbon Steel A216 WCB
Disc Materials: Stainless steel (CF-8M)
Shaft Materials: Stainless Steel F-316
Design: API 609, ASME B16.34, MSS SP-67, EN 593, Nace MR 0175
Inspection & Testing: ISO 5208 / API 598
Connections: ISO 5752 series 20, BS 5155 series 4, DIN PN 10/16/25, ANSI 150/300
Seat Materials: Soft seat: R-PTFE (-50ºC / +220ºC), Hard seat: F-316L (-100ºC / +500ºC)
Applications: Chemical, Vacuum, LPG/LNG, Hydrocarbons, Steam, Gas, Bitumen, Thermal Oil

Frequent Interrogation

The valve is suitable for almost all chemical applications. Send in an email of pick up the phone. One of our super tech guys will check it over for you.

We can. The final is product customizable at the bottom of the page! Have a look down there or get us on 0151 547 1221. We have everything from Safe Area to ATEX in multiple voltages.

It certainly does. All of our PTFE butterfly valves come complete with a full set of operations and maintenance manuals from the manufacturer.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boxes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

Metal - Metal Seat complies with BS 6755 Part 2 or API 6FA/607 (Fire Safety). Valve only.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Job done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

TopWorx Limit Switch Box

TopWorx Valve Limit Switch Box available for this product. Enable remote Valve monitoring of your High Performance Butterfly Valves with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Pneumatic Actuator prior to shipping.
