Heavy Duty Full Bore Rotork Carbon Steel Actuated Valves

The AV-L8000FCROM and AV-L8200FCROM 3 piece full bore heavy duty actuated ball offer a more cost effective option to that of the stainless steel valve for use in less corrosive environments. Suitable for working pressures up 2000 PSI (1” and below), the AV-L8000FC heavy duty ball valves off superior performance to that of our standard range of Valves. Designed to firesafe standards API 607 5th ED 2005 (Valve only) this heavily certified valve is reliable and robust. Options inlcude 50% stainless steel filled seats and V-Ball modulation. Silcone seats for oil based paint applications and inspection testing is to MSS SP-110. The Rotork ROM electric actuator is designed to reduce the total cost of ownership over that of lower quality alternatives. Providing great efficiency, it offers less downtime and maintenance requirements which in turn reduces operating costs for processing plants.

Key Features

Key features and benefits of AV-L8000FCROM & AV-L8200FCROM Actuated Ball Valves.
1

Key Features

Rotork has over 60 years of experience in flow control and electric actuator manufacturing. This is reflected by its leadership within the market, with Rom's technology being recognised as a cutting-edge offering at forefronts for Rotork’s innovation process.
2

Key Features

C5-M protection as standard is the perfect choice for use in environments that are corrosive or otherwise harsh on equipment. With corrosion protection, it can withstand extreme environmental conditions while still delivering fast operation speeds and long service life.
3

Key Features

The 3-piece body design of the isolation ball valve isolates maintenance work to where it needs to be, making preventive care easy and efficient. Drop out section allows for quick seal replacements without compromising your production schedule.

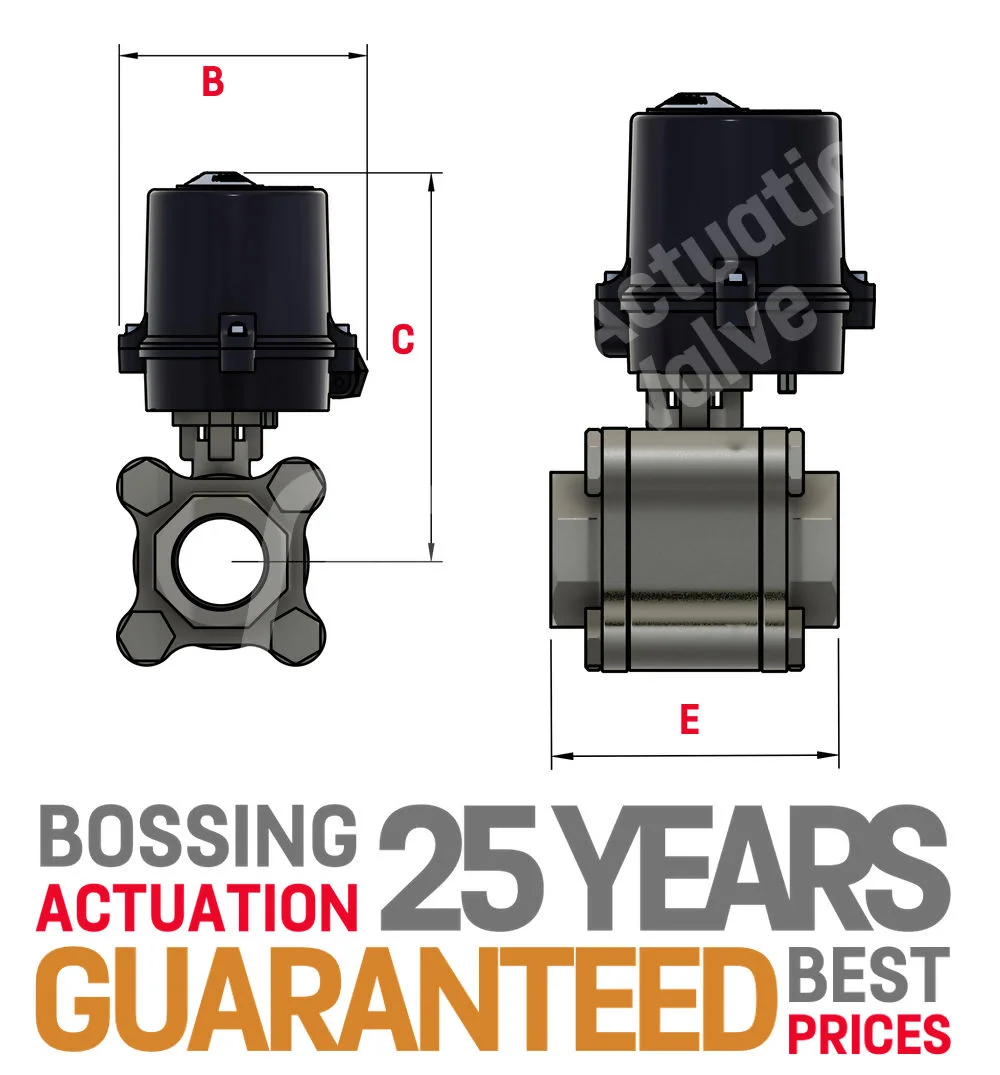

Screwed/Socket Weld Technical Stuff

B C E Model
1/4" 114.00 179.00 75.00 ROM-1
3/8" 114.00 179.00 75.00 ROM-1
1/2" 114.00 179.00 75.00 ROM-1
3/4" 114.00 187.00 80.00 ROM-1
1" 114.00 194.00 90.00 ROM-1
1 1/4" 114.00 264.00 110.00 ROM-1
1 1/2" 114.00 211.00 120.00 ROM-1
2" 114.00 255.00 140.00 ROM-A
2.5" TBA TBA TBA TBA
3" TBA TBA TBA TBA
4" TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1
Socket Weld Ends: ASME B16.11
Silicone Free: Suitable For Oil Based Paints
Anti Static Device: Ball, Shaft & Valve Body

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
