Heavy Duty Stainless Steel Rotork ROM Actuated Valves

The AV-L8000ROM, AV-L8100ROM & AV-L8200ROM 3 piece full bore heavy duty actuated ball valves consist of a ASTM A351 CF8M 316 stainless steel body & trim with TFM 4215 25% carbon filled seats. Valve sizes range from 1/4” to 2” nominal bore. The isolation Ball Valve is a reliable and fully maintainable design. The 3 piece body allows for future proofing your preventive maintenance schedule with an easily removed drop out section that can be replaced when needed. Options inlcude 50% stainless steel filled seats and V-Ball modulation. With Rotork ROM electric actuators you can control your processes efficiently and with high precision. Our products are reliable, safe and easy to use. They also offer long life cycles for maximum productivity in your production facilities or service centres.

Key Features

Key features and benefits of AV-L8000ROM, AV-L8100ROM & AV-L8200ROM Actuated Ball Valves.
1

Key Features

Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else.
2

Key Features

The Rotork ROM Electric Actuator is designed for use in hazardous locations and extreme environment’s. These electric actuators are ideal for applications such as heating, ventilation and air conditioning (HVAC), chemical processing plants, mining operations and marine vessels.
3

Key Features

The Rotork ROM electric actuator is a compact, lightweight and cost effective for use in many industrial automation applications. It has been designed to be easy-to install with an intuitive user interface and operations manuals that allow for immediate use once on site.

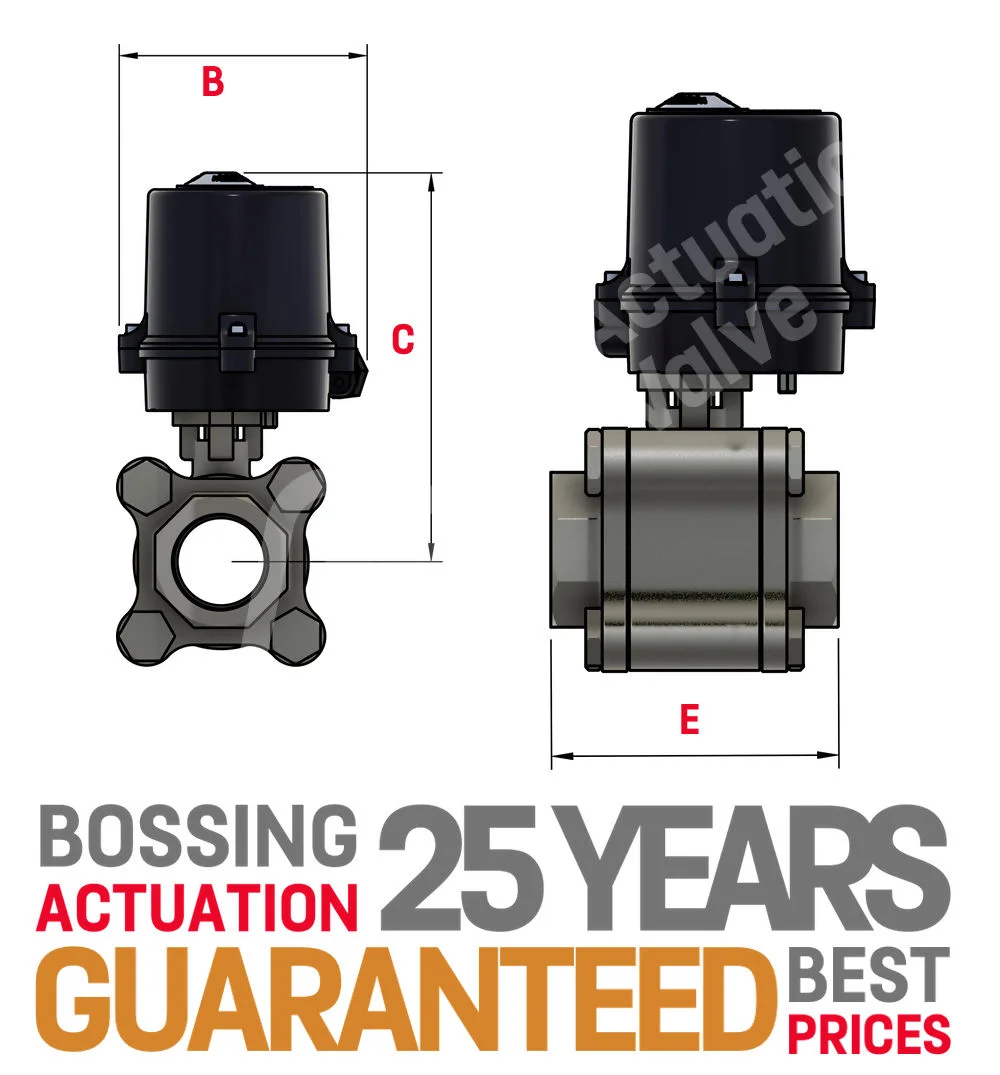

Screwed/Socket Weld Technical Stuff

B C E Model
1/4" 114.00 179.00 75.00 ROM-1
3/8" 114.00 179.00 75.00 ROM-1
1/2" 114.00 179.00 75.00 ROM-1
3/4" 114.00 187.00 80.00 ROM-1
1" 114.00 194.00 90.00 ROM-1
1 1/4" 114.00 264.00 110.00 ROM-1
1 1/2" 114.00 211.00 120.00 ROM-1
2" 114.00 255.00 140.00 ROM-A
2.5" TBA TBA TBA TBA
3" TBA TBA TBA TBA
4" TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Butt Weld Valve 3D Stuff

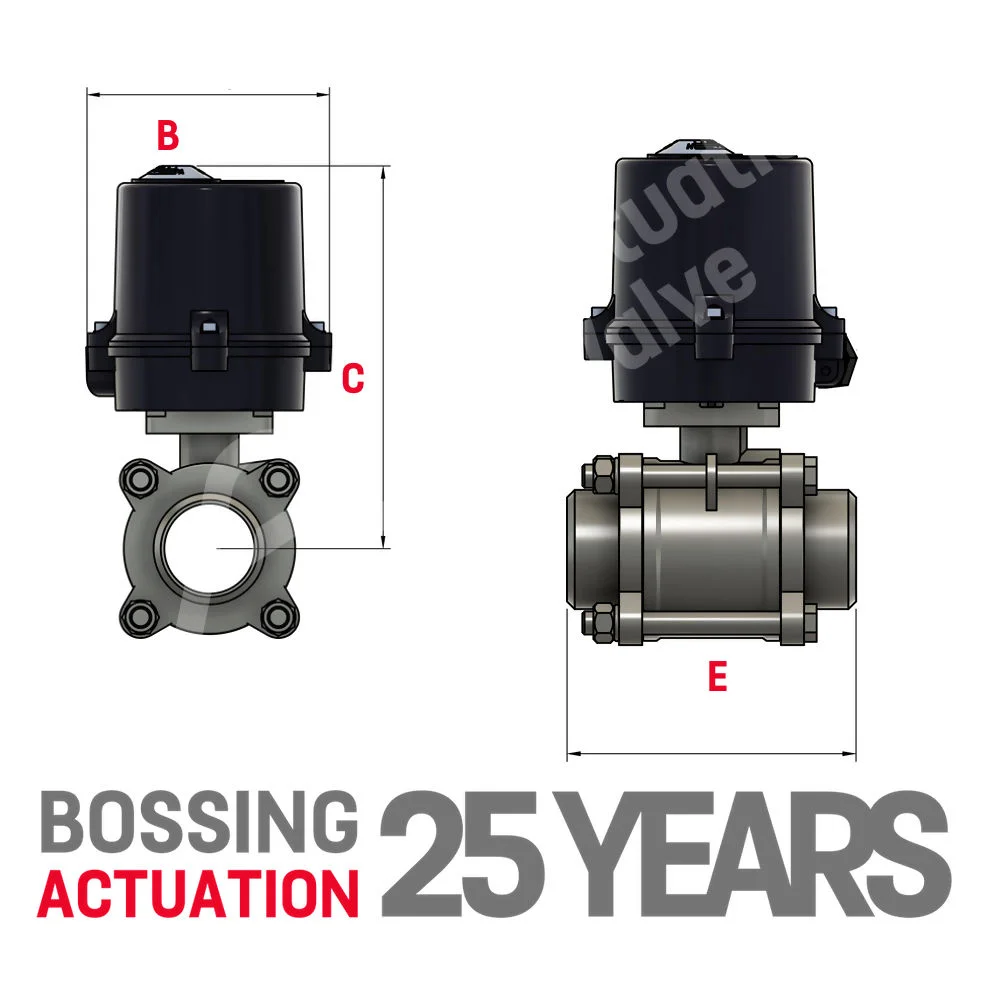

Butt Weld Valve Technical Stuff

B C E Model
1/4" 114.00 179.00 70.00 ROM-1
3/8" 114.00 179.00 70.00 ROM-1
1/2" 114.00 179.00 75.00 ROM-1
3/4" 114.00 187.00 90.00 ROM-1
1" 114.00 194.00 100.00 ROM-1
1 1/4" 114.00 264.00 110.00 ROM-1
1 1/2" 114.00 211.00 125.00 ROM-1
2" 114.00 255.00 150.00 ROM-A
2.5" TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: ISO 7-1 (DIN 2999)
NPT Ends: ASME B1.20.1
Socket Weld Ends: ASME B16.11
Butt Weld Ends: ASME B16.25 (Sch 80)

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
