Hygienic Tri Clamp-Weld OD Rotork ROM Actuator Valves

The AV-L91B0ROM & AV-L9CB0ROM form part of the sanitary and hygienic full bore actuated valve packages from actuation valve. This 3 piece body valve has a swing out centre section that is perfect for scheduled maintenance and seat replacements. The full bore body design and cavity filled seats create a free flow path that does not allow debris or contaminents to build up with temperatures suitable for up to 200 DegC steam cleaning CIP and SIS. Various approvals inlcude FDA & Wras approved seats with a bovine free supply. Extensive choice of off-the-shelf solutions or tailor made engineered products available from stock at our UK site we offer unrivalled customer service levels backed up by local support teams across the globe who specialise in providing fast delivery and ongoing accessible support.

Key Features

Key features and benefits of AV-L91B0ROM & AV-L9CB0ROM Actuated Ball Valves.
1

Key Features

With a Rotork ROM electric actuator, you can see your current position at all times, even when there's no power going to the unit. In the event of power failure You'll know instantly what you need to do next to keep production moving smoothly and efficiently.
2

Key Features

The Rotork ROM electric actuator is designed to reduce the total cost of ownership over that of lower quality alternatives. It provides great efficiency to process and plant equipment offering less down time and maintenance requirements.
3

Key Features

Rotork’s electric actuator is designed for durability in harsh conditions. The unit can withstand immersion up to 10 meters deep, withstanding shock or vibration without any issues and maintaining performance at variable temperatures.

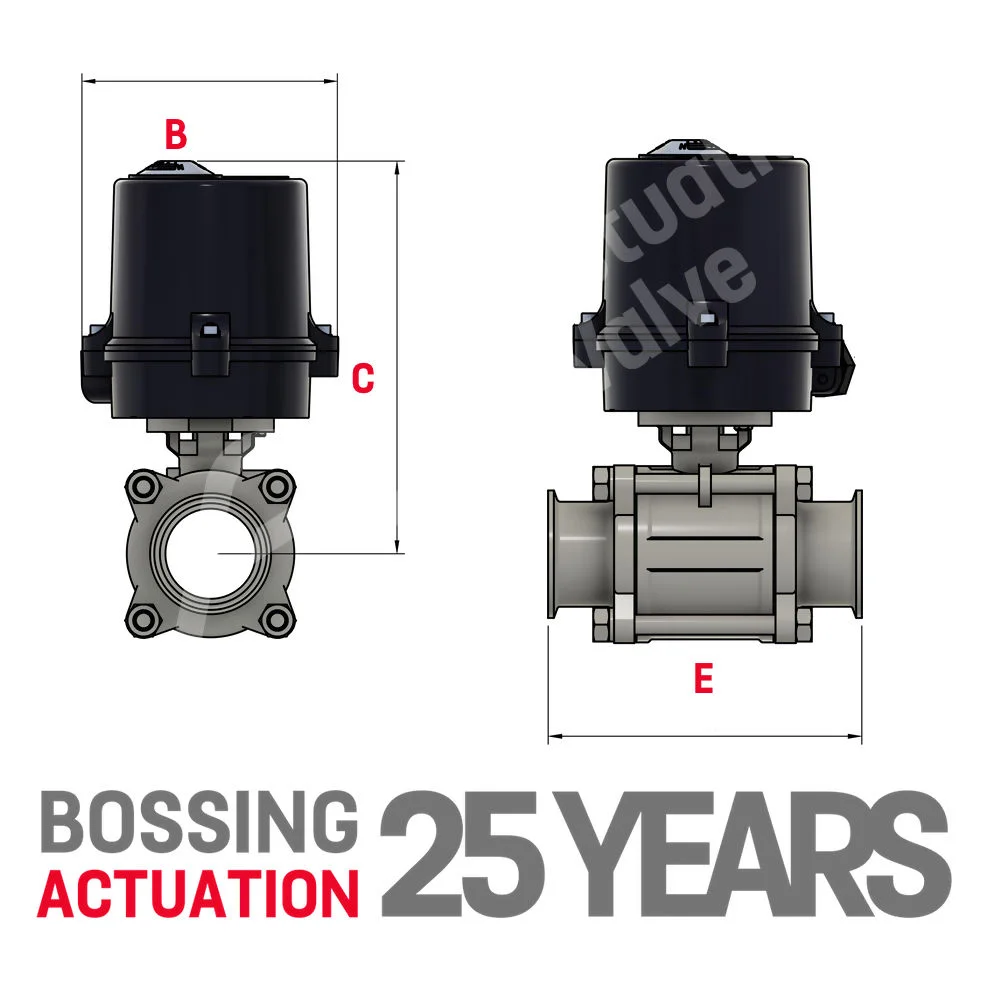

Tri Clamp Technical Stuff

B C E Model
1/2" 114.00 178.00 90.00 ROM-1
3/4" 114.00 185.00 90.00 ROM-1
1" 114.00 194.00 100.00 ROM-1
1 1/4" TBA TBA TBA TBA
1 1/2" 114.00 207.00 125.00 ROM-1
2" 114.00 247.00 150.00 ROM-A
2 1/2" 196.00 412.00 190.00 ROM-2
3" 196.00 421.00 220.00 ROM-3
4" 196.00 517.00 270.00 ROM-3

Tri Clamp 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Weld OD 3D Stuff

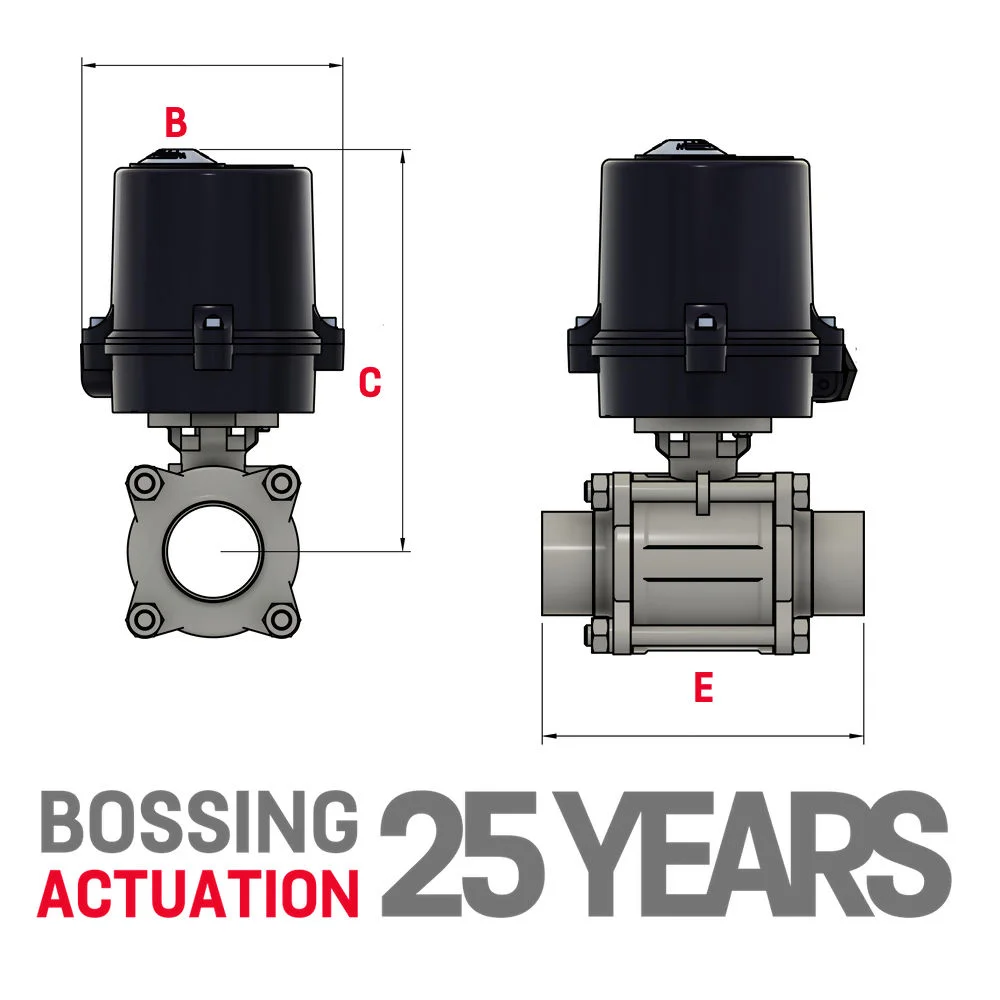

Weld OD Technical Stuff

B C E Model
1/2" 114.00 178.00 90.00 ROM-1
3/4" 114.00 185.00 90.00 ROM-1
1" 114.00 194.00 100.00 ROM-1
1 1/4" TBA TBA TBA TBA
1 1/2" 114.00 207.00 125.00 ROM-1
2" 114.00 247.00 150.00 ROM-A
2 1/2" 196.00 412.00 190.00 ROM-2
3" 196.00 421.00 220.00 ROM-3
4" 196.00 517.00 270.00 ROM-3

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600® Cavity Filled Seats & Seals
Seat Approvals: 3A, FDA & Wras Approved
Cleaning: Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard: MSS SP-110, BS4825
Surface Finish: Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing: MSS SP-110
Face 2 Face: ASME B16.10
Pressure Rating: 400 PSI

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
