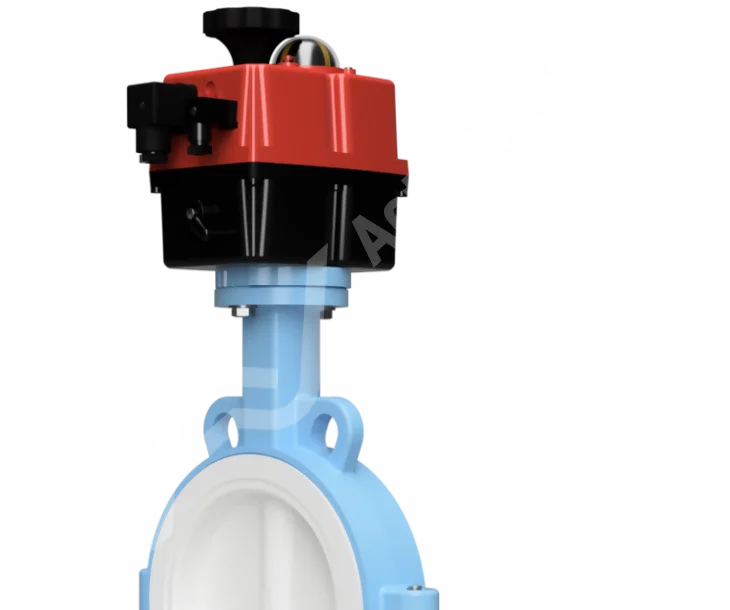

PTFE Lined Wafer Actuated Butterfly Valves

With the split body construction of the TTV PTFE Seat and Lined Butterfly Valves, preventitive maintenance schedules become quick and easy. Using only two bolts to detach the unit into two components, with one solid seat design that can be interchanged within minutes, this package offers a simple, yet extremely effective design.
Shop

Key Features

Key features and benefits of the 20WP4040F0TJJ Actuated Butterfly Valves.
1

Key Features

The split body construction of the TTV PTFE Seat and Lined Butterfly Valves allows for quick and easy preventitive maintenance schedules.
2

Key Features

J&J Electric's DPS Kits are a great option for applications that require fine control of valves. The digital positioner allows for precise adjustment of valve operation, and the kit is compatible with both S and B model actuators.
3

Key Features

The PTFE Seat or PTFE Lined Butterfly Valves satisfy the requirements for a reliable shut off performance on highly corrosive and aggressive process mediums. They are suitable for use on liquids, slurries and bulk solids.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff
Body Material: GJS500-7 Ductile Iron Rilsan Coated
Seats Material: PTFE
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
