Pneumatic Actuated Threaded BSP Ball Valve, Stainless Steel, 69 BAR

Product Description

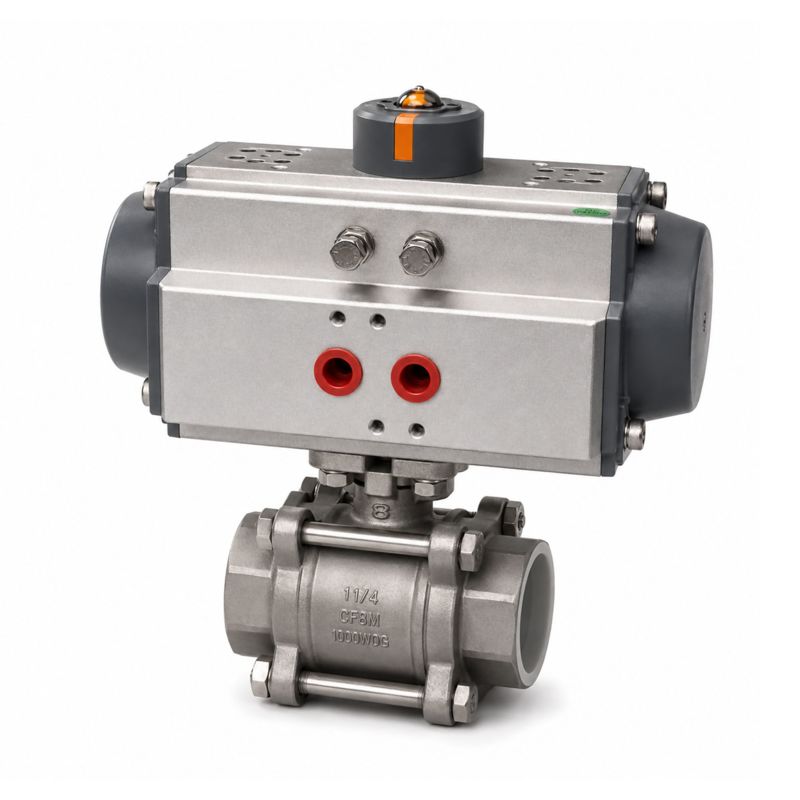

Pneumatic Actuated Threaded Ball Valve – Stainless Steel, 69 Bar

A pneumatic actuated 3 piece full bore ball valve manufactured from ASTM A351 CF8M stainless steel, designed for automated isolation and flow control across a wide range of industrial applications.

Supplied as a complete actuated valve package, the assembly is suitable for applications where remote or automated open/close control is required.

Key Features:

• Pneumatic actuated ball valve
• 3 piece, full bore design
• ASTM A351 CF8M stainless steel body
• 69 bar / 1000 PSI pressure rating
• Screwed BSP connections
• Straight-through ball design
• PTFE 1600 seats
• V-TORK pneumatic actuator
• Anodised aluminium actuator housing
• No manual override
• Supplied without solenoid/spool valve
• Complete valve and actuator assembly
