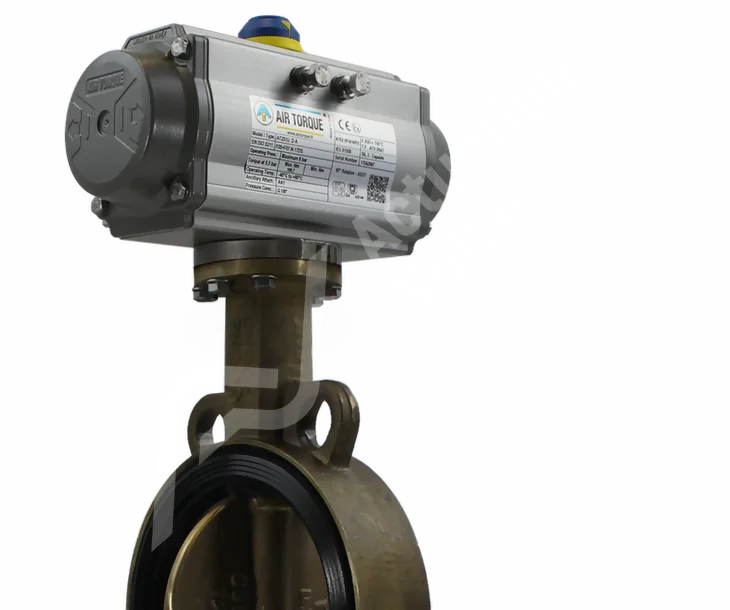

A combination of the TTV 80WM580 and Air Torque actuator. Currently our most popular marine actuated butterfly valve assembly that outperforms most others on the market for efficiency, cost and corrosion resistance. The aluminium bronze body and disc butterfly valve provides superior external protection to factors such as sea water spray and chemicals. A replaceable valve seat and actuator rated to SIL3 complete a robust general purpose package that will go the distance and provide maximum life capacity. The Air Torque actuator is in field convertible should you ever require a change from the spring return and double acting functionalities.

Shop Help Me

Key features and benefits of the 80WM580AT Actuated Butterfly Valves.

Key Features

Air Torque Pneumatic Actuator provides a solution by offering modularity, spring-loaded design that offers fail-safe operation in harsh environments. This allows end users to achieve fast cycle times without sacrificing safety or reliability.

Key Features

The Bronze Butterfly Valve is our most popular valve choice for marine applications due to its high level of corrosion resistance. They are widely used in marine industries where there may be significant exposure to salt spray and corrosive environments.

Key Features

The Air Torque range of pneumatic actuators is extremely versatile and easy to install. Their lightweight design means they don't require heavy duty mounting points, so you can fit them anywhere on your production line without affecting product flow or increasing costs unnecessarily.

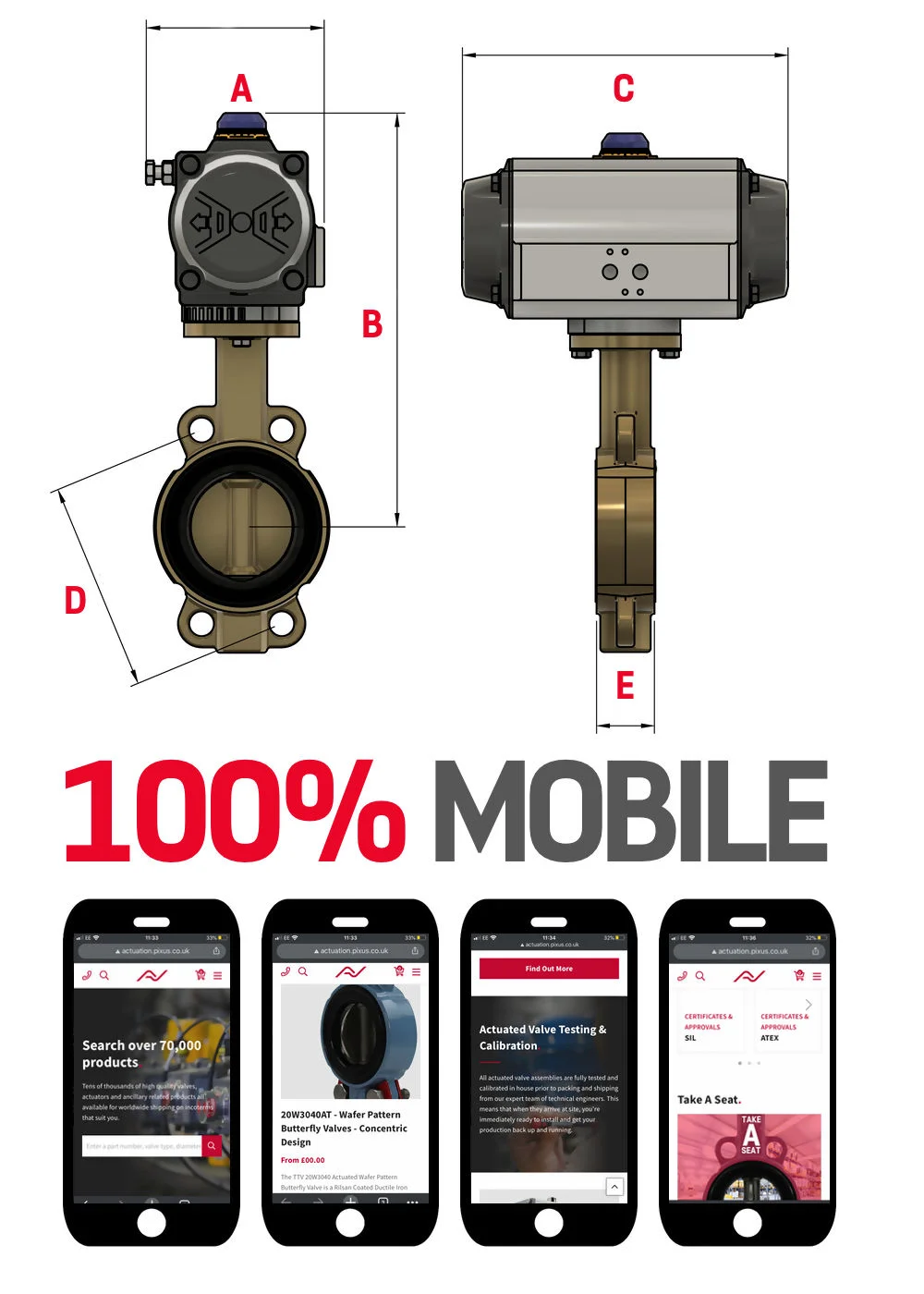

	A	B	C	A	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA	SR/DA
1.5"	84.50	245.00	153.50	84.50	245.00	153.50	TBA	33.00
2"	84.50	261.00	153.50	84.50	261.00	153.50	TBA	43.00
2.5"	93.00	283.00	203.50	84.50	266.00	153.50	TBA	46.00
3"	106.50	304.00	241.00	93.00	291.00	203.50	TBA	46.00
4"	108.50	334.00	259.00	106.00	322.00	241.00	TBA	52.00
5"	135.00	381.00	304.00	108.50	353.00	259.00	TBA	56.00
6"	166.00	422.00	394.50	136.00	390.00	304.00	TBA	56.00
8"	181.00	481.00	422.50	166.00	432.00	394.50	TBA	60.00
10"	221.50	543.00	528.00	181.00	474.00	422.50	TBA	68.00
12"	262.00	628.50	605.00	200.00	550.50	474.00	TBA	78.00
14"	262.00	648.50	605.00	221.50	595.00	528.00	TBA	78.00
16"	330.00	720.00	710.00	262.00	688.50	605.00	TBA	102.00
18"	330.00	770.00	710.00	330.00	770.00	710.00	TBA	114.00
20"	528.00	1038.00	950.00	371.00	873.00	812.00	TBA	127.00
24"	528.00	1105.00	950.00	418.00	967.00	876.00	TBA	154.00

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of Air Torque actuators, ready for immediate dispatch.

Air Torque actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

When you choose Air Torque actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

DRAWINGS & SCHEMATICS

Document

Drawings & Schematics

Document

Drawings & Schematics

Document

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

Document

drawings & schematics

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.


Body Material:	B148 C9500 Aluminium Bronze
Seats Material:	EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard:	Concentric, Soft Seat
Face To Face:	EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing:	EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections:	PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing:	ISO 5208, 100% Tight Shut Off, API 598

Yes, this Valve is suitable for sea water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, a limit switch box can be fitted to the Air Torque actuator to provide open and closed position feedback. Switch boxes are available for safe area and hazardous area installations, including LED visual indication, and can be fitted and calibrated to the actuator before dispatch.

Pricing depends on the valve size, seat material and actuator configuration, along with the quantity you require. Contact our sales team with details of your project and we will provide a tailored quotation, including any volume pricing available for larger or repeat orders.

No additional coating is required. This valve is manufactured from B148 C9500 aluminium bronze, which offers natural resistance to corrosion from sea water spray and other aggressive marine conditions, and holds approvals including DNV, Bureau Veritas, ABS and Lloyds.

Yes, we can help. These aluminium bronze wafer butterfly valves are available across a wide size range, and we can advise on options outside the standard listing. Contact our sales team with your required size and specification and we will confirm availability and lead time.

Yes, we can arrange delivery direct to your customer. Please provide the delivery address and any despatch documentation you require, such as a delivery note, when placing your order and we will ensure it is included with the consignment.

Yes, we offer credit accounts for regular trade customers, subject to a credit application and reference check. Contact our sales team to apply, or ask about alternative payment options if you need a valve before a credit account is set up.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
