PTFE Seat Lugged Air Torque Actuated Butterfly Valves

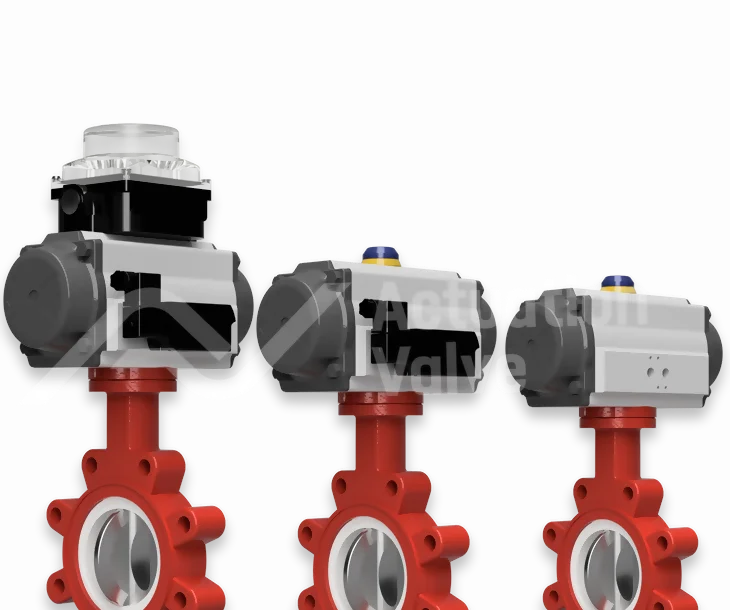

A combination of the TTV 20LP4040F0 and Air Torque actuator. Most commonly used amongst the chemical and food or beverage industries this actuated butterfly valve assembly outperforms most others on the market. A rilsan coated body butterfly valve and anodised aluminium actuator provide external protection for most non aggressive external application factors whilst the internal PTFE seat and stainless steel disc provides superior corrosion resistance as well as an FDA approved contact material for consumable products. A replaceable valve seat and actuator rated to SIL3 complete a robust high performance package that will go the distance and provide maximum life capacity. The Air Torque actuator is in field convertible should you ever require a change from the spring return and double acting functionalities.

Key Features

Key features and benefits of the 20WP4040F0AT Actuated Butterfly Valves.
1

Key Features

The Air Torque range of pneumatic actuators is extremely versatile and easy to install. Their lightweight design means they don't require heavy duty mounting points, so you can fit them anywhere on your production line without affecting product flow or increasing costs unnecessarily.
2

Key Features

With lugged butterfly valves If one side needs repair, you can simply disconnect it from the piping system and leave the other side connected until repairs are complete. This makes maintenance easier and faster compared to wafer pattern butterfly valves.
3

Key Features

The High Performance Lugged Pattern PTFE Butterfly Valve is a high-temperature, chemical resistant valve that can handle extreme conditions. The internal seal of this unit consists of non-toxic and durable material.

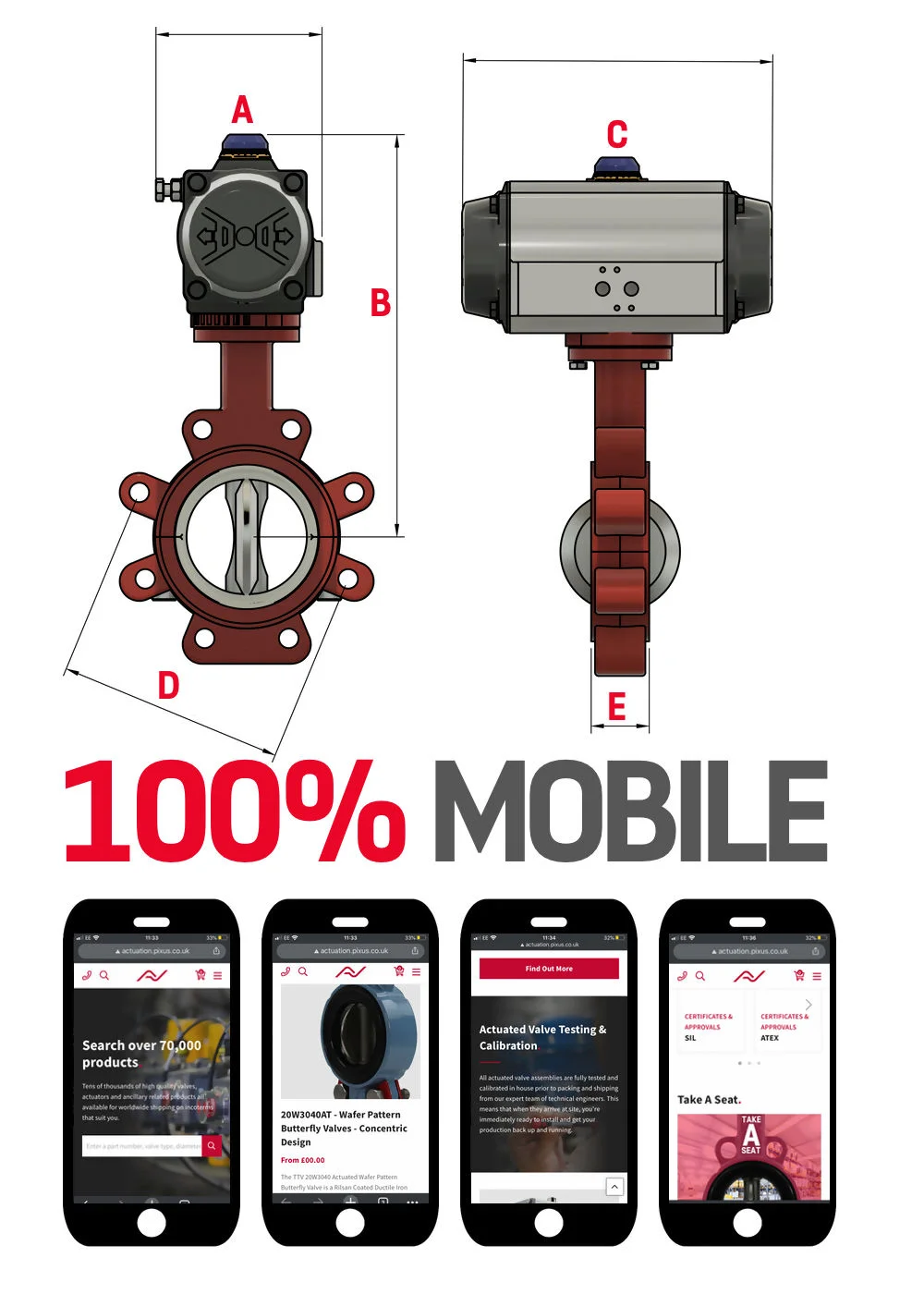

PTFE Seat Lugged Butterfly Valve Dims

A B C A B C D E
SR SR SR DA DA DA SR/DA SR/DA
1.5" 106.50 275.00 241.00 84.50 245.00 153.50 TBA 33.00
2" 108.50 303.00 259.00 106.00 291.00 241.00 TBA 43.00
2.5" 108.50 308.00 259.00 106.00 296.00 241.00 TBA 46.00
3" 135.00 344.00 304.00 108.50 316.00 259.00 TBA 46.00
4" 135.00 362.00 304.00 108.50 334.00 259.00 TBA 52.00
5" 181.00 432.00 422.50 166.00 383.00 394.50 TBA 56.00
6" 181.00 441.00 422.50 166.00 392.00 394.50 TBA 56.00
8" 181.00 481.00 422.50 166.00 432.00 394.50 TBA 60.00
10" 181.00 474.00 422.50 181.00 474.00 422.50 TBA 68.00
12" 262.00 628.50 605.00 221.50 575.00 528.00 TBA 78.00
14" TBA TBA TBA TBA TBA TBA TBA TBA
16" TBA TBA TBA TBA TBA TBA TBA TBA
18" TBA TBA TBA TBA TBA TBA TBA TBA
20" TBA TBA TBA TBA TBA TBA TBA TBA
24" TBA TBA TBA TBA TBA TBA TBA TBA

PTFE Seat Lugged Butterfly Valve 3D

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Why Air Torque

We have stock!

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of Air Torque actuators, ready for immediate dispatch.

Superior Durability and Reliability

Air Torque actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

3D Step Files Available

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

Expert Customer Support

When you choose Air Torque actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

Additional Air Torque Actuation Equipment

Actuation Valve can offer additional ancillary product equipment for you Actuated PTFE Air Torque Butterfly Valves. We have massive stocks of 4-20mA Postioners, Pilot Solenoid Valves, De-Clutch Gear Boxes, Limit Switch Monitor Feedback (Switch Box) and Air Filter Regulators. Just ask and we will provide what you need.

Valve Standards & Stuff

Body Material: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: Stainless steel (CF-8M), Duplex
Shaft Materials: AISI 316, 17-4PH, Duplex
Face To Face: ISO 5752 Series 20, BS 5155 Wafer, DIN 3202 Part 3, Series K1
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 705, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, API 598

Frequent Interrogation

The valve is suitable for almost all chemical applications. Send in an email of pick up the phone. One of our super tech guys will check it over for you.

We can. The final is product customizable at the bottom of the page! Have a look down there or get us on 0151 547 1221. We have everything from Safe Area to ATEX in multiple voltages.

It certainly does. All of our PTFE butterfly valves come complete with a full set of operations and maintenance manuals from the manufacturer.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boxes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

No. Why do people keep asking!? We are not the silly pink valve company.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Job done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Non Toxic FDA Approved PTFE

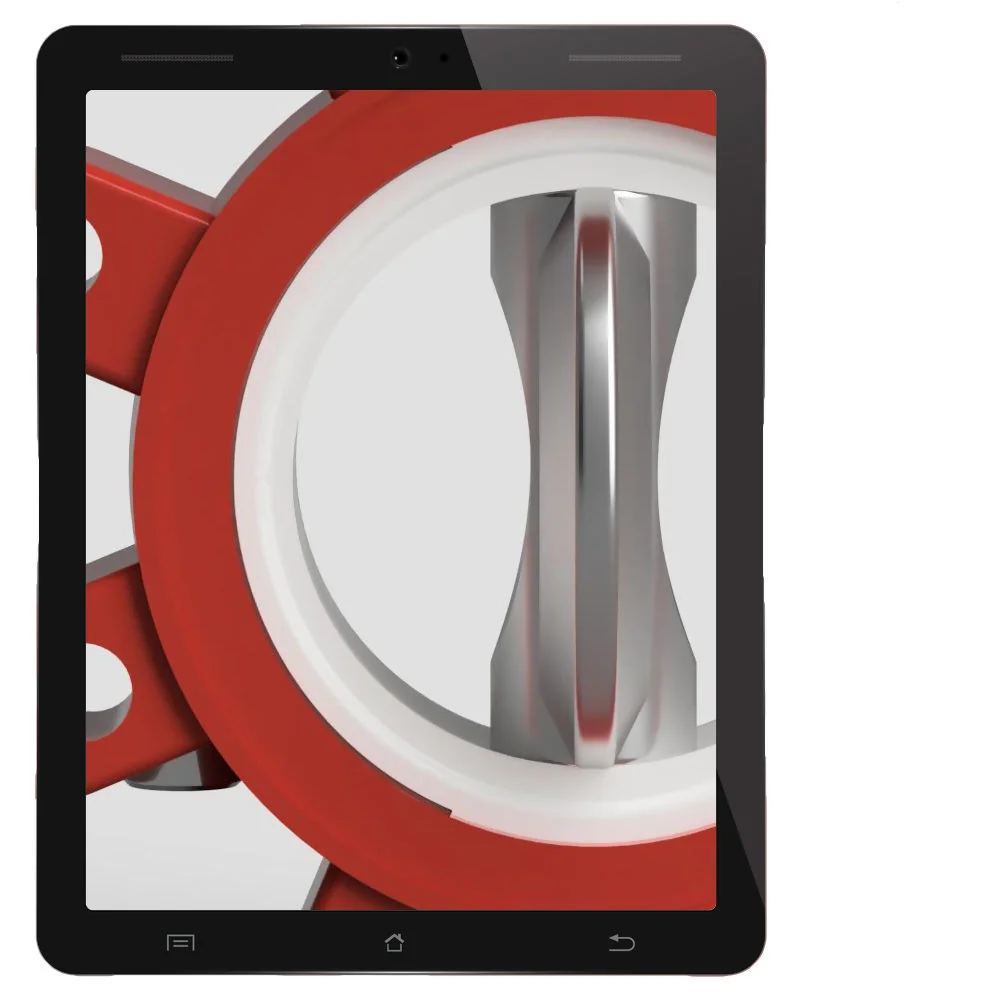

Wafer Pattern concentric design features a non-toxic PTFE internal seal which also partially covers the outer body of the valve for perfect sealing with counter flanges. Thus avoiding any possibility of cross-contamination and providing a butterfly valve that is extremely resistant to chemicals and solvents with complete insolubility to 300°C.

Engineered Shaft Design

A single piece shaft design brings high strength and stability with direct mount capabilities for actuation assemblies and ensures fluid is again isolated from both the shaft and the body of the butterfly valve. This also eliminates the need for a customised mounting assembly kit which can bring additional costs and time.

Streamlined Butterfly Valve Discs

Greater CV Potential & Less Pipe Space

TTV’s streamlined discs produce a much greater Cv than other butterfly valves on the market resulting in low-pressure drops and reduced energy costs while maintaining a bi-directional zero leakage seal when in the closed position. Low operational torque and reduced friction reduces the costs of gear, pneumatic and electric actuation whilst extending the life of the valve seal. A silicone elasticised gasket facilitates the valve sealing.

For applications which require abrasion resistance the option of a UHMWPE (Ultra-High-Molecular-Weight-Polyethylene) is available for this particular butterfly valve.

Less space, results in less material, bringing significantly lower costs in the process. As part of Isolation applications, our valves can be fully open or fully closed with quarter turn movement (90 Degrees) of the functioning lever or actuator. When closed, the reliable seal and disc can provide 100% leak tight downstream shutoff and low-pressure loss across the valve when opened through a streamlined, energy saving metallic disc. These types of valves can also be used to regulate flow pressure or temperature through a multi-position lockable lever or 4-20mA 3-15 psi control.

Actuated Butterfly Valves are available in both pneumatic and electric operation and can be beneficial for use in remotely accessed areas, valves that require larger torque figures to operate, timing or synchronisation and reliability. Pneumatically Actuated Butterfly Valves provide the quickest form of operational control for open/close functionality and are available in both double acting and spring return units with either direct/solenoid operation. Spring Return units can be set up in a fail-safe closed mode for critical lines were the Valve will return to the closed position upon the event of power failure through the loaded springs. Fail-safe open Valves are also available upon request.
