High-performance Double Offset Butterfly Valves are designed for use in exceptionally harsh conditions with critical shutoff isolation and throttling control applications. The aptly named Colossus is available as a Metal Seated or PTFE seated design. Tested to function properly after just 1,000 hours of salt spray testing (C5 Medium). This is an accelerated test that puts the product under conditions much harsher than those it would normally encounter during its average use cycle. TTV Butterfly Valves feature an innovative disc design that greatly increases Cv values resulting in lower energy costs and improved efficiency with no sacrifice in performance or durability compared to other manufacturers valves on the market.

Shop Help Me

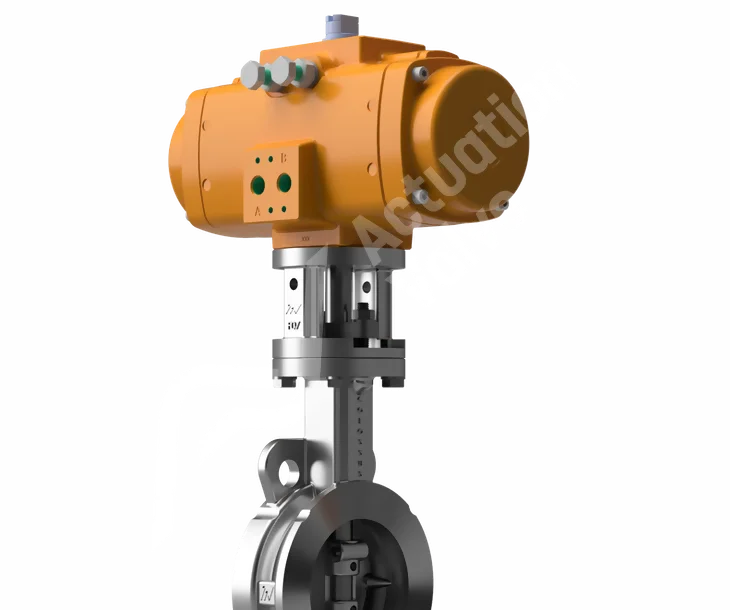

Key features and benefits of the Colossus Elomatic Wafer Actuated High Performance Butterfly Valves.

Key Features

Actuated butterfly valves are the workhorse of many industrial processes, all of Actuation Valve & Control's assemblies are built in house. We offer both Direct Mount options as well as custom build bracket/shaft assemblies.

Key Features

The NAMUR standard interfaces allows for quick and easy fitting of additional ancillary products such as solenoid valves and and valve limit switch position boxes. A perfect addition to the EL-O-Matic actuator would be Asco solenoid valves and TopWorx limit switch boxes.

	A	B	C	A	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA	SR/DA
2"	69.00	272.00	217.00	58.00	260.00	192.00	TBA	43.00
2.5"	69.00	291.00	247.00	69.00	284.00	217.00	TBA	46.50
3"	75.00	325.00	304.00	69.00	299.00	247.00	TBA	47.00
4"	87.00	352.00	362.00	69.00	320.00	247.00	TBA	52.00
5"	109.000	421.00	385.00	87.00	383.00	265.00	TBA	56.00
6"	132.0	498.00	476.00	109.00	441.00	284.00	TBA	56.00
8"	130.00	582.00	732.00	131.00	548.00	400.00	TBA	63.00
10"	130.00	637.00	732.00	131.00	603.00	400.00	TBA	71.00
12"	360.00	726.00	877.00	316.00	674.00	462.00	TBA	78.00
14"	360.00	710.00	877.00	316.00	658.00	462.00	TBA	92.00
16"	410.00	789.00	959.00	350.00	754.00	550.00	TBA	102.00
18"	410.00	814.00	959.00	350.00	779.00	550.00	TBA	114.00
20"	528.00	1028.00	950.00	400.00	849.00	649.00	TBA	127.00
24"	528.00	1088.00	950.00	400.00	909.00	649.00	TBA	154.00

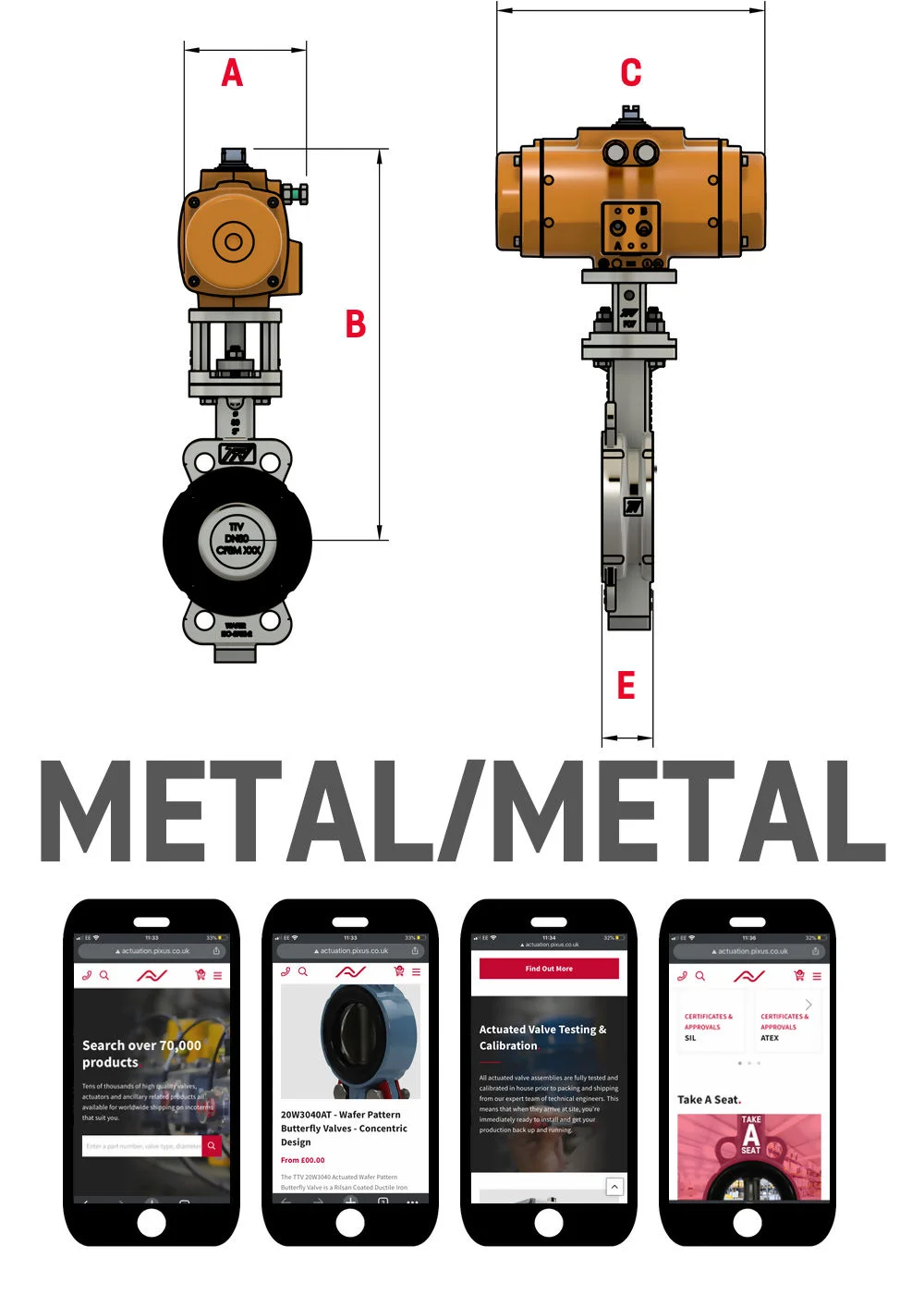

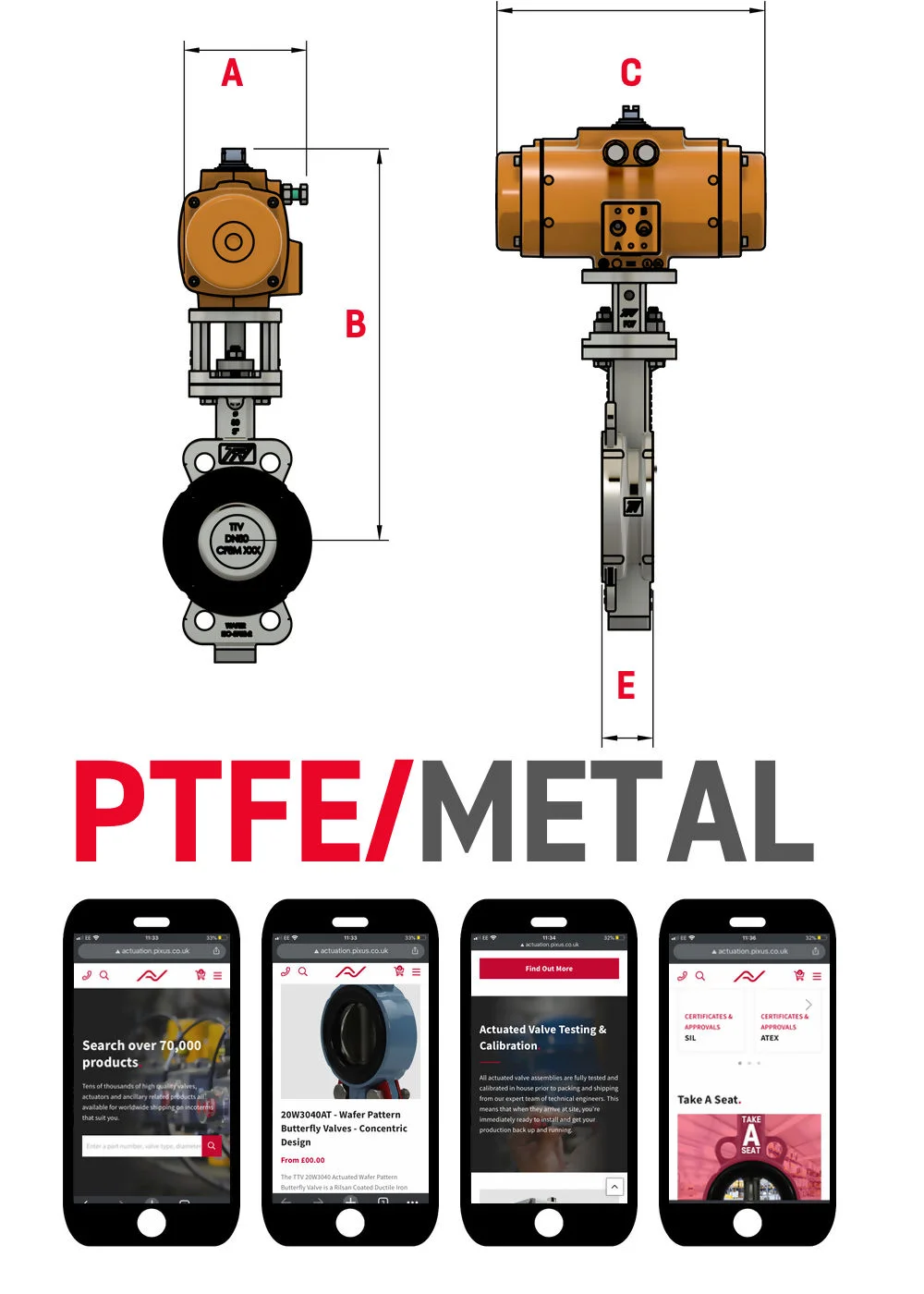

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

DRAWINGS & SCHEMATICS

ZIP
Size 0100

DRAWINGS & SCHEMATICS

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

	A	B	C	A	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA	SR/DA
2"	69.00	272.00	217.00	58.00	260.00	192.00	TBA	43.00
2.5"	69.00	291.00	247.00	69.00	284.00	217.00	TBA	46.50
3"	75.00	325.00	304.00	69.00	299.00	247.00	TBA	47.00
4"	87.00	352.00	362.00	69.00	320.00	247.00	TBA	52.00
5"	109.000	421.00	385.00	87.00	383.00	265.00	TBA	56.00
6"	132.0	498.00	476.00	109.00	441.00	284.00	TBA	56.00
8"	130.00	582.00	732.00	131.00	548.00	400.00	TBA	63.00
10"	130.00	637.00	732.00	131.00	603.00	400.00	TBA	71.00
12"	360.00	726.00	877.00	316.00	674.00	462.00	TBA	78.00
14"	360.00	710.00	877.00	316.00	658.00	462.00	TBA	92.00
16"	410.00	789.00	959.00	350.00	754.00	550.00	TBA	102.00
18"	410.00	814.00	959.00	350.00	779.00	550.00	TBA	114.00
20"	528.00	1028.00	950.00	400.00	849.00	649.00	TBA	127.00
24"	528.00	1088.00	950.00	400.00	909.00	649.00	TBA	154.00

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.


Body Material:	Stainless Steel CF8M, Cast/Carbon Steel A216 WCB
Disc Materials:	Stainless steel (CF-8M)
Shaft Materials:	Stainless Steel F-316
Design:	API 609, ASME B16.34, MSS SP-67, EN 593, Nace MR 0175
Inspection & Testing:	ISO 5208 / API 598
Connections:	ISO 5752 series 20, BS 5155 series 4, DIN PN 10/16/25, ANSI 150/300
Seat Materials:	Soft seat: R-PTFE (-50ºC / +220ºC), Hard seat: F-316L (-100ºC / +500ºC)
Applications:	Chemical, Vacuum, LPG/LNG, Hydrocarbons, Steam, Gas, Bitumen, Thermal Oil

The valve is suitable for almost all chemical applications. Send in an email of pick up the phone. One of our super tech guys will check it over for you.

We can. The final is product customizable at the bottom of the page! Have a look down there or get us on 0151 547 1221. We have everything from Safe Area to ATEX in multiple voltages.

It certainly does. All of our PTFE butterfly valves come complete with a full set of operations and maintenance manuals from the manufacturer.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boxes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

Metal - Metal Seat complies with BS 6755 Part 2 or API 6FA/607 (Fire Safety). Valve only.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Job done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.
