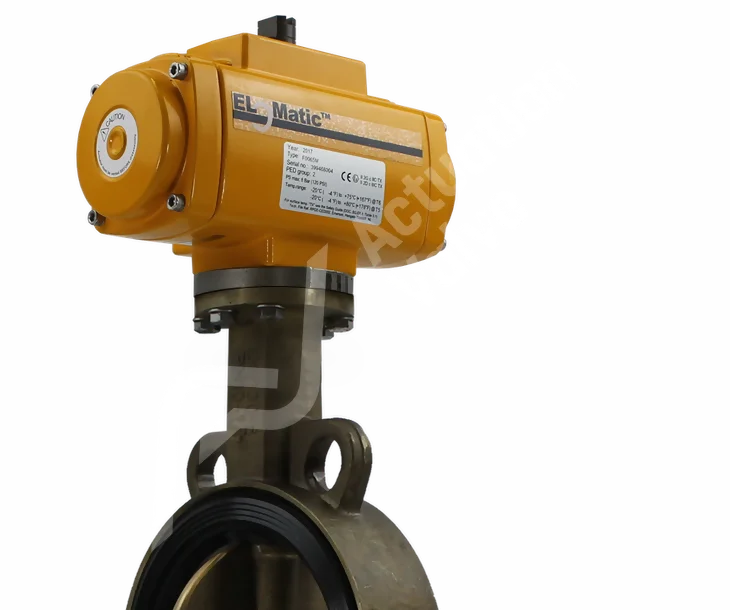

The TTV wafer pattern bronze butterfly valve is particularly suited to the marine industry where corrosion resistance is paramount. Bronze body and Monel stem offers a high resistance to corrosion and seawater with additional soft seat material to suit a range of fluids and mediums. The design of this unique pneumatic actuator incorporates features which make it suitable for use under adverse conditions such as high and Low temperatures and exposure to corrosive chemicals including salt water, acids and other contaminants found in industrial environments. Actuated butterfly valves are a cost-effective and efficient way to control your water valve. We offer both the fail safe close/open position as well as several features that can be specified at time of order including manual overrides.

Shop Help Me

Key features and benefits of the 80WM580EL Actuated Butterfly Valves.

Key Features

The physical strength, structural stability, and corrosion resistance of bronze, in particular, makes it very suitable for a wide variety of applications in the mainstream of industrial requirements. Bronze in valve manufacture is usually an alloy of copper, tin, lead, and zinc.

Key Features

Actuator tested within an innovative salt spray test chamber which is designed to test components for 1,000 hours in simulated sea water conditions (C5 Medium). It has been tested by independent laboratories and shows no decline in performance.

Key Features

EL-O-Matic Pneumatically actuated valves are used in many different industries like the chemical, oil and gas, pharmaceuticals, water treatment and more. They provide quick response time to open or close the flow of media (gases/fluids) through them.

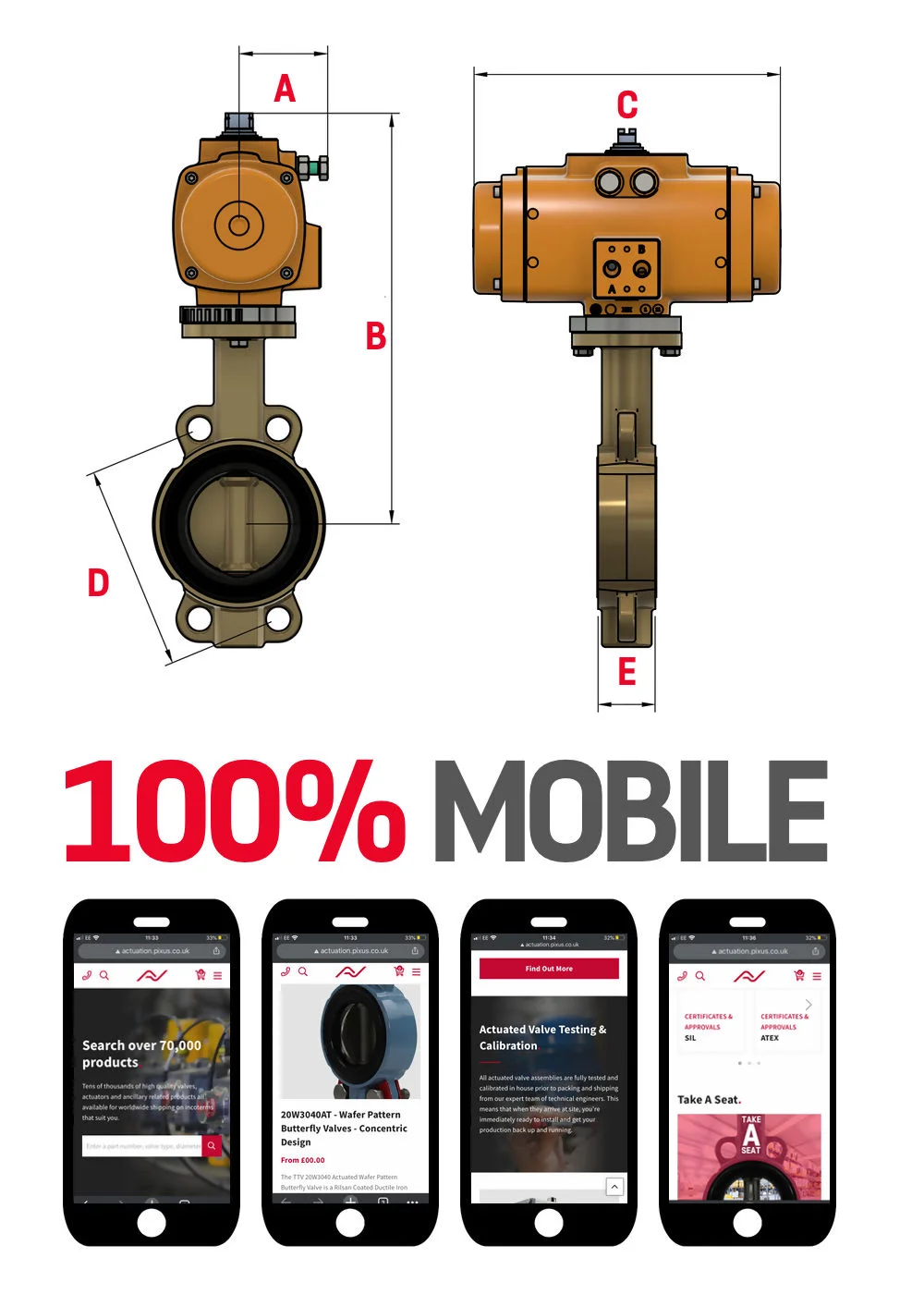

	A	B	C	A	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA	SR/DA
1.5"	48.00	259.00	166.00	33.00	220.00	103.00	TBA	33.00
2"	48.00	275.00	166.00	48.00	275.00	166.00	TBA	43.00
2.5"	58.00	300.00	192.00	58.00	300.00	192.00	TBA	46.00
3"	69.00	320.00	217.00	58.00	308.00	192.00	TBA	46.00
4"	69.00	345.00	247.00	69.00	338.00	217.00	TBA	52.00
5"	75.00	391.00	304.00	75.00	391.00	235.00	TBA	56.00
6"	87.00	406.00	362.00	87.00	406.00	265.00	TBA	56.00
8"	109.00	485.00	385.00	109.00	485.00	284.00	TBA	60.00
10"	132.00	540.00	476.00	132.00	540.00	356.00	TBA	68.00
12"	131.00	585.00	658.00	132.00	572.00	356.00	TBA	78.00
14"	156.00	639.00	732.00	156.00	639.00	528.00	TBA	78.00
16"	175.00	767.00	959.00	181.00	732.00	605.00	TBA	102.00
18"	TBA	TBA	TBA	181.00	782.00	710.00	TBA	114.00
20"	TBA	TBA	TBA	175.00	867.00	812.00	TBA	127.00
24"	TBA	TBA	TBA	TBA	TBA	TBA	TBA	154.00

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

DRAWINGS & SCHEMATICS

ZIP
Size 0100

DRAWINGS & SCHEMATICS


Body Material:	B148 C9500 Aluminium Bronze
Seats Material:	EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard:	Concentric, Soft Seat
Face To Face:	EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing:	EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections:	PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing:	ISO 5208, 100% Tight Shut Off, API 598

Yes, this Valve is suitable for sea water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, a switch box can be fitted to the EL-O-Matic pneumatic actuator to provide open and closed position feedback. A TopWorx switch box is available from stock, with options for safe area and hazardous area installations including LED visual indication, and can be fitted and calibrated to the actuator prior to shipping.

We offer discounts on larger order quantities. Contact our sales team with the valve size, quantity and specification you need, and we will provide a tailored quotation.

Yes, the BLX V100E Series Electro-Pneumatic control unit can be fitted to this actuator, allowing the valve position to be incrementally adjusted between fully open and closed using a 4-20mA signal. Variants are available for spring return and double acting setups with feedback and safety settings. Let us know your process requirements and we can confirm the right configuration.

This range is available from 1.5 inch up to 16 inch as standard, with 18 inch, 20 inch and 24 inch sizes available to order. Contact our sales team with your specification and we will confirm availability and lead time.

Yes, we can deliver direct to your customer. Send us a copy of your delivery note and we will attach it to the outer packaging so it arrives ready for them, with no reference to our details.

Yes, we offer credit accounts for business customers. Complete a short application with your company details and trading history, and once approved you will be able to order on account. Contact our sales team to get started.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

DRAWINGS & SCHEMATICS

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

CERTIFICATES & APPROVALS

Brochures

CERTIFICATES & APPROVALS

Material	Applications	Temperature
EPDM	Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines	-20°C +110°C
High Temperature EPDM	Super Heated Water	-20°C +130°C
NBR Buna	Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air	-10°C +80°C
Hypalon	Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions	-10°C +80°C
Viton	Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels	-5°C +180°C
Polyisoprene	Water, Alcohols, Abrasive Substances (Call To Check), Ketones,	-10°C +60°C
Silicone	Low & High Temperature Resistance Applications	-30°C +150°C
High Temp Silicone	Super Heated Water	-50°C +160°C
Epichlorohydrin	Ozone Resistance, Hydrocarbons, Aromatic Oils	-25°C +145°C
