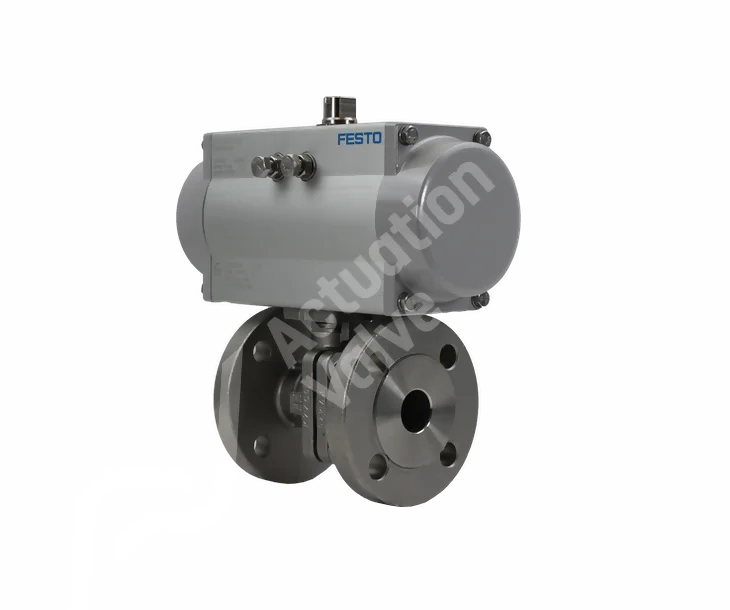

Stainless Steel DIN PN40 Festo Actuator Ball Valves

The AV-L6N00FE DIN PN40 actuated ball valves provide a high pressure full flow operation with a bore of up to 6 inches. The actuated ball valves connections offer installation between two alternate flanges within a pipeline. Valve approvals include DNV, SIL 2, Lloyds Register & Nace MR-0175. Additional ball valve options include an upstream and cavity relief hold drilled into the ball and high temperature spindle extension for insulation and steam actuation. Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else. The Festo DFPD Series Quarter Turn Actuator combines quality German engineering with affordability to create a cost effective pneumatic valve system that can be used in any industry from food production to medical research.

Key Features

Key features and benefits of AV-L6N00FE Actuated Ball Valves.
1

Key Features

With the DFPD Series from Festo you get standard solutions tailored precisely to your requirements. Whether it’s one-off production runs or mass production we will find the perfect solution for your project from initial planning through to final assembly and commissioning.
2

Key Features

The Festo Pneumatic Actuator is one of the most compact and lightweight pneumatic actuators on the market today. It has been designed to meet all requirements for control, safety and energy efficiency in a wide variety of applications.
3

Key Features

All of our Actuated Valve Assemblies are manufactured in house with the help from automation experts. Every completed unit comes equipped to meet high standards and can be traced back via two page test report detailing opening/closing times.

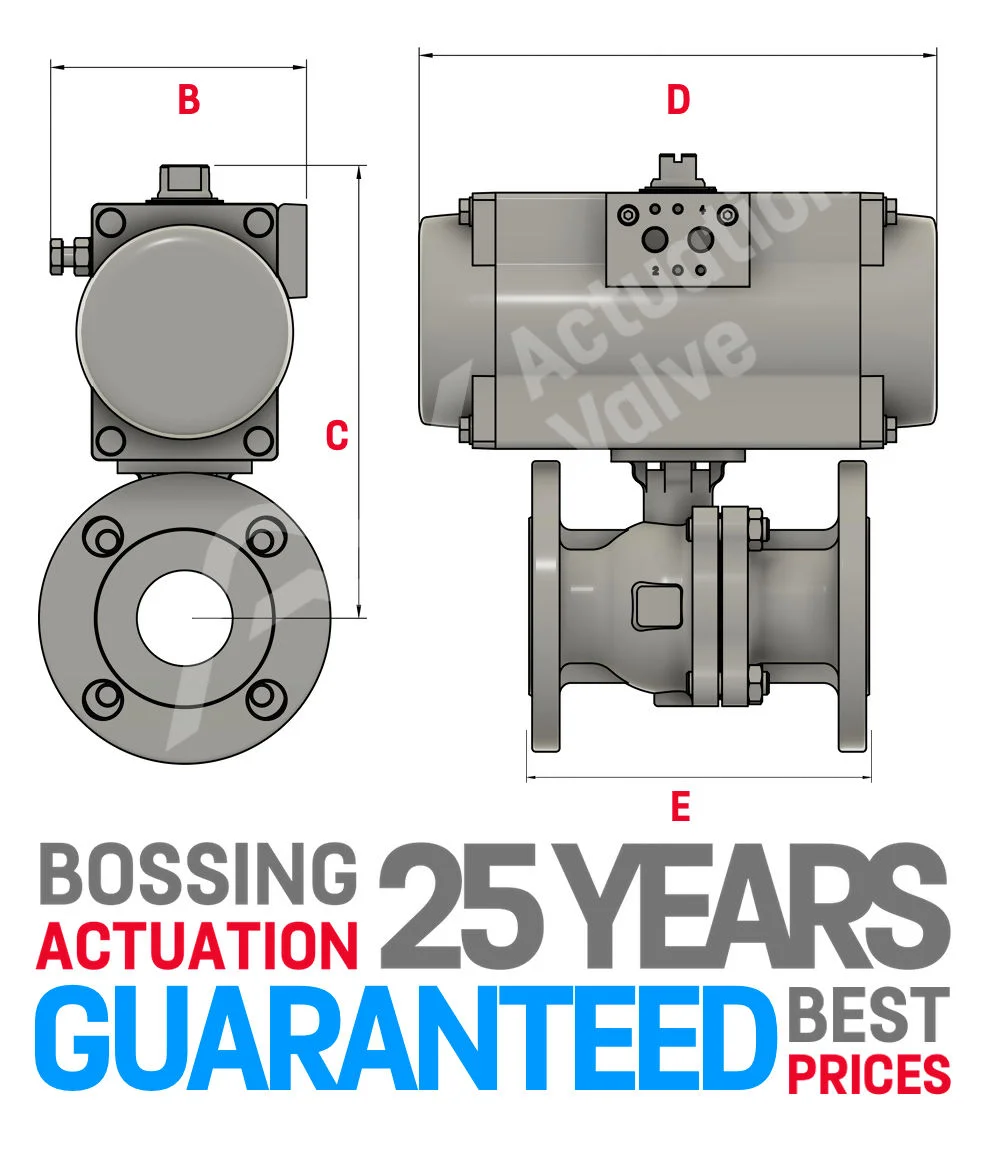

High Pressure PN40 Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 77.77 148.00 145.70 115.00 77.70 148.00 133.30 115.00
3/4" 77.77 153.00 145.70 120.00 77.70 153.00 133.30 120.00
1" 77.77 159.00 145.70 125.00 77.70 159.00 133.30 125.00
1 1/4" 89.70 183.00 170.40 130.00 77.70 171.00 133.30 130.00
1 1/2" 89.70 188.00 170.40 140.00 89.70 188.00 151.40 140.00
2" 108.00 215.00 223.10 150.00 89.70 197.00 151.40 150.00
2 1/2" 123.70 245.00 252.30 170.00 108.00 232.00 189.30 170.00
3" 133.40 271.00 270.90 180.00 123.80 260.00 213.70 180.00
4" 154.00 320.00 301.40 190.00 133.40 294.00 270.90 190.00
5" 154.00 363.00 301.40 325.00 133.40 337.00 270.90 325.00
6" 201.50 436.70 428.20 350.00 182.30 418.00 374.20 350.00
8" 225.50 528.70 519.30 400.00 201.50 485.70 428.20 400.00

High Pressure PN40 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: DIN3357 1,2,EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

4-20mA Control Available On This Product

The Festo CMSX Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the CMSX can help with your process requirements.

Festo DFPD Actuator Videos

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
