Actreg Actuated Super Duplex Wafer Butterfly Valve

TTV Super Duplex Wafer Pattern Butterfly Valves are precision-engineered components crafted from high-quality UNS S32750 material, renowned for its exceptional corrosion resistance and superior strength. The Actreg Marine Coated actuator, featuring the advanced C5M Marine Coating material, provides exceptional corrosion-resistant properties, ensuring prolonged durability and reliability in harsh marine environments. These valves are designed to meet the demanding requirements of various industries where corrosive environments are a concern.
Shop

Key Features

Key features and benefits of Super Duplex Actreg Wafer Butterfly Valve.
1

Key Features

The valve is equipped with a robust shaft made from 904L stainless steel. Known for its high resistance to corrosion, especially in acidic and chloride-containing environments, the 904L shaft ensures smooth operation and longevity.
2

Key Features

The wafer pattern design of these butterfly valves allows for easy installation between flanges. This design minimises the overall footprint of the valve, making it a space-efficient solution for various applications.
3

Key Features

The combination of UNS S32750 material for the valve body and disc, along with the 904L shaft, provides exceptional corrosion resistance. This makes the TTV Super Duplex Wafer Pattern Butterfly Valves suitable for applications where corrosion is a critical factor.

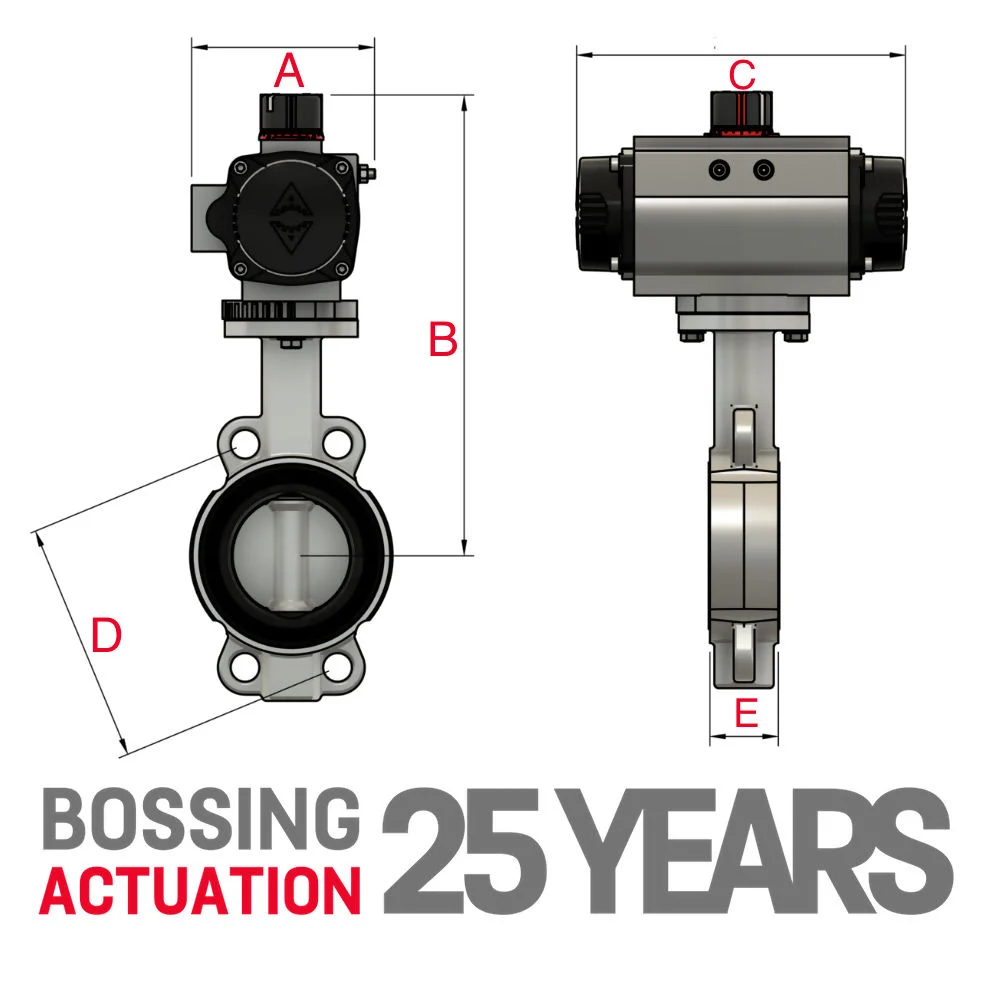

Wafer Type Butterfly Valve Technical

A B C A B C D E
SR SR SR DA DA DA SR/DA SR/DA
1.5" 84.50 245.00 153.50 84.50 245.00 153.50 TBA 33.00
2" 84.50 261.00 153.50 84.50 261.00 153.50 TBA 43.00
2.5" 93.00 283.00 203.50 84.50 266.00 153.50 TBA 46.00
3" 106.50 304.00 241.00 93.00 291.00 203.50 TBA 46.00
4" 108.50 334.00 259.00 106.00 322.00 241.00 TBA 52.00
5" 135.00 381.00 304.00 108.50 353.00 259.00 TBA 56.00
6" 166.00 422.00 394.50 136.00 390.00 304.00 TBA 56.00
8" 181.00 481.00 422.50 166.00 432.00 394.50 TBA 60.00
10" 221.50 543.00 528.00 181.00 474.00 422.50 TBA 68.00
12" 262.00 628.50 605.00 200.00 550.50 474.00 TBA 78.00
14" 262.00 648.50 605.00 221.50 595.00 528.00 TBA 78.00
16" 330.00 720.00 710.00 262.00 688.50 605.00 TBA 102.00
18" 330.00 770.00 710.00 330.00 770.00 710.00 TBA 114.00
20" TBA TBA TBA TBA TBA TBA TBA TBA
24" TBA TBA TBA TBA TBA TBA TBA TBA

Wafer Type Butterfly Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

SMALL Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

010
  • PDF
DRAWINGS & SCHEMATICS

020
  • PDF
DRAWINGS & SCHEMATICS

040
  • PDF
DRAWINGS & SCHEMATICS

080
  • PDF
DRAWINGS & SCHEMATICS

130
  • PDF
DRAWINGS & SCHEMATICS

200

BIG Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

300
  • PDF
DRAWINGS & SCHEMATICS

500
  • PDF
DRAWINGS & SCHEMATICS

850
  • PDF
DRAWINGS & SCHEMATICS

1200
  • PDF
DRAWINGS & SCHEMATICS

1750
  • PDF
DRAWINGS & SCHEMATICS

2100

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff
Body Material: UNS S32750
Disc Material: UNS S32750
Seats Material: NBR
Shaft Material: 904L
Top Flange Material: CF8M

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, a switch box can be fitted to the Actreg pneumatic actuator to provide open and closed position feedback. A switch box is available from stock for safe area and hazardous area installations, including LED visual indication.

We offer discounts on larger order quantities. Contact our sales team with the valve size, quantity and specification you need, and we will provide a tailored quotation.

Yes, the BLX V100E Series is an Electro-Pneumatic control unit that allows the actuator to incrementally adjust the valve's position between fully open and closed. Variants are available for spring return and double acting setups with feedback and safety settings. Ask our team about how the V100E can support your process requirements.

This range is available from 1.5 inch up to 18 inch as standard, with larger sizes available to order. Contact our sales team with your specification and we will confirm availability and lead time.

Yes, we can deliver direct to your customer. Send us a copy of your delivery note and we will attach it to the outer packaging so it arrives ready for them, with no reference to our details.

Yes, we offer credit accounts for business customers. Complete a short application with your company details and trading history, and once approved you will be able to order on account. Contact our sales team to get started.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

Bureau Veritas
  • PDF
CERTIFICATES & APPROVALS

ABS
  • PDF
CERTIFICATES & APPROVALS

ATEX 2014/34/UE
  • PDF
CERTIFICATES & APPROVALS

ACS
  • PDF
CERTIFICATES & APPROVALS

PED 2014/68/UE
  • PDF
CERTIFICATES & APPROVALS

Lloyds ISO 9001

Massive Actuators & Other STUFF

  • PDF
DRAWINGS & SCHEMATICS

2500
  • PDF
DRAWINGS & SCHEMATICS

4000
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

O&M
  • PDF
CERTIFICATES & APPROVALS

SPARES

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C
