Product Description

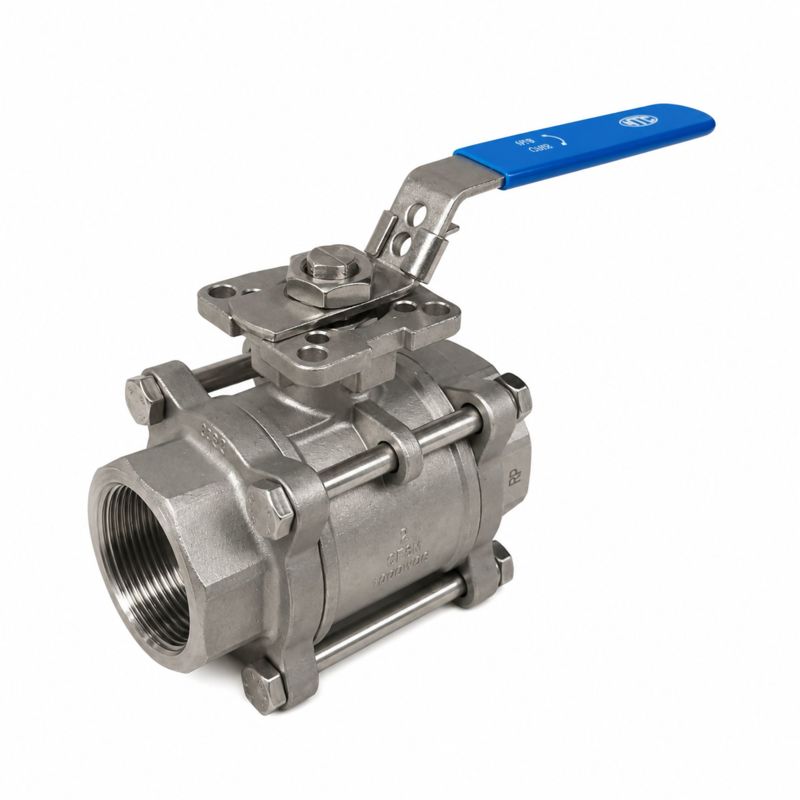

Threaded Stainless Steel Ball Valve – 69 Bar, Lever Operated

A 3 piece full bore threaded ball valve manufactured from ASTM A351 CF8M 316 stainless steel, suitable for reliable flow isolation across a wide range of industrial applications.

Valve Size	ISO 5211	Stem	Torque
1/4"	F03/F04	9 mm	4.5 Nm
3/8"	F03/F04	9 mm	4.5 Nm
1/2"	F03/F04	9 mm	5 Nm
3/4"	F03/F05	9 mm	6 Nm
1"	F04/F05	11 mm	10 Nm
1-1/4"	F04/F07	11 mm	13 Nm
1-1/2"	F04/F07	11 mm	13 Nm
2"	F05/F07	14 mm	28.5 Nm
2-1/2"	F07/F10	17 mm	45 Nm
3"	F07/F10	17 mm	72 Nm
4"	F10	22 mm	110 Nm

Key Features:

3 piece, full bore design
ASTM A351 CF8M 316 stainless steel body and trim
Maximum pressure rating: 69 bar / 1000 psi
Lever operated
Threaded BSP or NPT end connections
TFM 1600® ball seats and PTFE seals
FDA & WRAS certified TFM 1600® seat material
ISO 5211 direct mounting pad
Ta-Luft self-adjusting stem
Anti-static ball-stem-body design
ATEX approved
NACE MR0175 compliant
ISO 15848 certified
EN 14432 certified
SIL 2 compliant
DNV & Lloyd's approved

Buy online!

Technical Specs


Valve Datasheet	AV-L3000BV
Valve Type	Ball Valve
Body Material	Stainless Steel A351 CF8M
Body Design	3 PCE Full Bore
Seat Material	PTFE TFM 1600
Approvals	ATEX, Anti-Static, General Purpose, Lloyds Approved, DNV
