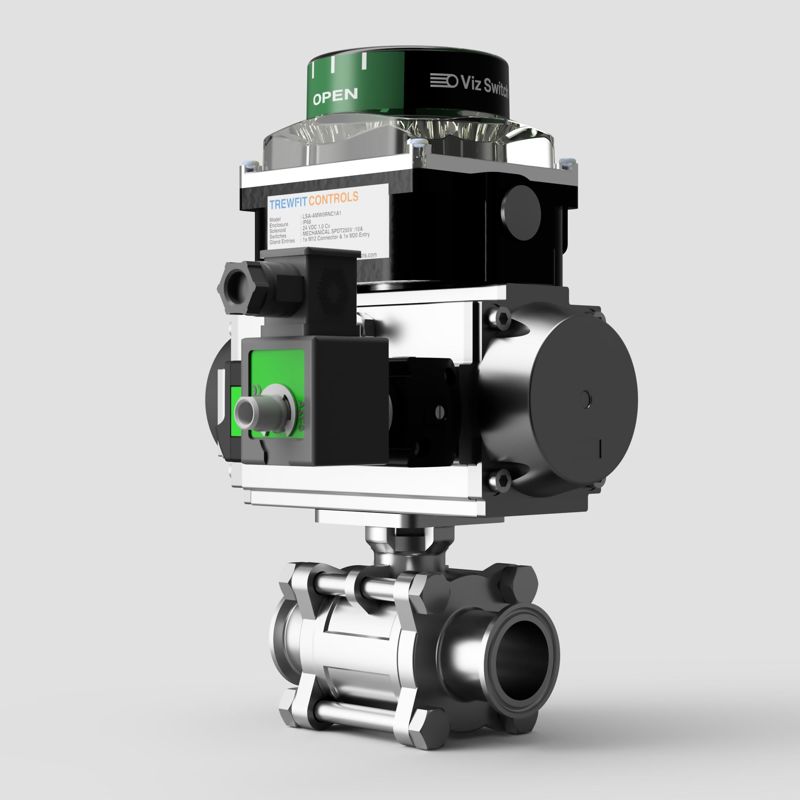

V-Tork Pneumatic Actuated Hygienic Tri Clamp-Weld OD Ball Valve / Solenoid Operated with Switchbox

Product Description

The V-Tork Solenoid Operated Hygienic Tri Clamp-Weld OD Ball Valve with Switchbox combines a three-piece hygienic stainless steel ball valve with a V-Tork pneumatic actuator, solenoid valve and switchbox for automated flow control with position feedback.

The valve body is stainless steel with a hygienic internal finish and is available with tri clamp or weld OD ends to BS4825. The three-piece construction allows the centre section to be removed for cleaning, inspection and seat replacement without taking the end connections out of the line.

The pneumatic actuator provides quarter-turn operation in either spring return or double acting form, while the solenoid valve controls the actuator air supply electrically in 24VDC, 110VAC or 230VAC. The fitted switchbox provides open and closed position indication, making the assembly suitable for systems where valve status needs to be monitored remotely.

Key Features:

• V-Tork pneumatic actuator

• Three-piece hygienic ball valve

• Stainless steel body with hygienic finish

• Tri clamp and weld OD ends to BS4825

• Sizes from 0.5" to 2"

• In-line serviceable centre section

• Spring return and double acting options

• Solenoid valve with 24VDC, 110VAC and 230VAC coil options

• Switchbox for open and closed position feedback
