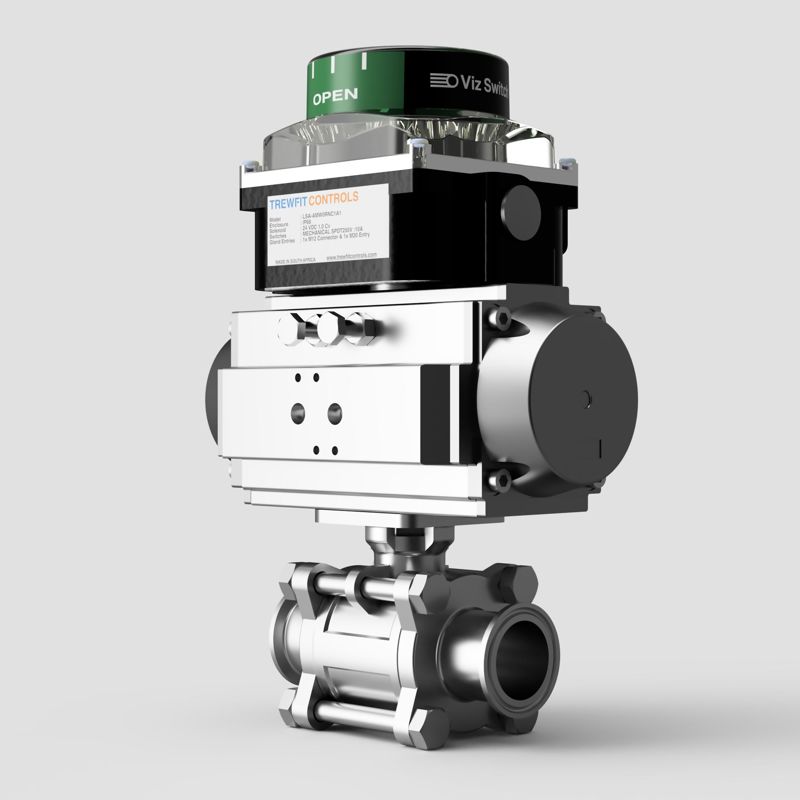

V-Tork Pneumatic Actuated Hygienic Tri Clamp-Weld OD Ball Valve / Switchbox

Product Description

The V-Tork Pneumatic Actuated Hygienic Tri Clamp-Weld OD Ball Valve with Switchbox combines a three-piece hygienic stainless steel ball valve with a V-Tork pneumatic actuator and switchbox for automated flow control with valve position feedback.

The valve body is stainless steel with a hygienic internal finish and is available with tri clamp or weld OD ends to BS4825. The three-piece construction allows the centre section to be removed for cleaning, inspection and seat replacement without taking the end connections out of the line.

The pneumatic actuator provides quarter-turn operation using a compressed air supply in either spring return or double acting form, while the fitted switchbox provides open and closed position indication for remote monitoring of the valve status.

Key Features:

• V-Tork pneumatic actuator

• Three-piece hygienic ball valve

• Stainless steel body with hygienic finish

• Tri clamp and weld OD ends to BS4825

• Sizes from 0.5" to 2"

• In-line serviceable centre section

• Spring return and double acting options

• Switchbox for open and closed position feedback

• Suitable for food, beverage, dairy and pharmaceutical process lines
