V-Tork Pneumatic Actuated Heavy Duty Carbon Steel Ball Valve

Product Description

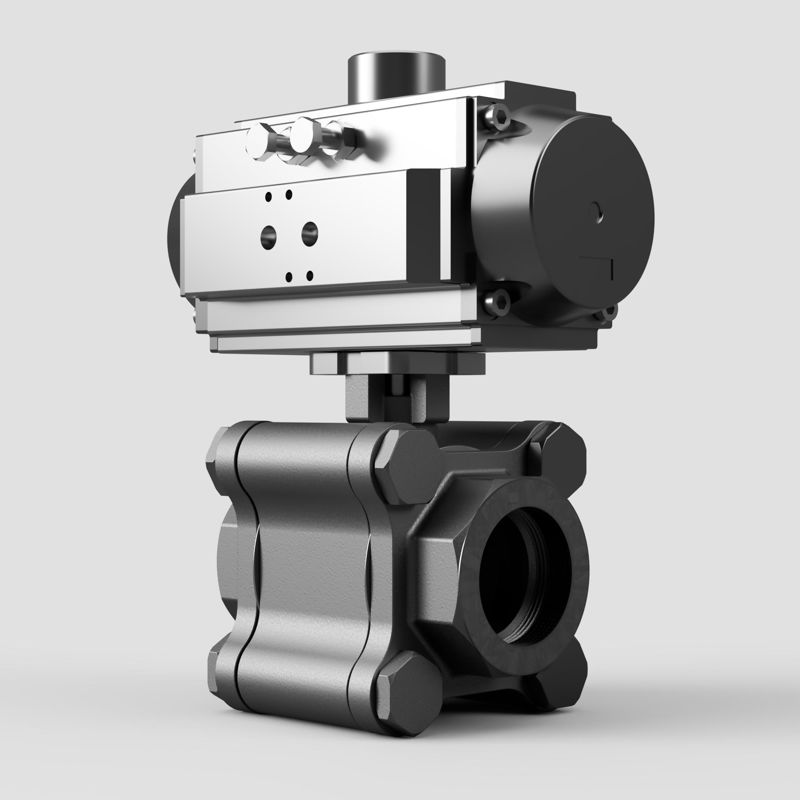

The V-Tork Pneumatic Actuated Heavy Duty Carbon Steel Ball Valve combines a three-piece full bore heavy duty carbon steel ball valve with a V-Tork pneumatic actuator for automated flow control in demanding industrial and process duties.

The valve body is cast in carbon steel A216 WCB with a 2000 PSI rating and is available with screwed BSP, screwed NPT or socket weld end connections. The heavy duty three-piece construction allows the centre section to be removed for seat and seal replacement without taking the end connections out of the line.

The pneumatic actuator provides fast quarter-turn operation using a compressed air supply and is available in spring return or double acting form, making the assembly suitable for applications where remote or automated isolation is required.

Key Features:

• V-Tork pneumatic actuator

• Heavy duty three-piece full bore ball valve

• Carbon steel A216 WCB body

• 2000 PSI rated

• Screwed BSP, screwed NPT and socket weld ends

• In-line serviceable centre section

• Spring return and double acting options

• Automated quarter-turn operation

• Suitable for demanding industrial and process systems
