Electric Valpes/TTV Actuated Butterfly Valves

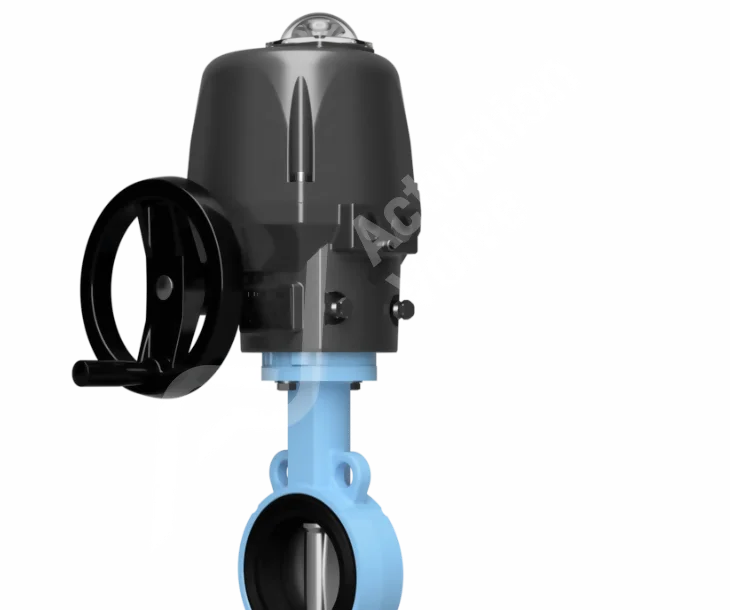

The TTV 20W3040 Actuated Wafer Pattern Butterfly Valve boasts a Ductile Iron Body coated with Rilsan, accompanied by a CF8M Stainless Steel Disc and a 304 Stainless Steel Shaft. Its streamlined, one-piece body design, characterised by four entering lugs, facilitates straightforward installation between two flanges at intermediate locations within the process pipeline. Valpes Electric Actuators are designed to offer both versatility and quality, providing a reliable solution for various applications.
Shop

Key Features

Key features and benefits of the 20W3040 Valpes Actuated Butterfly Valves.
1

Key Features

Valpes Electric Actuators are engineered to offer versatility, catering to a wide range of applications. The focus on quality ensures reliable and consistent performance in diverse settings.
2

Key Features

Suitable for General Purpose applications for a range of industries the 20W3040 is both economical and versatile.
3

Key Features

Supporting multiple voltage options means that Valpes Actuators can be seamlessly integrated into electrical systems with varying voltage requirements, enhancing compatibility and ease of installation.

Valpes Actuated 20W3040 Butterfly Valves

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff
Body Material: GJS500-7 Ductile Iron Rilsan Coated
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, position feedback is available on this actuated butterfly valve. A switch box can be fitted to provide open and closed position indication, with options for zoned and safe area installations including LED visual indication.

We offer discounts on larger order quantities of this ductile iron wafer actuated butterfly valve. Contact our sales team with the size, quantity and specification you need and we will provide a tailored quotation.

Yes, this Valpes electric actuator supports multiple voltage options, allowing it to be integrated into electrical systems with varying voltage requirements. This improves compatibility and simplifies installation across different site setups.

Yes, if you need a size outside our standard range for this ductile iron wafer actuated butterfly valve, get in touch with our sales team. Provide the valve size, body material and connection type you require and we will confirm availability and lead time.

Yes, we can deliver directly to your customer. Send us a copy of your delivery note and we will attach it to the box so your customer sees your company details, not ours.

Yes, we offer credit accounts for regular customers. Get in touch with our sales team to apply, and once approved you can order on account rather than paying upfront each time.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

Bureau Veritas
  • PDF
CERTIFICATES & APPROVALS

ABS
  • PDF
CERTIFICATES & APPROVALS

ATEX 2014/34/UE
  • PDF
CERTIFICATES & APPROVALS

ACS
  • PDF
CERTIFICATES & APPROVALS

PED 2014/68/UE
  • PDF
CERTIFICATES & APPROVALS

Lloyds ISO 9001

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C

Take A Seat

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
