Wafer Aluminium Bronze Koei UNIC Electric Actuated Valves

Construction materials including Bronze, Aluminium Bronze and Monel and additional High Alloy materials make Actuation Valve the first choice supplier to many leading Marine based companies with the ability to deliver rapid solutions for almost any application. Our UNIC line of electric actuators have been designed specifically for industrial applications where space is at a premium. These lightweight units offer all the features and benefits found in standard models with none of associated weight or unwanted size. Extensive range of stocked butterfly valves lets us provide many materials. With component form availability, we're able to interchange disc and seat components accordingly so that you can get the exact specification you require with quick turnaround.

Key Features

Key features and benefits of the 80WM580EK Actuated Butterfly Valves.
1

Key Features

The Koei UNIC electric actuator has a maintenance-free design, which eliminates one of the biggest expenses in using an electric actuator. It also boasts an average of 50% longer lifespan than other models on the market today.
2

Key Features

The Koei UNIC actuator has an accurate position indicator that allows you to see if your valve or damper is in open or closed position. The window on top protects it from general industrial applications, making this actuator more reliable for many different industries.
3

Key Features

Our bronze butterfly valves are made from high quality castings with low porosity levels so they last longer and perform better than others on the market. The durability of bronze ensures long-lasting performance while reducing maintenance costs over time.

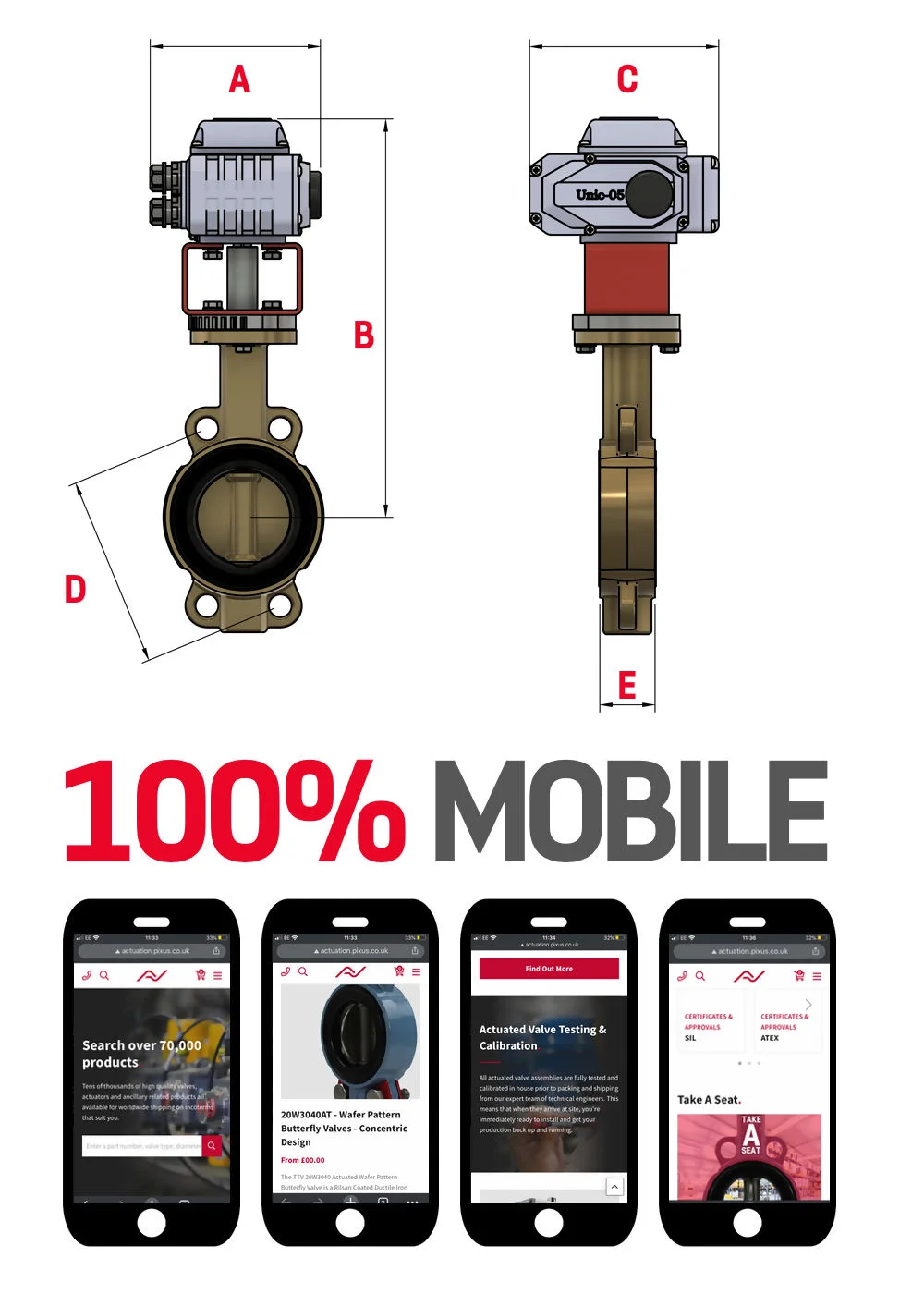

Wafer Type Butterfly Valve Technical

A B C D E Model
1.5" 145.00 316.00 159.00 TBA 33.00 UNIC 05
2" 145.00 332.00 159.00 TBA 43.00 UNIC 05
2.5" 145.00 337.00 159.00 TBA 46.00 UNIC 05
3" 145.00 345.00 159.00 TBA 46.00 UNIC 05
4" 155.00 389.00 208.00 TBA 52.00 UNIC 10
5" 187.00 416.00 257.00 TBA 56.00 UNIC 20
6" 187.00 425.00 257.00 TBA 56.00 UNIC 20
8" 187.00 465.00 257.00 TBA 60.00 UNIC 40
10" 272.00 484.00 381.00 TBA 68.00 UNIC 60
12" 272.00 516.00 381.00 TBA 78.00 UNIC 100
14" 272.00 536.00 381.00 TBA 78.00 UNIC 150
16" TBA TBA TBA TBA TBA TBA
18" TBA TBA TBA TBA TBA TBA
20" TBA TBA TBA TBA TBA TBA
22" TBA TBA TBA TBA TBA TBA
24" TBA TBA TBA TBA TBA TBA

Wafer Type Butterfly Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: GJS500-7 Ductile Iron Rilsan Coated
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for sea water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C

Take A Seat
