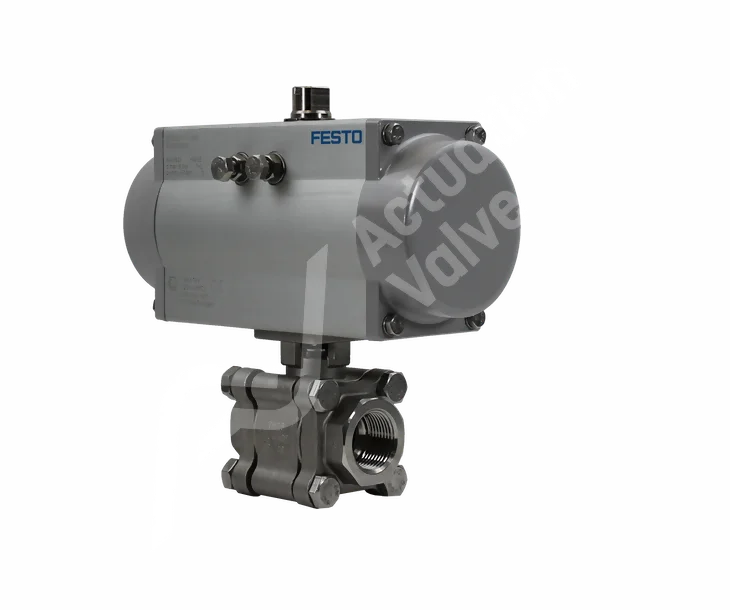

Heavy Duty Festo Actuated Stainless Steel Ball Valves

The valve features a direct mount actuation pad for quick and easy automation. This allows us to get products out of the door to you quicker whilst also reducing the overall footprint of package and most importantly wight and cost. When you need a high quality valve that can stand up to the toughest conditions and last through years of continuous use, look no further than our AV-L8000FS Heavy Duty Ball Valve. This model features PTFE TFM 4215 ball seats with grafoil stem sealing. The Festo Pneumatic Actuator makes quarter turn automation possible and provides a solution for many applications. It does not require any external control devices or sensors and can be operated by means of compressed air from an existing pneumatic system.

Key Features

Key features and benefits of AV-L8000FE, AV-L8100FE & AV-L8200FE Actuated Ball Valves.
1

Key Features

The new DFPD Series from Festo provides you with a versatile line of pneumatic actuators that can help you meet your automation needs while keeping within budget constraints. The innovative product design is compact and lightweight with high performance in harsh environments.
2

Key Features

The AV-L8000FS Ball Valve is an excellent choice for high volume pneumatic systems because it has low torque requirements, which reduce the costs of Actuated Valves with smaller actuators able to automate valves usually demanding large units.
3

Key Features

Festo’s pneumatic actuation technology provides an affordable alternative that is easy to install, operate and maintain. Our products offer exceptional performance at a fraction of the cost you'd expect from traditional designs.

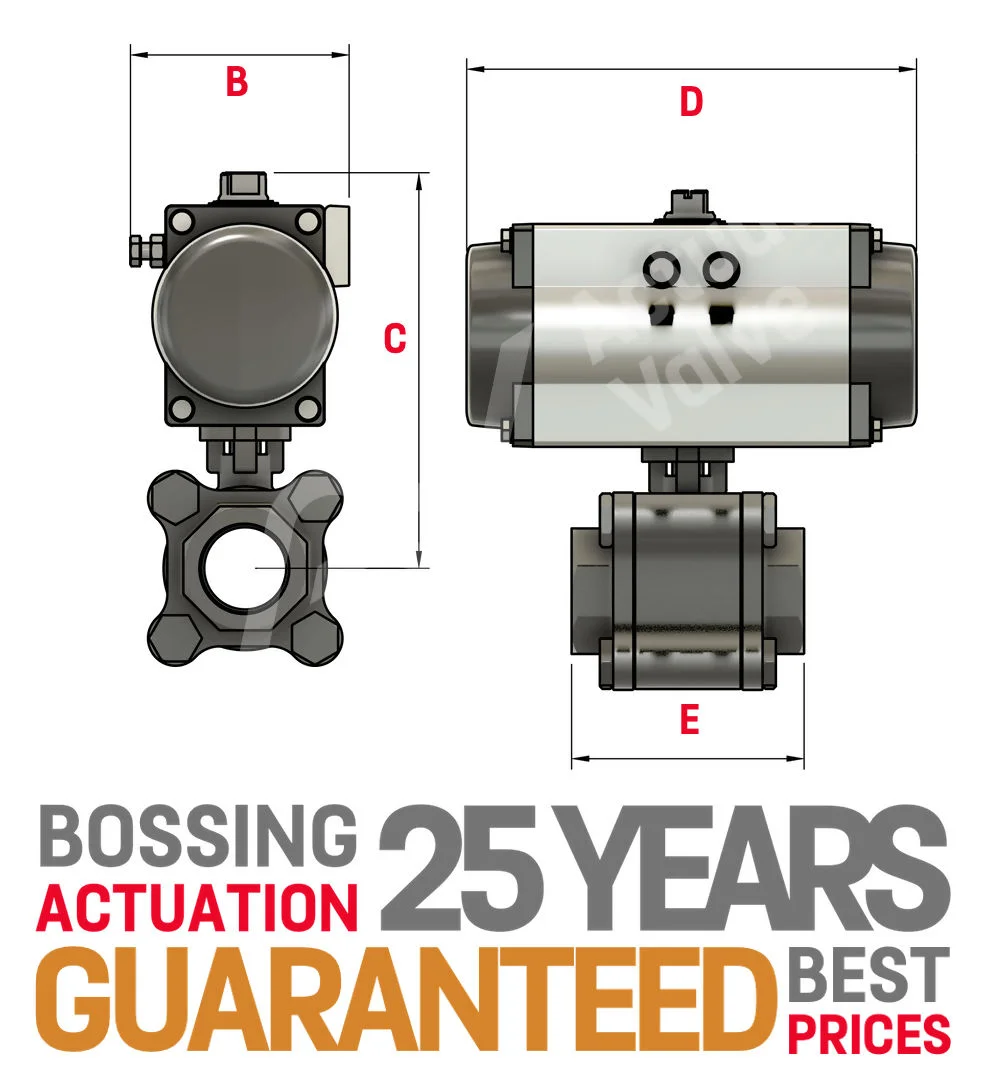

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 77.70 143.00 145.70 75.00 77.70 143.00 133.30 75.00
3/8" 77.70 143.00 145.70 75.00 77.70 143.00 133.30 75.00
1/2" 77.70 143.00 145.70 75.00 77.70 143.00 133.30 75.00
3/4" 77.70 151.00 145.70 80.00 77.70 151.00 133.30 80.00
1" 89.70 170.00 170.40 90.00 77.70 158.00 133.30 90.00
1 1/4" 89.70 175.00 170.40 110.00 77.70 163.00 133.30 110.00
1 1/2" 108.00 205.00 223.10 120.00 89.70 187.00 151.40 120.00
2" 108.00 216.00 223.10 140.00 108.00 216.00 189.30 140.00
2.5" TBA TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA TBA

Screwed/Socket Weld 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Butt Weld Technical Stuff

Butt Weld Valve 3D Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 77.70 143.00 145.70 70.00 77.70 143.00 133.30 70.00
3/8" 77.70 143.00 145.70 70.00 77.70 143.00 133.30 70.00
1/2" 77.70 143.00 145.70 75.00 77.70 143.00 133.30 75.00
3/4" 77.70 151.00 145.70 90.00 77.70 151.00 133.30 90.00
1" 89.70 170.00 170.40 100.00 77.70 158.00 133.30 100.00
1 1/4" 89.70 175.00 170.40 110.00 77.70 163.00 133.30 110.00
1 1/2" 108.00 205.00 223.10 125.00 89.70 187.00 151.40 125.00
2" 108.00 216.00 223.10 150.00 108.00 216.00 189.30 150.00

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: ISO 7-1 (DIN 2999)
NPT Ends: ASME B1.20.1
Socket Weld Ends: ASME B16.11
Butt Weld Ends: ASME B16.25 (Sch 80)

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The Festo CMSX Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the CMSX can help with your process requirements.
