Rotork Actuators

The Rotork ROM Electric Actuator is a highly reliable solution for diverse applications and environments. Its design prioritizes proven reliability, ensuring consistent performance when it matters most. By leveraging time-tested technology, it minimizes maintenance needs, allowing businesses to focus on profitability rather than downtime due to mechanical or electrical issues. Furthermore, it offers flexibility as both a standalone unit and part of a networked site system, providing end users with options for seamless site standardisation. This adaptability and track record of success make the Rotork ROM a dependable choice for a wide range of applications.

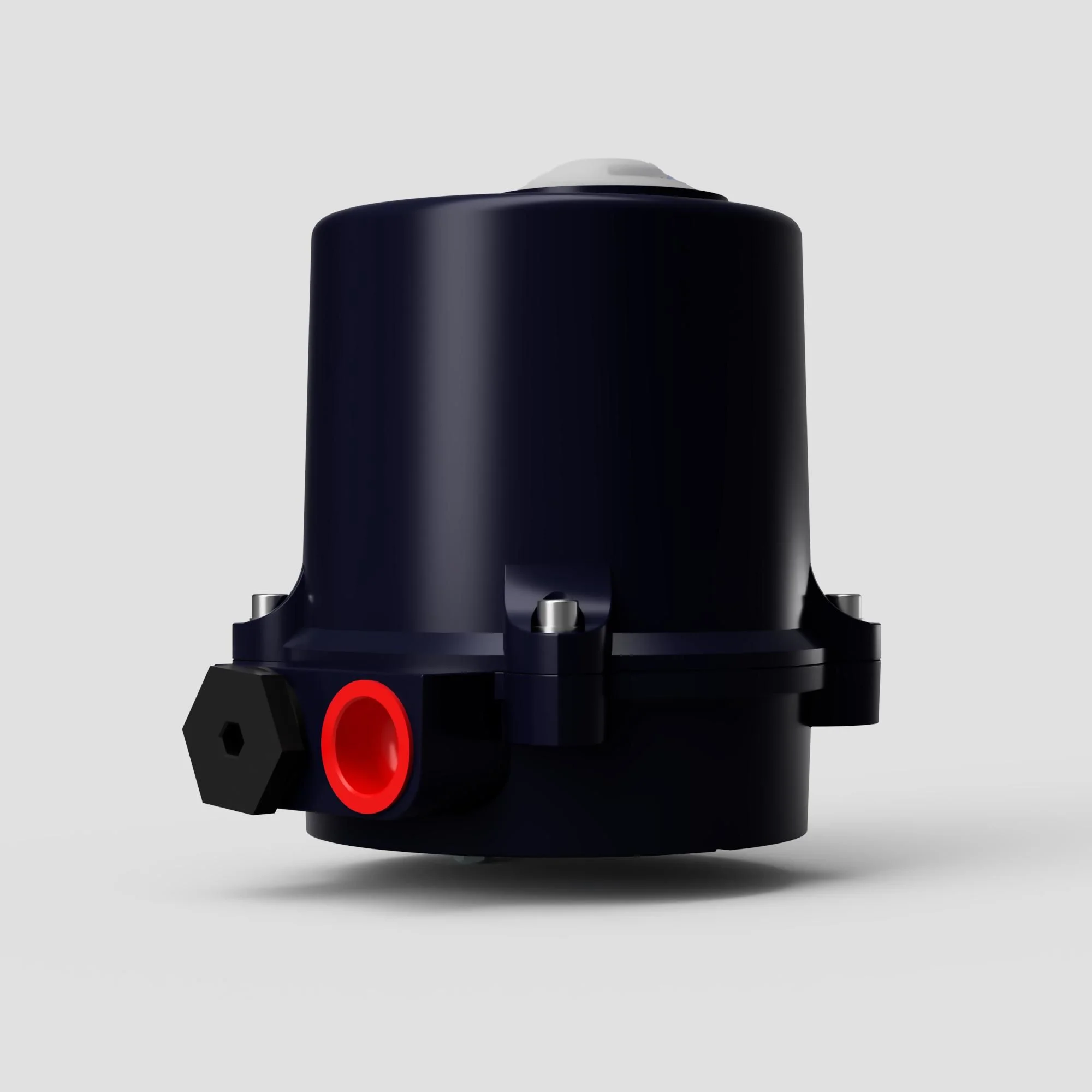

Rotork ROM Electric Quarter Turn Valve Actuators

The Rotork ROM Electric Actuator is an electric actuator that provides a reliable solution for a wide range of applications and environments. It's designed with proven reliability in mind so you can be confident in its performance when things matter most. The Rotork ROM electric actuator uses proven technology that has been used for decades to ensure long-term reliability with minimal maintenance requirements. This means you can focus on profitability rather downtime due to mechanical failures or electrical problems. The Rotork ROM is available as both an analogue stand alone unit or as part of a network fully networked site system integration. This provides the end user with options for complete site standardisation.

Function: On/Off
Body Material: Aluminium Alloy, Dry Powder Coated
Rotation: 90°
Torque Levels: 35-800NM
Temperature Rating: -30 to +70ºC Maximum
Voltages: 110VAC, 230VAC, 12VDC, 24VDC, 24VAC, 380 VAC, 440VAC, 3-Phase
Standard Options: Manual Override, Visual Position Indication, Feedback Switches
Find Out More

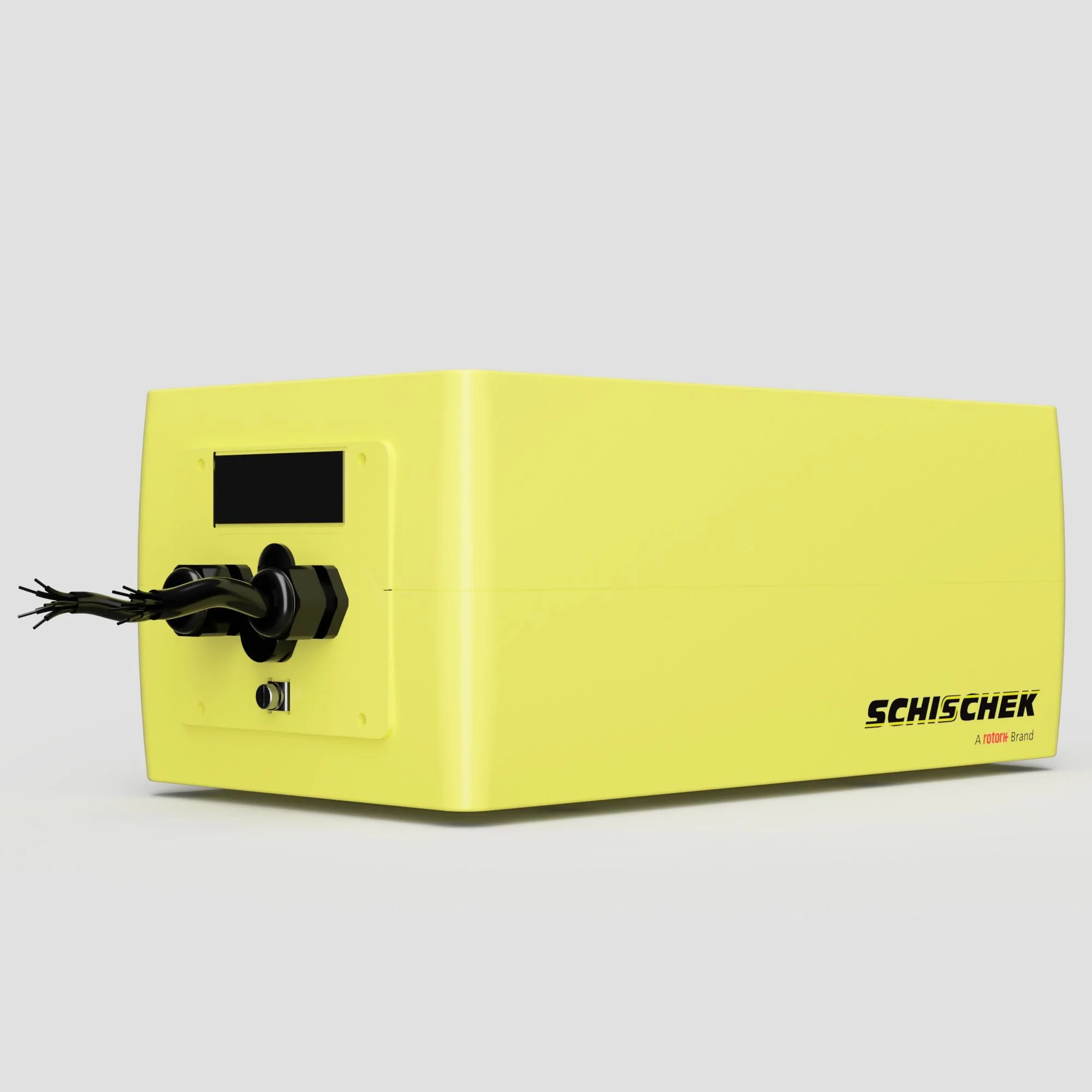

Schischek Electric Actuator

Schischek Electric Actuators are renowned for their outstanding dependability and robustness, engineered to endure demanding operational environments, encompassing extreme temperatures, corrosive surroundings, and high-intensity usage. They boast sophisticated control and monitoring capabilities, including functionalities like position feedback, torque sensing, and intelligent control algorithms. Moreover, certain models are equipped with integrated diagnostics and communication interfaces, facilitating effortless remote monitoring and control.

Function: On/Off
Body Material: Aluminium Alloy, Dry Powder Coated
Rotation: 90°
Torque Levels: 35-800NM
Temperature Rationg: -30 to +70°C Maximum
Voltages: 110VAC, 230VAC, 12VDC, 24VDC, 24VAC, 380VAC, 440VAC, 3-Phase
Standard Options: Manual Override, Visual Position Indication, Feedback Switches
Find Out More

Looking for a Reliable Scotch Yoke Actuator?

The Rotork RC range of pneumatic scotch yoke actuators is designed for applications requiring high breakaway and end-of-stroke torque. Available in double-acting and spring-return configurations, the RC series combines a compact design with an efficient scotch yoke mechanism to deliver dependable performance, low air consumption and long service life.
Learn more

Frequently Asked Questions

Rotork manufactures electric, pneumatic, hydraulic and electro-hydraulic valve actuators. The Rotork actuator range covers multi-turn, quarter-turn (part-turn) and linear valve automation, so there's a Rotork actuator for almost any isolating, control or fail-safe valve duty across process, water, oil and gas, power and HVAC applications.

A Rotork actuator automates the opening, closing and modulating of valves and dampers that would otherwise be operated by hand. Rotork valve actuators are used for on/off isolation, continuous modulating control and emergency shutdown (ESD), giving remote, repeatable and safe operation of ball, butterfly, gate, globe and plug valves.

The Rotork IQ range is the company's flagship intelligent electric multi-turn actuator, with the latest generation being the IQ3. Rotork IQ actuators feature non-intrusive Bluetooth setup, a double-sealed IP66/68 watertight enclosure, and on-board data logging for predictive maintenance, making them a popular choice for automating gate and globe valves.

Multi-turn Rotork actuators (such as the IQ range) rotate several turns to drive rising-stem valves like gate and globe valves, while quarter-turn Rotork actuators (such as the IQT electric range or RC200 pneumatic range) rotate 90° to operate ball, butterfly and plug valves. Choosing between multi-turn and quarter-turn depends on your valve type and required torque or thrust.

Yes — Rotork offers ATEX, IECEx and explosion-proof certified actuators for use in hazardous and potentially explosive atmospheres. Many Rotork electric and fluid power actuators are also SIL-rated to IEC 61508 for safety-related and ESD systems, and the Rotork Schischek range specifically covers explosion-proof HVAC actuator duty.

The Rotork CVA (Continuous Valve Actuator) is an electric modulating actuator built for precise, high-resolution control of linear and rotary control valves. Rotork CVA actuators deliver accurate positioning for continuous-duty control loops, offering an all-electric alternative to pneumatic control-valve actuators.

Rotork's fluid power range includes pneumatic and hydraulic quarter-turn and linear actuators such as the GT, GH and RC200 scotch-yoke ranges. These Rotork pneumatic actuators use compressed air (or hydraulic fluid) to automate quarter-turn valves, and are available in double-acting and spring-return fail-safe configurations.

Rotork Skilmatic actuators are self-contained electro-hydraulic actuators that combine the simplicity of electric operation with the reliability of hydraulic fail-safe action. The Skilmatic SI range gives spring-return fail-safe open or close on loss of power or signal, making it ideal for ESD and safety shutdown valve applications.

Yes — Rotork actuators support remote monitoring, control and asset management through systems such as Pakscan, Modbus, Profibus, Foundation Fieldbus and HART, plus Bluetooth setup and Rotork Intelligent Asset Management. This lets operators pull diagnostics and data logs from Rotork valve actuators to plan predictive maintenance and reduce downtime.

The Rotork CK range is a modular electric actuator platform offering flexible, cost-effective automation of multi-turn and quarter-turn valves, while the Rotork CMA range is a compact modulating actuator for control-valve duty. Both extend the Rotork electric actuator offering into smaller and mid-range valve applications.

Selecting the correct Rotork actuator depends on your valve type (multi-turn or quarter-turn), the required torque or thrust, the duty (on/off, modulating or fail-safe), the power source available (electric, pneumatic or hydraulic) and the area classification (safe or ATEX hazardous area). Share your valve details and we'll size and specify the right Rotork actuator for the job.

Actuation Valve & Control is a UK supplier and stockist of Rotork actuators, available as bare actuators or fitted to valves as complete automated packages. We can supply electric, pneumatic and fail-safe Rotork actuators, size them to your valves, fit accessories, and provide spares and retrofit support — contact our team for UK pricing, stock and lead times.

FAQ

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

Rotork Actuators

Actuation Valve & Control Ltd have a strong relationship with Rotork & have specified their Electric Actuators into many End Users and Countries Worldwide, including Chevron & Exxon Mobil. We have an excellent knowledge of their products, set up and capabilities to offer solutions to all industries and applications. If you feel that a Rotork could be just what you are looking for please contact us directly and one of our Sales Engineers will be able guide you with not only the correct, but cost effective unit from the range.
