3-Way Full Bore Rotork ROM Electric Actuated Ball Valves

The AV-L5300ROM & AV-L5400ROM L & T port full bore actuated ball valves offer a full flow diverting solution for 90 and 180 degree operation. 1000 PSI of pressure enable this valve to be used in almost all process and industrial applcations with a casting approved by TUV. 3-Way Ball Valves are available as an L Port or T Port can be used in heating and hot water applications to regulate temperature. The valves control the flow of liquid passing through them to either allow flow in one direction or another, or divert flow from one path to another. With its gear trains pre-lubricated at the factory, Rotork provides a more reliable and efficient way to operate your valves and dampers. The specially formulated lubricant offers extended life cycles whilst also covering temperature options for various ambient conditions during operation.

Key Features

Key features and benefits of AV-L5300ROM & AV-L5400ROM Actuated Ball Valves.
1

Key Features

The AV-L5300 & 5400 Full Bore 3-Way Diverter Ball Valve is an excellent choice for high volume pneumatic systems because it has low torque requirements, which reduce the costs of Actuated Valves with smaller actuators able to automate valves usually demanding large units.
2

Key Features

The Rotork ROM electric actuator offers electric valve operation in ambient temperatures ranging from -30 to +70 ºC making it suitable for many demanding environments. The variance in high or low temperature operations make the ROM one of the most versatile electric actuators available.
3

Key Features

Rotork have over 60 years of flow control and electric actuator manufacturing experience with continuous product development. The ROM is recognised as a market leading electric valve actuator at the forefront of Rotork's technology offering.

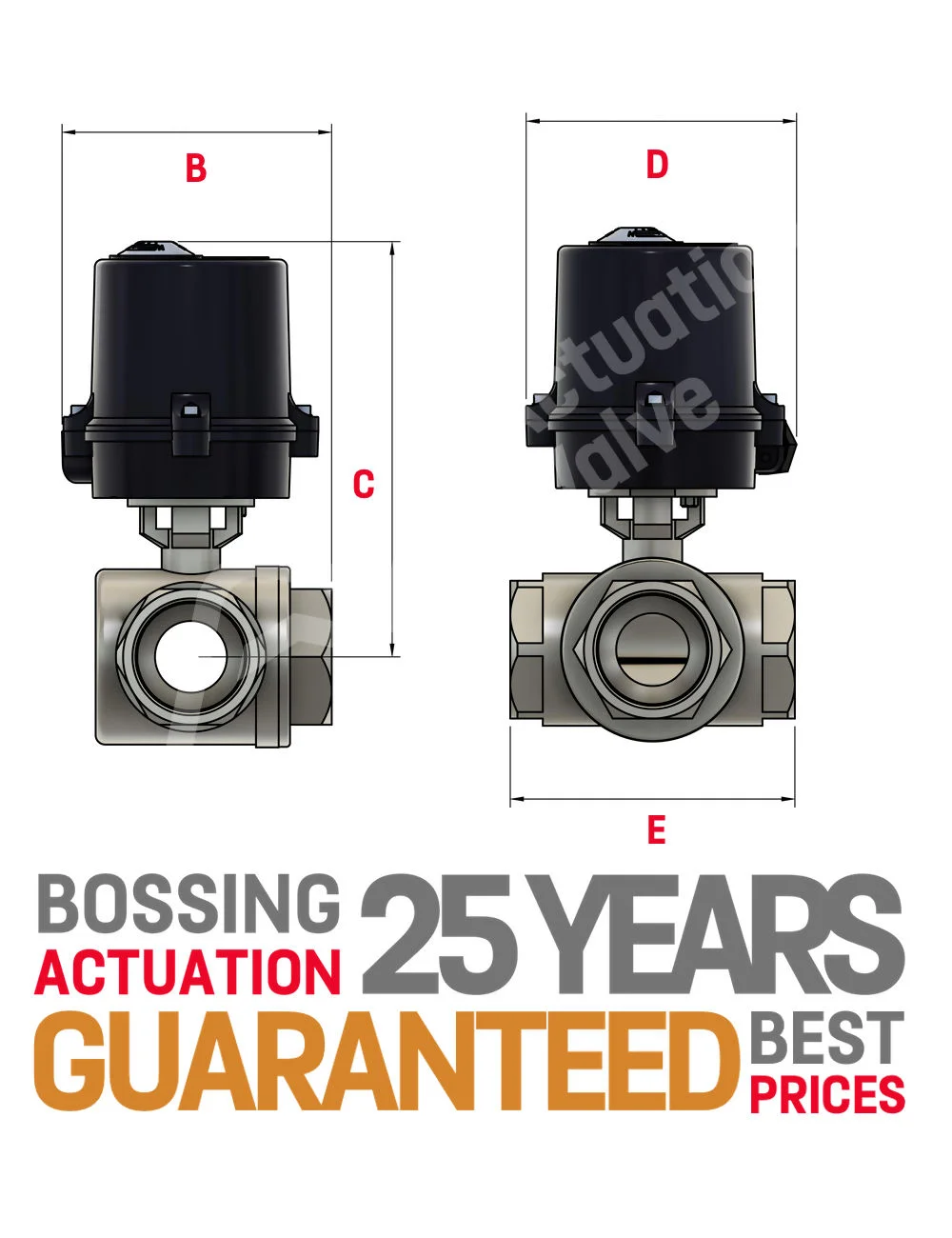

FB 3-Way Ball Valve Technical Stuff

B C D E Model
1/4" TBA 179.00 114.00 79.00 ROM-1
3/8" TBA 179.00 114.00 79.00 ROM-1
1/2" TBA 185.00 114.00 88.00 ROM-1
3/4" TBA 195.50 114.00 108.00 ROM-1
1" TBA 199.00 114.00 124.00 ROM-1
1 1/4" TBA 209.50 114.00 135.00 ROM-1
1 1/2" TBA 251.80 114.00 164.00 ROM-1
2" TBA TBA TBA TBA TBA
2.5" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

FB 3-Way Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 7-1

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
