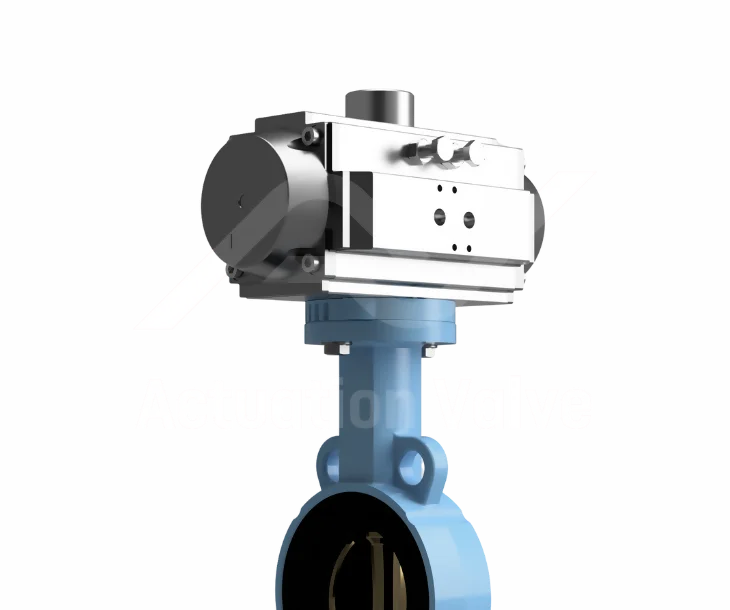

V-Tork Actuated Bronze Disc Wafer Butterfly Valves are designed for efficient flow control in various industrial applications. Featuring a durable bronze disc and a wafer-type body, these valves offer reliable performance and longevity. The actuated mechanism ensures precise operation, making them ideal for systems requiring frequent adjustments. With their compact design, V-Tork valves fit seamlessly into tight spaces, providing excellent flow regulation and minimising maintenance needs, enhancing system efficiency.

Shop Help Me

Key features and benefits of V-Tork Actuated Bronze Disc Wafer Butterfly Valves

Key Features

The 20W3080 Bronze Disc Actuated Butterfly Valves are commonly used for seawater applications where they external body of the Valve is not directly exposed to the elements of corrosive environment.

Key Features

Our standard corrosive resistant Butterfly Valves are available in a wide range of sizes to suit all industry standards with 2" to 12" Butterfly Valves all available from stock in ANSI or DIN Flanged Connections.

Key Features

The V-Tork Pneumatic Rack & Pinion Actuators are engineered to deliver high precision control in a compact form factor. Their streamlined design ensures they occupy minimal space while providing precise and reliable operation.

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of V-Tork actuators, ready for immediate dispatch.

V-Tork actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

When you choose V-Tork actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

CERTIFICATES & APPROVALS

Material	Applications	Temperature
EPDM	Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines	-20°C +110°C
High Temperature EPDM	Super Heated Water	-20°C +130°C
NBR Buna	Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air	-10°C +80°C
Hypalon	Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions	-10°C +80°C
Viton	Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels	-5°C +180°C
Polyisoprene	Water, Alcohols, Abrasive Substances (Call To Check), Ketones,	-10°C +60°C
Silicone	Low & High Temperature Resistance Applications	-30°C +150°C
High Temp Silicone	Super Heated Water	-50°C +160°C
Epichlorohydrin	Ozone Resistance, Hydrocarbons, Aromatic Oils	-25°C +145°C

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Document

Brochure

Document

BROCHURE

Document

BROCHURE

Document

BROCHURE

Document

BROCHURE

Document

Brochure

Document

BROCHURE

Document

BROCHURE

Document

BROCHURE

Document

Certificate

Document

CERTIFICATE

Document

CERTIFICATE

Document

Certificate

Document

CERTIFICATE

Document

Certificate

Document

CERTIFICATE

Document

CERTIFICATE

Document

Certificate


Body Material:	GJS500-7 Ductile Iron Rilsan Coated
Seats Material:	EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard:	Concentric, Soft Seat
Face To Face:	EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing:	EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections:	PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing:	ISO 5208, 100% Tight Shut Off, API 598

Yes, this Valve is suitable for sea water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, a switch box can be fitted to this V-Tork actuator to provide open and closed position feedback, with options available for safe area and hazardous area installations, including LED visual indication.

Pricing depends on the valve size, seat material and quantity you require. Contact our sales team with details of your project and we will provide a tailored quotation, including any volume pricing available for larger or repeat orders.

Yes, the V-Tork pneumatic rack and pinion actuator is available with ATEX and IECEx approvals for use in hazardous area installations, along with SIL3 certification for safety-related applications. Let us know your area classification and we can confirm the right specification for your project.

This range is available from 2 inch to 12 inch as standard, supplied from stock with ANSI or DIN flanged connections. If you require a larger size or a non-standard configuration, contact our sales team with your specification and we will confirm availability and lead time.

Yes, we can deliver direct to your customer. Send us a copy of your delivery note and we will attach it to the outer packaging so it arrives ready for them, with no reference to our details.

Yes, we offer credit accounts for business customers. Complete a short application with your company details and trading history, and once approved you will be able to order on account. Contact our sales team to get started.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.
