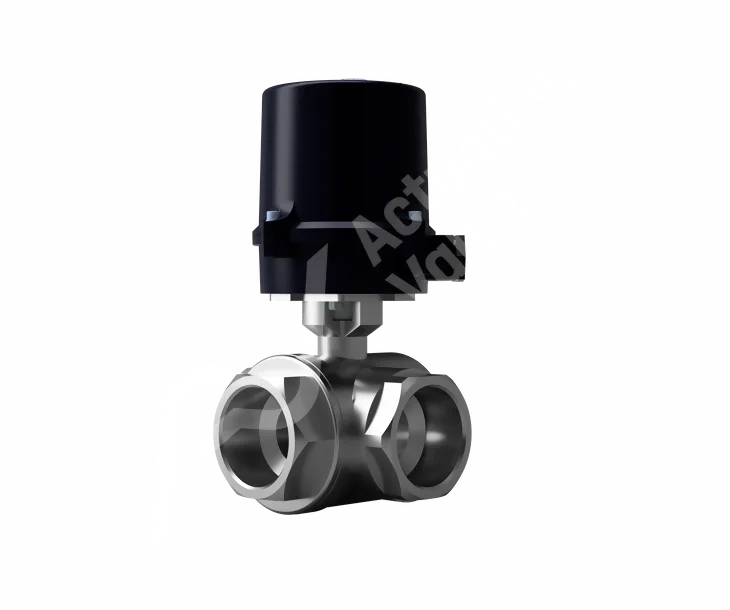

3-Way Reduced Bore BSPP Rotork Actuated Ball Valves

The AV-L5000ROM & AV-L5100ROM L & T port ball valves offer a cost effective process diverting operation. Whether you are looking for an electric 3-way ball valve that requires gradual or rapid opening and closing times actuation valve can offer a easy fit solution for screwed pipelines. The ISO 5211 mounting pad allows actuation of the valve without the use of a mounting bracket so all assembly and testing procedures can be processed immediately after your order has been placed. All actuated valve assemblies can be supplied with operations and maintenance manuals free of charge. Available in screwed connections NPT & BSP the versatile and economical Valve comes with a WRAS (Water Regulations Advisory Scheme) Certified TFM 1600 PTFE Seat which is also FDA approved. The Rotork ROM Electric Actuator provides continuous position indication at all times, even without power. This allows the end user to always monitor exactly where the valve or damper position is within its 90 degree cycle.

Key Features

Key features and benefits of AV-L5000ROM & AV-L5100ROM Actuated Ball Valves.
1

Key Features

The Rotork ROM electric actuator is compact, lightweight and cost effective for many industrial automation needs. It has been designed to be easy to install and use, saving you time and money on your next project.
2

Key Features

The AV-L5000 & 5100 is an affordable line of high-quality stainless steel ball valves that won't break your budget. These durable products will give you years of trouble-free service at a fraction of the price that other companies charge for similar products.
3

Key Features

Whether you are looking for a an electric actuator that is operated continuously throughout the day or infrequently maybe once per month you can rest assured that the Rotork ROM electric actuator will be there to respond and operate your process line when you need it to.

RB 3-Way Ball Valve Technical Stuff

B C D E Model
1/4" TBA 179.00 114.00 79.00 ROM-1
3/8" TBA 179.00 114.00 79.00 ROM-1
1/2" TBA 179.00 114.00 79.00 ROM-1
3/4" TBA 185.00 114.00 88.00 ROM-1
1" TBA 195.50 114.00 108.00 ROM-1
1 1/4" TBA 199.00 114.00 124.00 ROM-1
1 1/2" TBA 209.50 114.00 135.00 ROM-1
2" TBA 251.80 114.00 164.00 ROM-A
2.5" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

RB 3-Way Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
