Hygienic Tri Clamp-Weld OD Festo Ball Actuator Valves

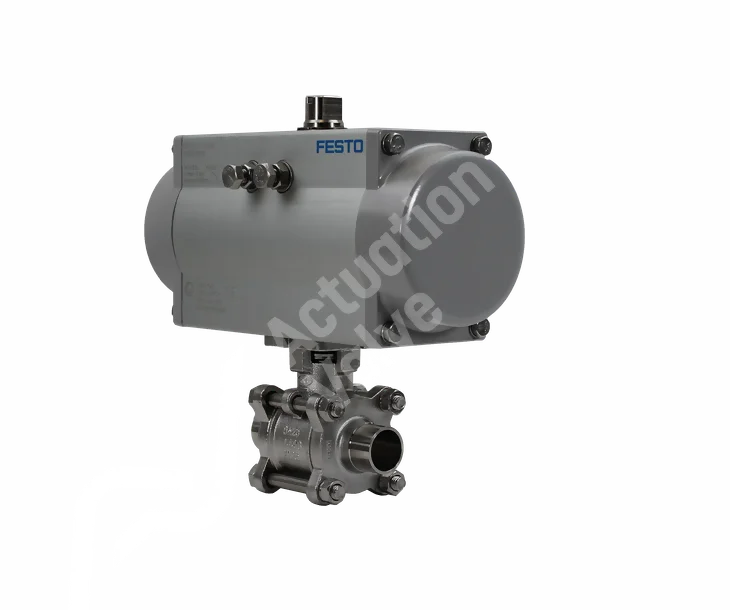

The AV-L91B0FE & AV-L9CB0FE form part of the sanitary and hygienic full bore actuated valve packages from actuation valve. This 3 piece body valve has a swing out centre section that is perfect for scheduled maintenance and seat replacements. The full bore body design and cavity filled seats create a free flow path that does not allow debris or contaminents to build up with temperatures suitable for up to 200 DegC steam cleaning CIP and SIS. Various approvals inlcude FDA & Wras approved seats with a bovine free supply. Festo’s DFPD series is an innovative design that sets itself apart from other pneumatic actuators by providing high performance with low energy consumption and long lifetime under harsh conditions. More importantly, the DFPD does this at an affordable price point. The Festo Pneumatic Actuator is easy to install and simple to use with the option to connect it directly into your existing compressed air supply line and set up an input signal from 0-10V DC or 4-20mA current loop control signals for precise valve positioning with the added CMSX unit.

Key Features

Key features and benefits of AV-L91B0FE & AV-L9CB0FE Actuated Ball Valves.
1

Key Features

Festo has developed the DFPD quarter turn actuator that simplifies pneumatic automation for engineers with little or no experience in pneumatics. With this product, you can build your own automated process valve system without having to worry about valves failing in the field.
2

Key Features

Festo’s pneumatic actuation technology provides an affordable alternative that is easy to install, operate and maintain. Our products offer exceptional performance at a fraction of the cost you'd expect from traditional designs.
3

Key Features

Festo’s Pneumatic Actuators provide high quality solutions for many demanding automation tasks. They offer long service life combined with low wear rates even under harsh conditions for various industries including automotive, electronics and food & beverage processing.

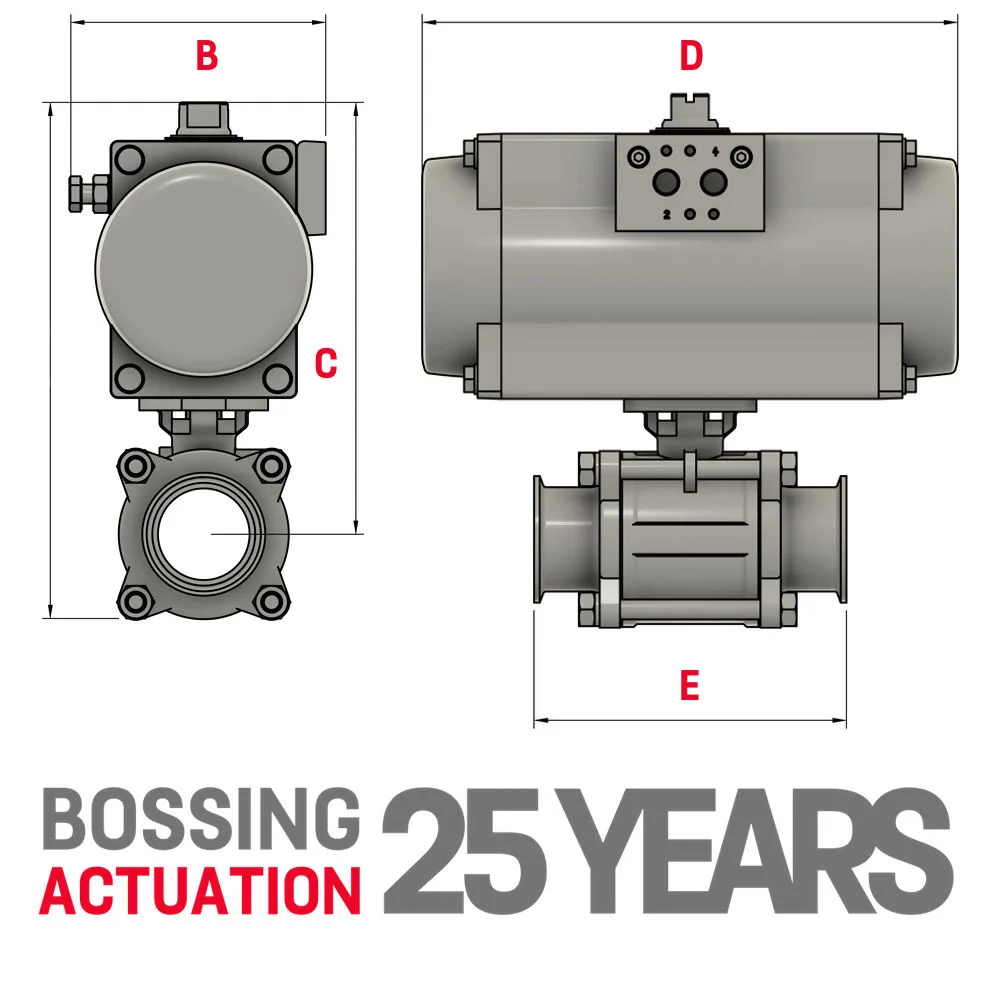

Tri Clamp Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 77.70 142.00 145.70 90.00 77.70 142.00 133.30 90.00
3/4" 77.70 149.00 145.70 90.00 77.70 149.00 133.30 90.00
1" 89.70 170.00 170.40 100.00 77.70 158.00 133.30 100.00
1 1/4" TBA TBA TBA TBA TBA TBA TBA TBA
1 1/2" 108.00 201.00 223.10 125.00 89.70 183.00 151.40 125.00
2" 108.00 208.00 223.10 150.00 108.00 189.30 189.30 150.00
2 1/2" 123.70 243.00 252.30 190.00 108.00 189.30 189.30 190.00
3" 133.40 263.00 270.90 220.00 123.80 213.70 213.70 220.00
4" 154.00 320.00 301.40 270.00 133.40 270.90 270.90 270.00

Tri Clamp 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Weld OD 3D Stuff

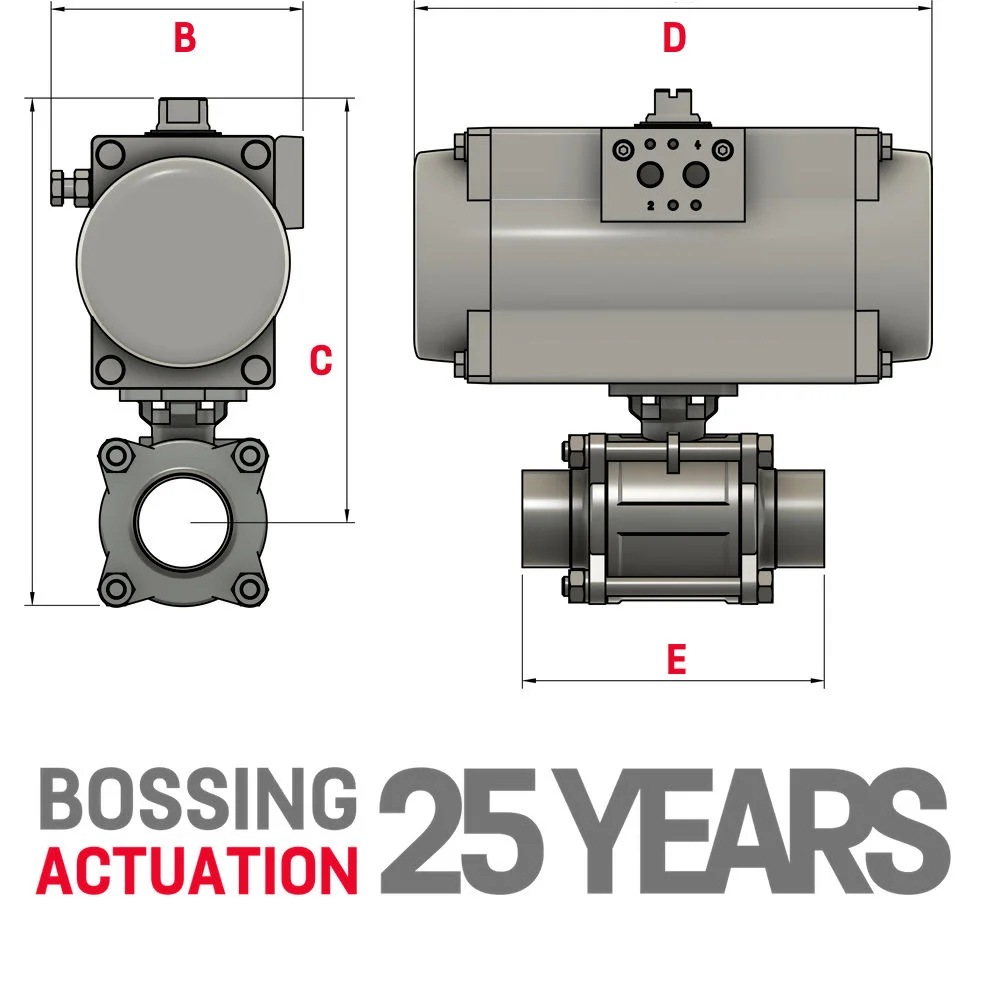

Weld OD Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 77.70 142.00 145.70 90.00 77.70 142.00 133.30 90.00
3/4" 77.70 149.00 145.70 90.00 77.70 149.00 133.30 90.00
1" 89.70 170.00 170.40 100.00 77.70 158.00 133.30 100.00
1 1/4" TBA TBA TBA TBA TBA TBA TBA TBA
1 1/2" 108.00 201.00 223.10 125.00 89.70 183.00 151.40 125.00
2" 108.00 208.00 223.10 150.00 108.00 208.00 189.30 150.00
2 1/2" 123.70 243.00 252.30 190.00 108.00 230.00 189.30 190.00
3" 133.40 263.00 270.90 220.00 123.80 252.00 213.70 220.00
4" 154.00 154.00 301.40 270.00 133.40 294.00 270.90 270.00

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600® Cavity Filled Seats & Seals
Seat Approvals: 3A, FDA & Wras Approved
Cleaning: Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard: MSS SP-110, BS4825
Surface Finish: Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing: MSS SP-110
Face 2 Face: ASME B16.10
Pressure Rating: 400 PSI

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The Festo CMSX Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the CMSX can help with your process requirements.
