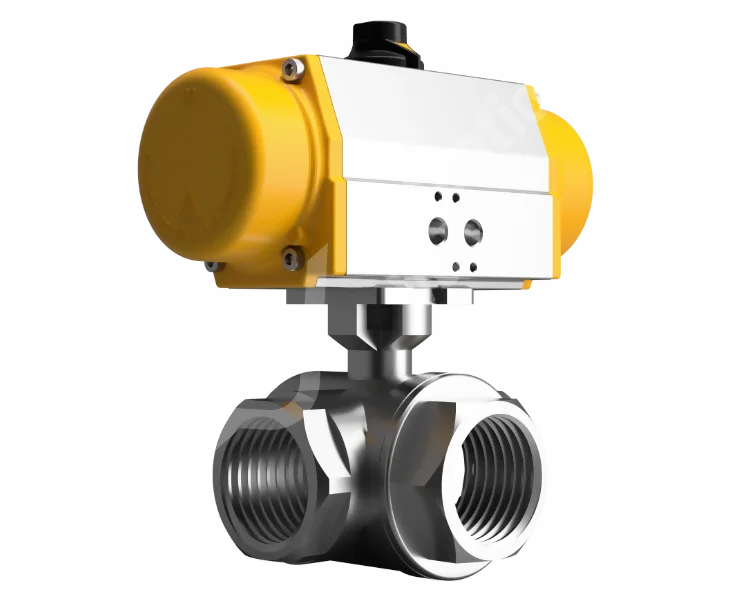

3-Way BSPP Reduced Bore AV-Ventus Actuator Valves

This multipart diverter valve package is an excellent option for those dealing with medium aggressive water conditions and harsh external environments. Constructed using high-quality materials from the manufacturer Kingdom Controls, it offers versatility with optional installation for both across line setups, catering to various application requirements, including space-saving needs. It's particularly suitable for inline mounting in applications like hopper line actuation and bagging lines. Additionally, a wide range of stock couplings and brackets are available to suit any valves requiring linkages. AV-Ventus Actuators are designed to be maintenance-free, reducing the need for frequent interventions and ensuring long-term reliability in various applications.
Shop Help Me

Key Features

Key features and benefits of AV-L5000VE & AV-L5100VE Actuated Ball Valves.
1

Key Features

3-Way Ball Valves are versatile components in industrial process systems, primarily used to divert fluid flow from one path to another. They play a crucial role in the process industry, where they are employed to connect, disconnect, or redirect flow between two or more fluid paths. These valves are essential for efficient and flexible control of fluid dynamics in various industrial settings.
2

Key Features

The hard-anodised body of the AV-Ventus Actuator not only provides corrosion resistance but also ensures the actuator can withstand harsh environmental conditions, extending its service life.
3

Key Features

The AV-L5000 & 5100 3-Way Ball Valve, designed for Screwed connections, features a stainless steel body that accommodates either an L or T drilled ball configuration. The L port valve is uniquely drilled at 90 degrees from two different sides, forming an 'L' shape, while the T configuration also includes a straight-through hole, adding to its versatility. This design makes the valve suitable for various industrial applications where precise control of fluid flow is required.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34. EN12516-1
Inspection & Testing: DIN3230/3. EN 12266
Face 2 Face: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Frequent Interrogation

Uflow Actuated Ball Valves are precision-engineered valves designed to control the flow of liquids or gases in industrial systems.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

Yes, Uflow Actuated Ball Valves are designed to handle high-pressure conditions, making them ideal for demanding industrial settings.

Uflow Actuated Ball Valves are rigorously tested and meet industry-specific safety standards to ensure reliability and compliance.

Uflow Actuated Ball Valves can be equipped with materials that resist corrosion, making them suitable for corrosive environments.

Lead times for Uflow Actuated Ball Valves may vary, but the we aim to provide efficient and timely delivery.

Actuated Ball Valves are known for their reliability, quick operation, and suitability for a wide range of applications. They are also easy to automate.

Actuated Ball Valves are commonly used in industries such as oil and gas, water treatment, chemical processing, and HVAC systems.
Actuated Ball Valves can be operated remotely, while Manual Ball Valves require manual turning of a handle or lever.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

AV Ventus Certification and Datasheets

  • PDF
Datasheets

AV Ventus Quarter Turn Pneumatic Actuator
  • PDF
Datasheets

AV Ventus Identification Chart
  • PDF
Datasheets

AV Ventus Torque Chart
  • Document
Certificates

ATEX Certificate

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
