Dikkan Indicated Non Rising Stem F5 Type Gate Valves

Dikkan Indicated Non Rising Stem F5 Long Type Gate Valves are renowned for their efficient design and reliable performance in controlling water flow in industrial settings. These valves feature a non-rising stem, making them ideal for limited-space installations. Known for their durability and precision, they are a preferred choice for professionals seeking effective water management solutions. Their long-type structure ensures compatibility with various systems, solidifying their status in the market.

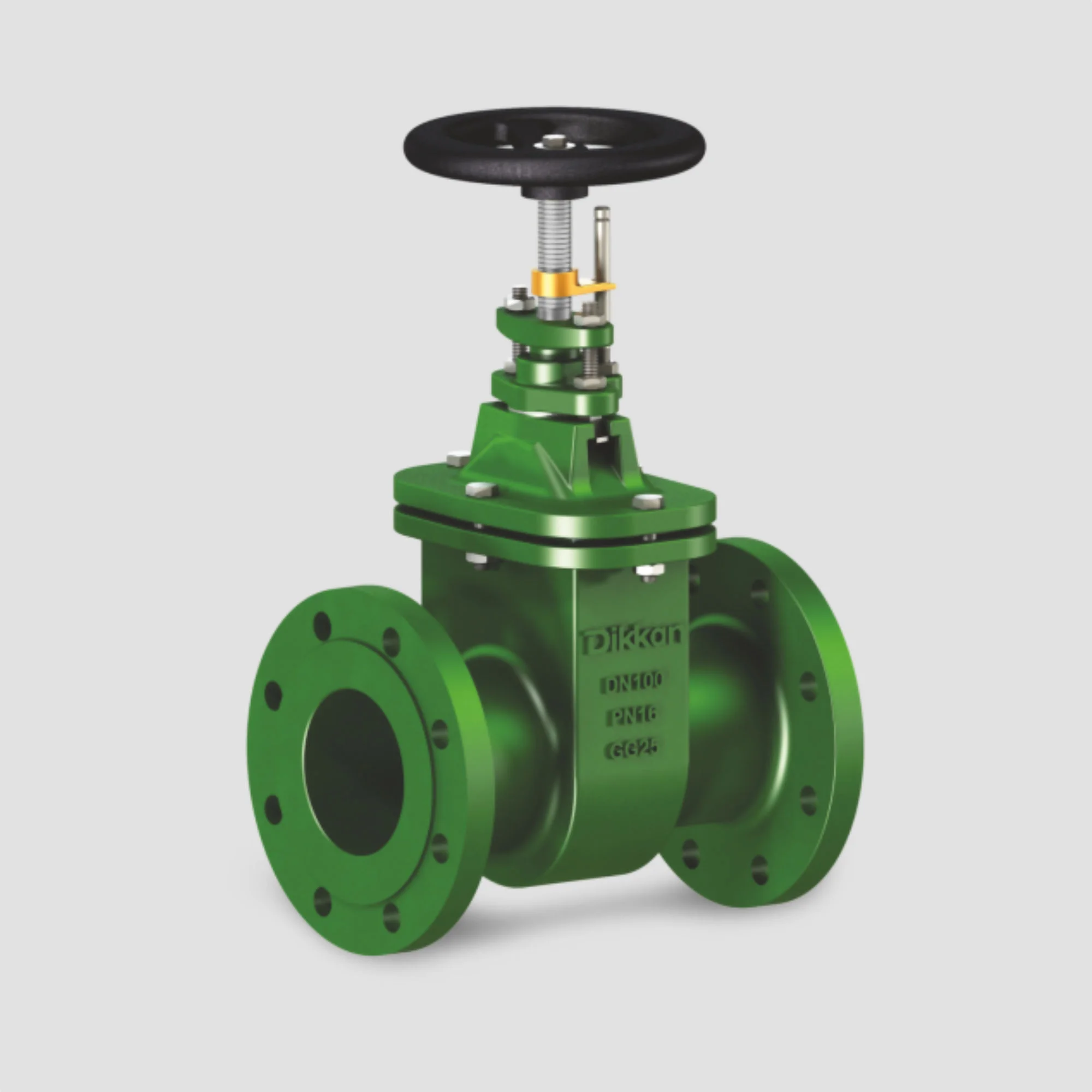

Dikkan Cast Iron Indicated Non Rising Stem F5 Type Gate Valves

Dikkan Cast Iron Indicated Non Rising Stem F5 Long Type Gate Valves offer reliable, efficient water control in various systems. These valves, known for their durability and precise design, are ideal for long-term use in demanding environments. The non-rising stem feature ensures minimal space usage, making them suitable for compact installations. Their F5 long type design caters to specific industry requirements, providing optimal performance. These valves are a top choice for quality-conscious professionals seeking dependable water management solutions.

Size Range: DN40-DN1500 (1 1/2" - 60")
Body Material: Cast Iron
Standard: DIN EN 1171 (DIN 3352 T2) - with indicator
Applications: Hot & Cold water, Fresh Water, Sea Water, & Lubricating Oil
Pressure Range: PN6 (DN1500), PN10 (DN600-1000), PN16 (DN40-500)
End Connection: Flanged
Find Out More

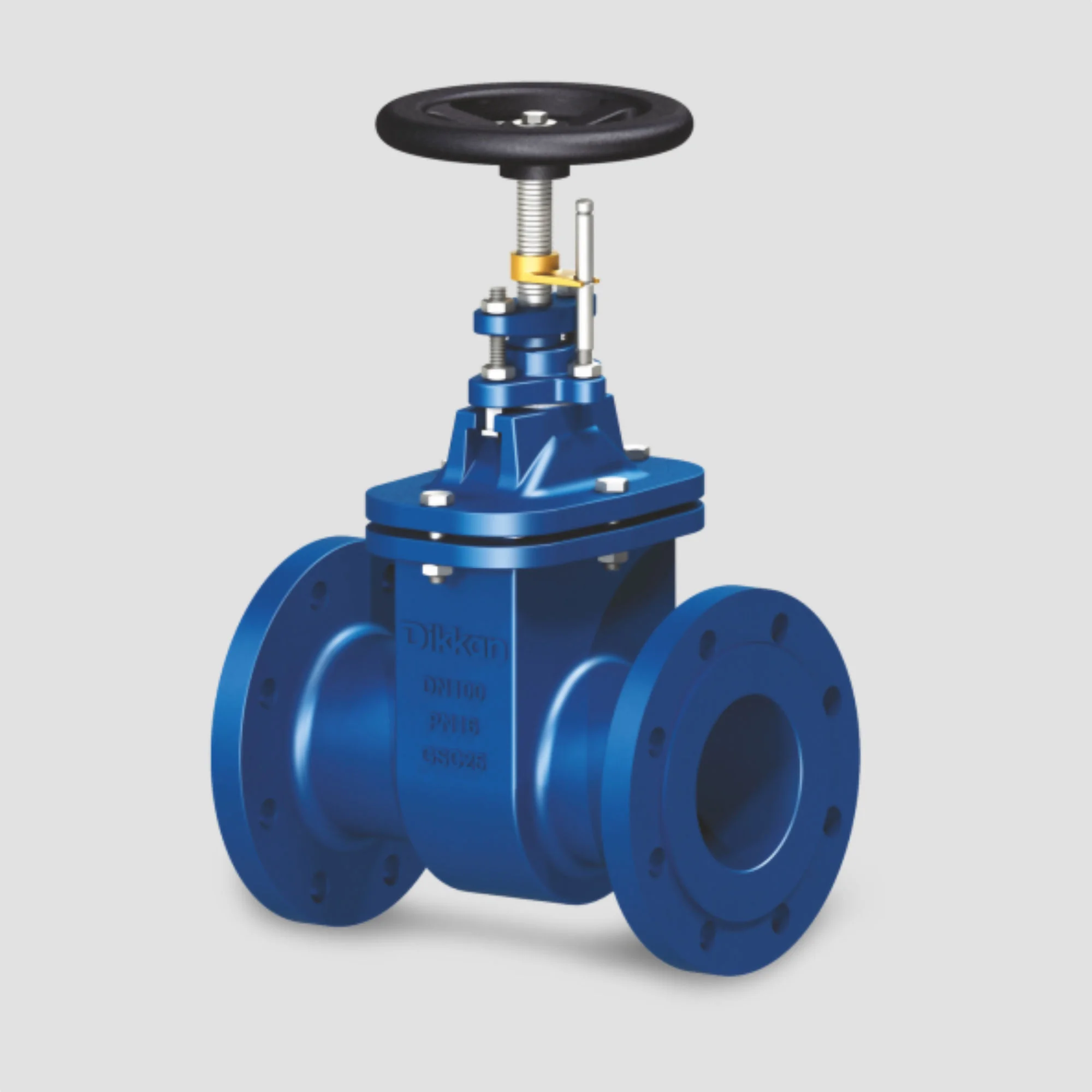

Dikkan Cast Steel Indicated Non Rising Stem F5 Type Gate Valves

Dikkan Cast Steel Indicated Non-Rising Stem F5 Type Gate Valves are precision-engineered valves designed to meet the stringent requirements of various applications, ensuring reliable and efficient performance in fluid control systems. These gate valves, manufactured by Dikkan, boast a robust construction with key features that make them suitable for a wide range of industries.

Size Range: DN40-DN1500 (1 1/2" - 60")
Body Material: Cast Steel
Standard: DIN EN 1984 (DIN 3352 T2) - with indicator
Applications: Hot & Cold water, Fresh Water, Sea Water, & Lubricating Oil
Pressure Range: PN10 (DN1500), PN16 (DN600-1000), PN25 (DN40-500)
End Connection: Flanged
Find Out More

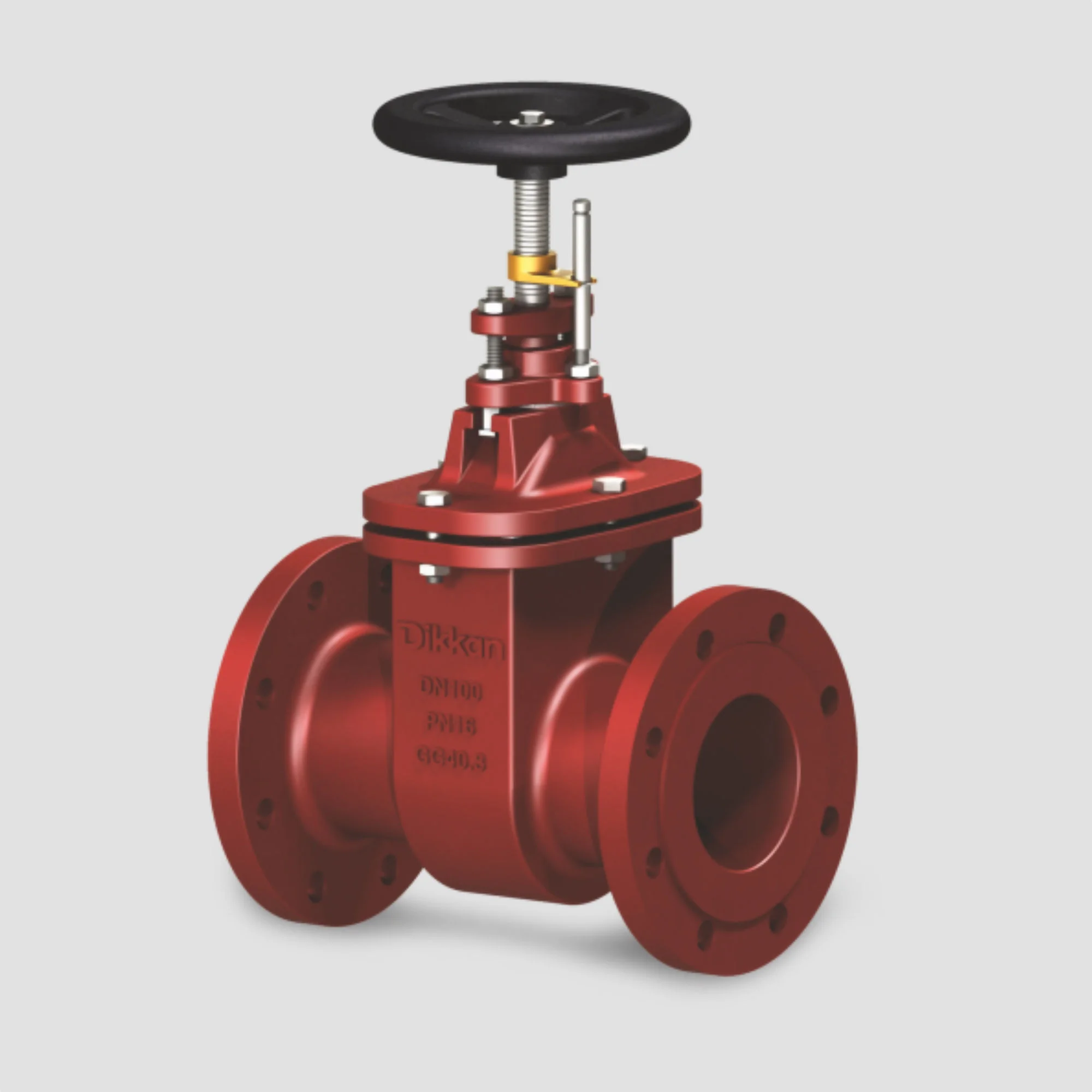

Dikkan Ductile Iron Indicated Non Rising Stem F5 Type Gate Valves

The Dikkan Ductile Iron F5 Type Gate Valves with Non-Rising Stem are sturdy and dependable elements engineered for a range of fluid control purposes. These gate valves are constructed to guarantee durability, extended lifespan, and optimal performance. Notable specifications of these valves encompass the utilization of premium ductile iron for the body, stainless steel seats, and a securely sealed bolted bonnet.

Size Range: DN40-DN1500 (1 1/2" - 60")
Body Material: Ductile Iron
Standard: DIN EN 1171 (DIN 3352 T2) - with indicator
Applications: Hot & Cold water, Fresh Water, Sea Water, & Lubricating Oil
Pressure Range: PN10 (DN1500), PN16 (DN40-1000)
End Connection: Flanged
Find Out More

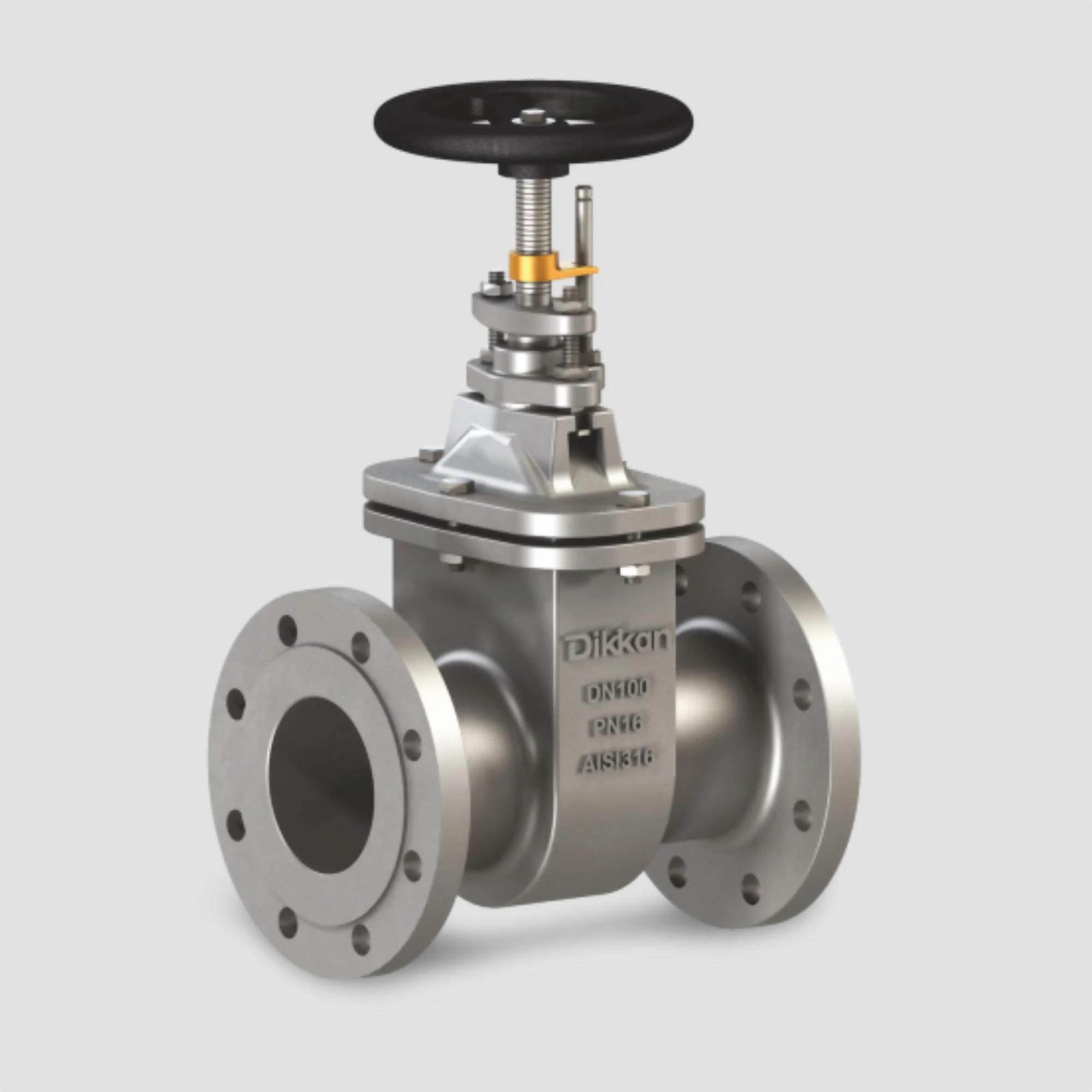

Stainless Steel Indicated Non Rising Stem F5 Type Gate Valves

Dikkan Stainless Steel Indicated Non-Rising Stem F5 Type Gate Valves offer reliable and durable performance in a variety of applications. Crafted with precision and quality materials, these gate valves are designed to meet the demands of diverse industries. Constructed with high-grade stainless steel, these gate valves ensure robustness and corrosion resistance, making them suitable for a wide range of fluids.

Size Range: DN40-DN1500 (1 1/2" - 60")
Body Material: Stainless Steel
Standard: DIN 3352 T2 - with indicator
Applications: Hot & Cold water, Fresh Water, Sea Water, & Lubricating Oil
Pressure Range: PN10 (DN1500), PN16 (DN600-1000), PN25 (DN40-500)
End Connection: Flanged
Find Out More

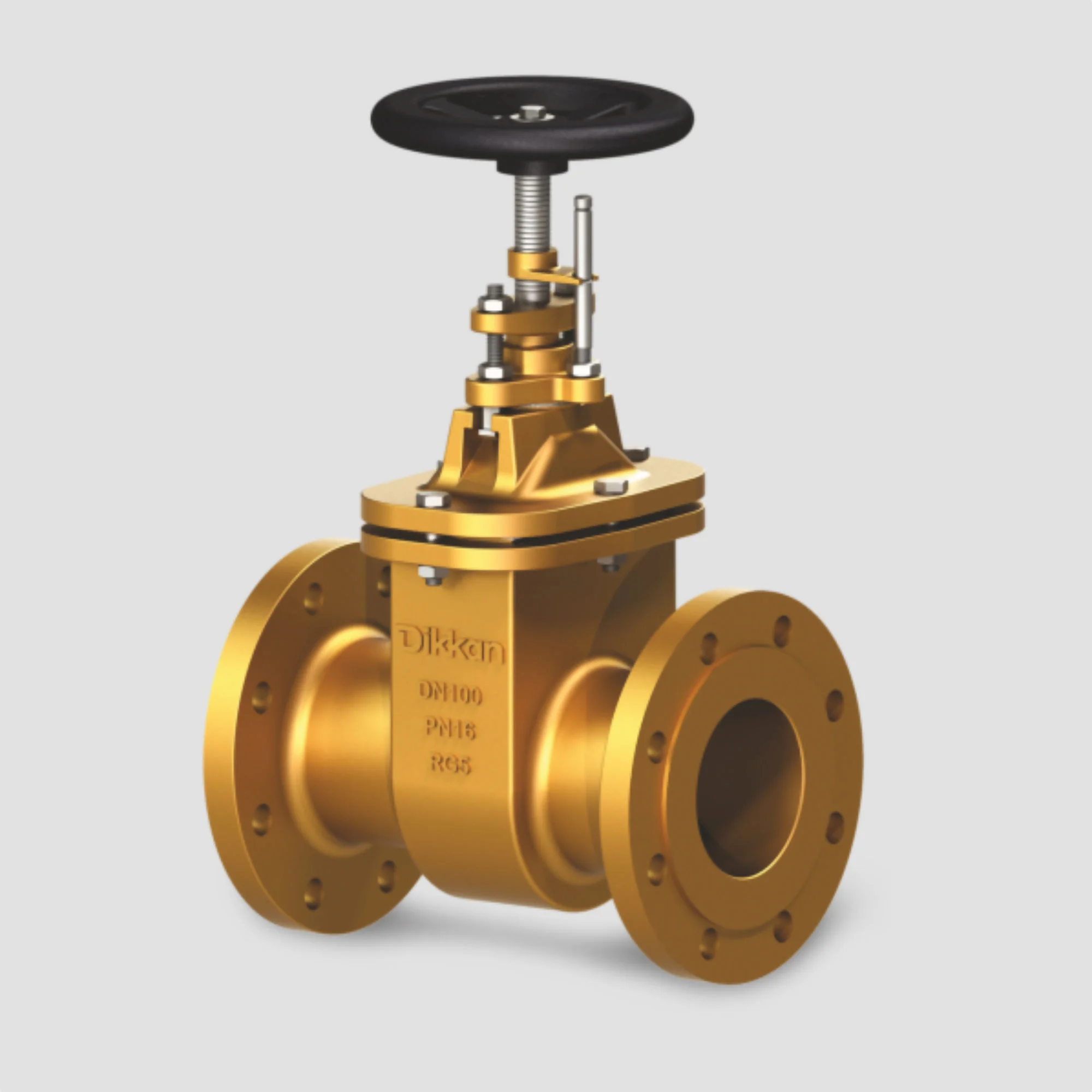

Dikkan Bronze Indicated Non Rising Stem F5 Type Gate Valves

Dikkan Bronze Indicated Non-Rising Stem F5 Type Gate Valves are meticulously engineered to deliver reliable performance in demanding environments, particularly in shipbuilding applications. Crafted with precision and quality, these gate valves boast key features that make them an ideal choice for handling both hot and cold water on ships.

Size Range: DN40-DN1500 (1 1/2" - 60")
Body Material: Bronze
Standard: DIN EN 12288 - with indicator
Applications: Especially Suitable for Hot & Cold Water in Ship Building
Pressure Range: PN6 (DN1500), PN16 (DN40-1000)
End Connection: Flanged
Find Out More

Dikkan Gate Valves Certificates and Approvals

  • PDF
CERTIFICATES & APPROVALS

Bureau Veritas - Castings
  • PDF
Certificates and Approvals

WRAS
  • PDF
Certificates and Approvals

Lloyd's Register - Iron Castings
  • PDF
Certificates and Approvals

Lloyd's Register - Steel Castings
  • PDF
CERTIFICATES & APPROVALS

DNV - Iron Castings

Frequently Asked Questions

A gate valve is a type of valve used to control the flow of a fluid by lifting a gate out of the path of the fluid. They are often used in pipelines to control the flow of liquids like oil, gas, or water.

The main types of gate valves include solid wedge, flexible wedge, and split wedge designs. Each type is suited for different applications and fluid types.

Gate valves are best used in applications where a straight flow of fluid and minimum restriction is desired. They are ideal for on/off control rather than flow regulation.

Common materials for gate valves include bronze, iron, and stainless steel each offering different advantages in terms of strength, durability, and corrosion resistance.

Sizing a gate valve involves considering factors like the type of fluid, flow rate, pressure, and the size of the pipeline. It's crucial to consult with one of our experts or refer to manufacturer guidelines.

While possible, using gate valves for throttling is not recommended as it can cause damage to the valve and lead to increased wear.

Regular maintenance of a gate valve includes periodic inspection, cleaning, and lubrication. Replace worn parts as needed and ensure proper operation to extend its lifespan.

Signs of a failing gate valve include leaks, difficulty in operating the valve, unusual noises during operation, and a visible deterioration of valve components.

Yes, gate valves can be designed for high-pressure applications, but it's essential to select a valve that meets the specific pressure requirements of your system.

The main difference lies in their design and operation. Gate valves use a lifting mechanism to control flow, while ball valves use a rotating ball with a hole through it for flow control.

Yes, gate valves can be fitted with actuators for remote or automated control, which is especially useful in large-scale industrial applications.

Gate valves offer minimal pressure drop, tight sealing, and are suitable for high-temperature and high-pressure applications, making them a preferred choice in many industrial settings.

FAQ

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

Dikkan Non Rising Stem F5 Long Type Gate Valves with Indicator
