Stainless Steel DIN PN16 Rotork ROM Actuator Valves

The AV-L6K00ROM flanged PN16 actuation valves offer a basic quarter turn actuated solution for low to medium pressure requirements with DIN flanged connections (Maximum 16 bar). WRAS approved TFM 1600 PTFE seats ensure safe operation while our FDA-approved materials provide peace of mind knowing your products will be handled safely without compromising quality or performance when used correctly. Rotork’s ROM electric actuator has the perfect design for reliability and performance in any application it's used in. It will continue to operate at peak performance for many years without failure. An Actuator you can rely on at crucial moments when your equipment needs it most.

Key Features

Key features and benefits of AV-L6K00ROM Actuated Ball Valves.
1

Key Features

Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else.
2

Key Features

Rotork ROM provides both mechanical end-of-travel protection for your application. It offers a simple solution for providing reliable actuation control when using electric actuators without compromise on safety or performance.
3

Key Features

The ROM Electric Actuator is a reliable, cost-effective solution that reduces the time needed for repairs and increases uptime. It has been designed to provide superior performance in all environments, even those with high levels of vibration or extreme temperatures.

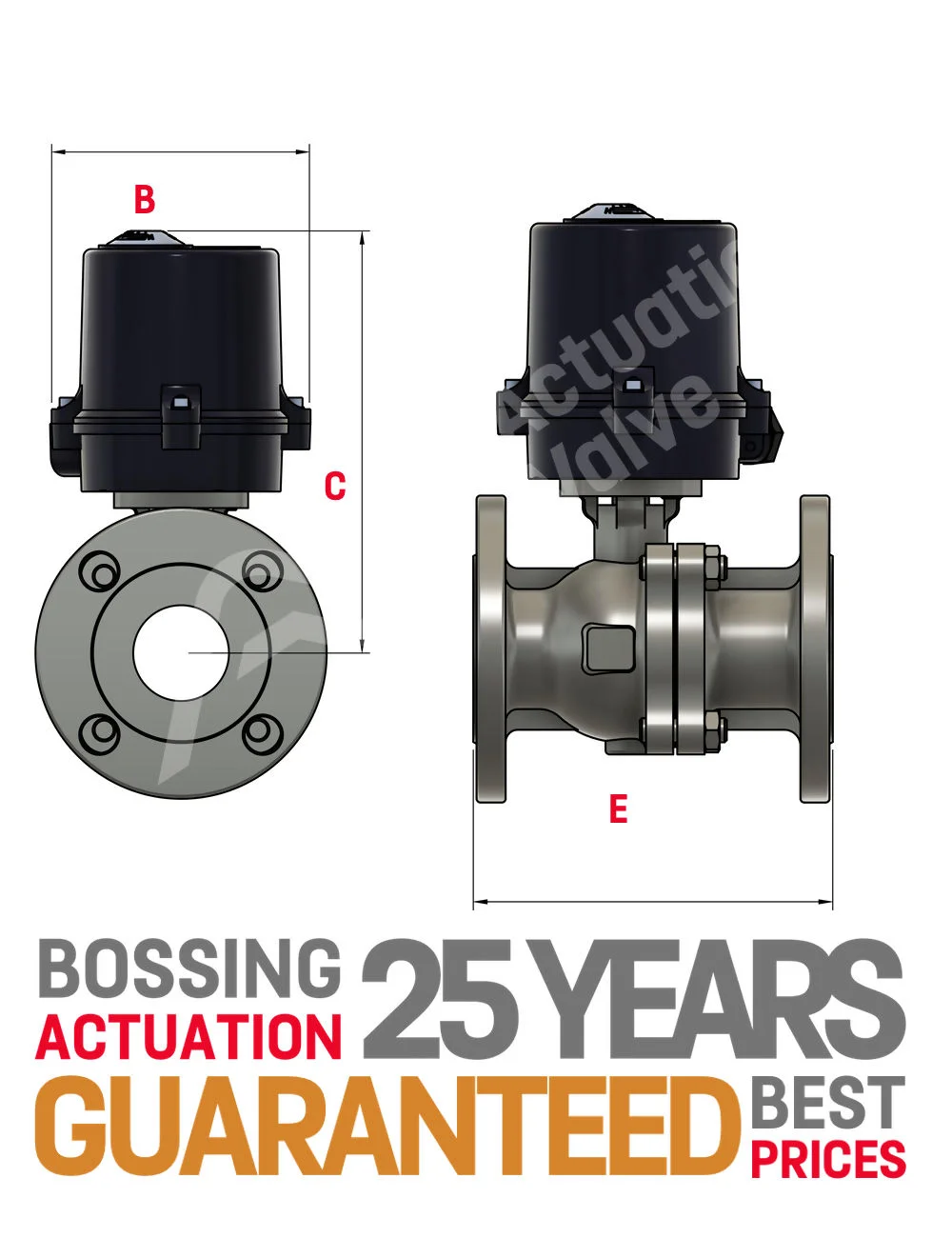

Flanged PN16 Technical Stuff

B C E Model
1/2" 114.00 184.00 115.00 ROM-1
3/4" 114.00 189.00 120.00 ROM-1
1" 114.00 195.00 125.00 ROM-1
1 1/4" 114.00 272.00 130.00 ROM-1
1 1/2" 114.00 212.00 140.00 ROM-1
2" 114.00 254.00 150.00 ROM-A
2 1/2" 196.00 414.00 170.00 ROM-2
3" 196.00 424.00 180.00 ROM-3
4" 196.00 517.00 190.00 ROM-3
5" 196.00 560.00 325.00 ROM-3
6" 232.00 596.00 350.00 ROM-5
8" 232.00 645.00 400.00 ROM-6
10" TBA TBA TBA TBA

Flanged PN16 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (2 1/2" - 4") & DIN 3202 F5 (5" - 8")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
