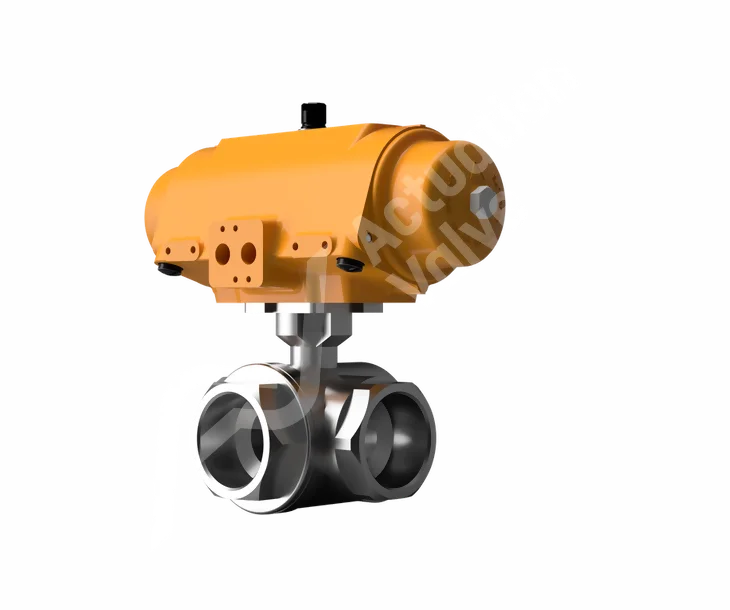

The AV-L5000XL & AV-L5100XL L & T port ball valves offer a cost effective process diverting operation. Whether you are looking for spring return or double acting pneumatically actuated 3-way ball valve that requires gradual or rapid opening and closing times actuation valve can offer a easy fit solution for screwed pipelines. The ISO 5211 mounting pad allows actuation of the valve without the use of a mounting bracket so all assembly and testing procedures can be processed immediately after your order has been placed. Hytork Pneumatic Actuators are designed specifically for critical installations where downtime is not an option. Emerson offer worldwide technical support during installation as well as after sales and technical advice for the lifetime of the product. All actuated valve assemblies can be supplied with operations and maintenance manuals.

Shop Help Me

Key features and benefits of AV-L5000XL & AV-L5100XL Actuated Ball Valves.

Key Features

The Hytork Pneumatic Actuator is manufactured according to ISO 5211 standards with a star drive that provides extra flexibility and simplicity for direct mounting to valve spindles or output shafts. This makes it easy to convert electric system to pneumatic if required.

Key Features

NAMUR mounting (VDE/VDI 3845) allows standardisation of mounting hardware for a wide range of accessories. This eliminates the need to purchase specific mounting kits or adapters which can increase costs and waste time during installation.

Key Features

This multipart diverter valve package is a perfect choice for those who need to deal with medium aggressive water conditions and harsh external environments. It has been designed using only high quality materials from the manufacturer Kingdom Controls.

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA

1/4"	97.00	147.50	165.00	97.00	147.50	165.00	79.00
3/8"	97.00	147.50	165.00	97.00	147.50	165.00	79.00
1/2"	97.00	147.50	165.00	97.00	147.50	165.00	79.00
3/4"	97.00	153.50	165.00	97.00	153.50	165.00	88.00
1"	116.50	181.90	221.80	97.00	164.00	165.00	108.00
1 1/4"	116.50	185.40	221.80	97.00	167.50	165.00	124.00
1 1/2"	116.50	195.90	221.80	116.50	195.90	221.80	135.00
2"	133.50	221.20	292.00	133.50	221.20	292.00	164.00
2.5"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	PTFE
Stem Packing Material:	PTFE
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 400
Inspection & Testing:	MSS SP-110
BSP Ends:	BSPP IS0 228/1

Yes, this actuated ball valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

A 3-Way Reduced Bore Ball Valve features a smaller internal diameter than the pipe size, allowing controlled flow diversion between three ports. This design helps reduce flow rate while maintaining smooth direction changes, making it ideal for blending, diverting, or mixing operations.

BSPP (British Standard Parallel Pipe) threads provide a secure, leak-tight seal commonly used in UK and European process industries. They ensure reliable installation compatibility across pneumatic, hydraulic, and water systems using standard BSPP fittings.

Hytork pneumatic actuators offer high torque output, precise control, and long service life. When combined with a 3-Way Reduced Bore Ball Valve, they enable efficient flow switching with minimal manual intervention—perfect for automated process systems.

Yes. These ball valves are designed for versatility and can handle air, water, oil, gas, and other compatible fluids. Material selection (such as stainless steel, brass, or carbon steel) ensures durability and chemical resistance for specific industrial environments.

Regular inspection and lubrication of the actuator, along with periodic cleaning of valve internals, will ensure smooth operation. It’s also important to check for wear on seals and seats—especially if the valve is used in high-cycle or abrasive media applications.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Hytork Actuator Videos

Hytork Overview

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.
