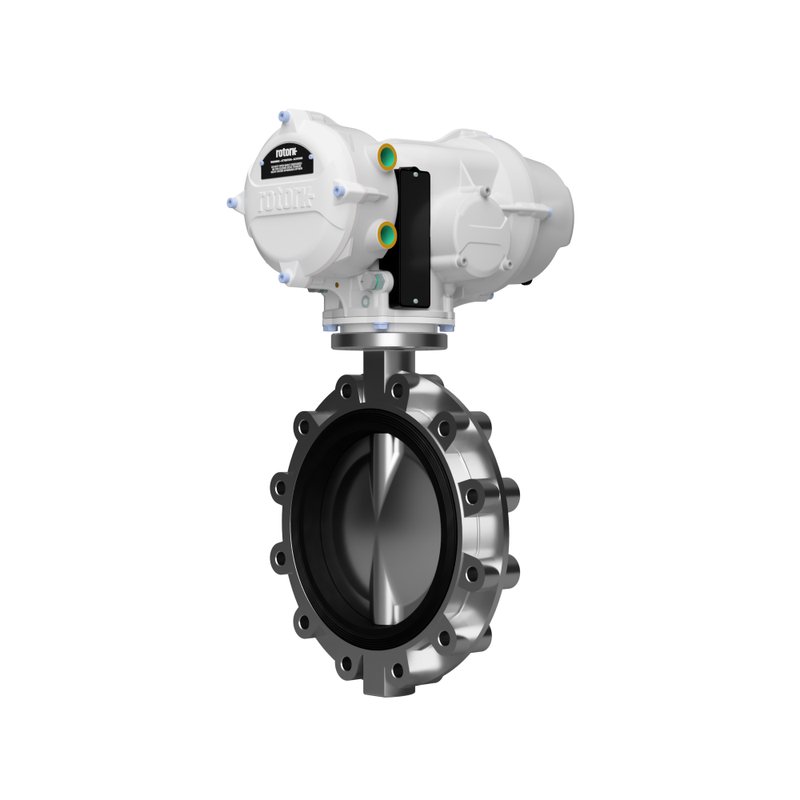

40L4040ET03503P00ANSI150 TTV Rotork Actuated Butterfly Valves CF8M Stainless Steel High Temp EPDM Electric ATEX IQT2000 3 Phase IP68 415-3-50 Lugged ANSI150

Product Code:

(0 reviews)

| Write review

£7196.24ex. VAT

Pay in 3 easy payments of £2878.50 with Klarna

Qty:

Add to Basket

Make an Enquiry Apply for Credit

Next Day Delivery Available

Technical Support

Price Match Guarantee

Technical Specs


Valve Size	14"
Connections	Flanged
Pressure Design	ANSI 150
Body Design	Lugged
Body Material	CF8M Stainless Steel
Seat Design	Concentric
Seat Material	High Temperature EPDM
Actuator Function	Power Open Power Close
Actuator Type	Electric IQT2000
Actuator Housing	Aluminium Alloy Powder Coated Polyester
Manual Override	Handwheel
Actuator Approvals	Atex [II2GD EX DB IIB T4]
F2F Dimension	78
Part Number	40L4040ETIQDN03503P0XANSI150
Brand	TTV
Actuator Brand	Rotork
