ATEX Switchbox

ATEX limit-switch boxes monitor the open/closed position of valves in hazardous environments and relay position feedback to control systems. A typical explosion-proof switchbox uses a die-cast or powder-coated aluminium enclosure rated IP67 and certified for zones 1–2, with ATEX Eexd or Exia approvals.

Key Features

Key features and benefits of ATEX rated Switchboxes.
1

Key Features

Designed with flameproof or intrinsically safe enclosures that prevent sparks or hot surfaces from igniting surrounding explosive gases or dust.
2

Key Features

Fully compliant with the European ATEX Directive, ensuring legal safety requirements are met for use in hazardous areas.
3

Key Features

Built with robust materials such as aluminium, stainless steel, or reinforced polymers, often with IP66/IP67 ingress protection for durability in harsh environments.
4

Key Features

Equipped with highly visible mechanical indicators, allowing operators to see the valve position instantly, even from a distance.
5

Key Features

Compatible with standard NAMUR mounting interfaces for easy installation on a wide range of pneumatic and electric actuators.
6

Key Features

Can include limit switches, proximity sensors, or terminals for feedback to control systems, enhancing process monitoring and automation.

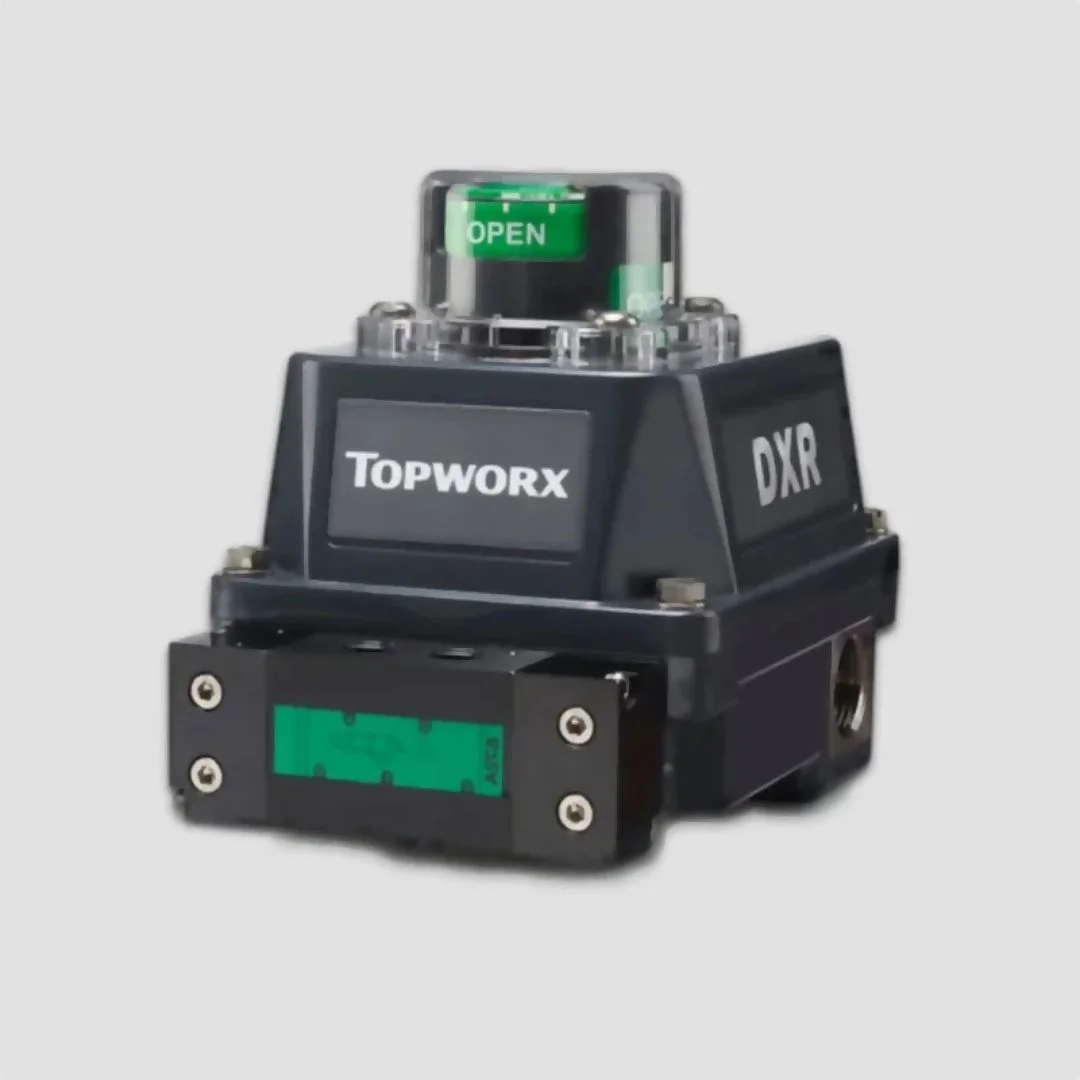

DXR D-Series Discrete Limit Switch Valve Monitors

The DXR D-Series Discrete Limit Switch Valve Monitors are engineered to deliver dependable and precise feedback on valve position in some of the most demanding industrial environments. One of the key strengths of the DXR D-Series is its ATEX capability, making it suitable for hazardous area installations where explosive gases, vapours, or dusts may be present. With ATEX approval, these valve monitors can be confidently used in industries such as oil and gas, petrochemical, chemical processing, and power generation. Their rugged construction, sealed enclosures, and corrosion-resistant materials ensure long-lasting durability even in extreme operating conditions, while the ATEX certification guarantees they meet strict international safety requirements.

Enclosure: Composite Resin
Bus/Sensors: HART, AS-Interface, SPDT GO Switch, P&F NJ2-V3-N, Fieldbus, 4-20mA, DPDT
Area Classification: Intrinsically Safe, Non Incendive, General Purpose, Increased Safety
Find Out More

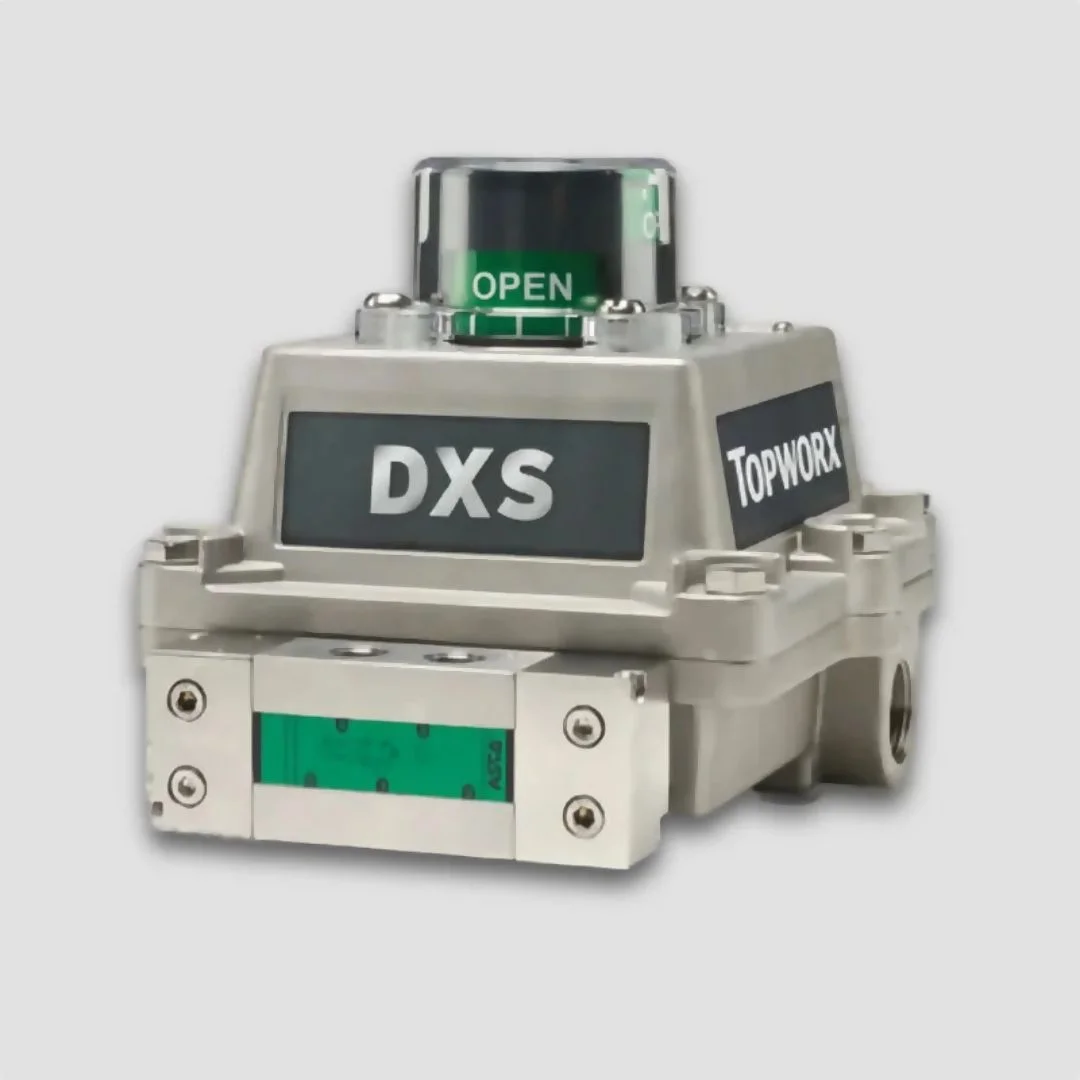

DXS D-Series Stainless Steel Limit Switchbox Valve Monitor

One of the key advantages of the DXS Valve Monitor is its ATEX capability. With ATEX certification, these switchboxes can be safely installed in hazardous areas where explosive gases, vapours, or dusts may be present. This compliance ensures that the equipment meets strict European safety directives, giving operators peace of mind when working in Zone 1 and Zone 2 environments. The ATEX-rated enclosures are designed to eliminate ignition sources, offering an additional layer of safety in critical applications.

Enclosure: 316 Stainless Steel
Bus/Sensors: HART, AS-Interface, SPDT GO Switch, P&F NJ2-V3-N, Fieldbus, 4-20mA, DPDT
Area Classification: Intrinsically Safe, Explosion/Flameproof, Non Incendive, Dual Exd Exia, General Purpose
Find Out More

TVF T-Series Non Incendive Limit Switch Valve Monitors

One of the key advantages of the TVF Limit Switch Valve Monitor range is their ATEX capability, making them suitable for use in hazardous areas where explosive gases, vapours, or dust may be present. By meeting strict ATEX standards, these units provide the assurance that they can be safely installed in Zone-classified environments without the risk of creating ignition sources. This makes them an ideal choice for industries such as oil and gas, petrochemical, pharmaceutical, and chemical processing, where both safety and compliance are critical.

Enclosure: Tropicalized Aluminium Base C/W Clear Resin Lid
Bus/Sensors: AS-Interface, SPDT GO Switch, P&F NJ2-V3-N, 4-20mA, DPDT, Gold Plated
Area Classification: Intrinsically Safe, Non Incendive, General Purpose
Find Out More

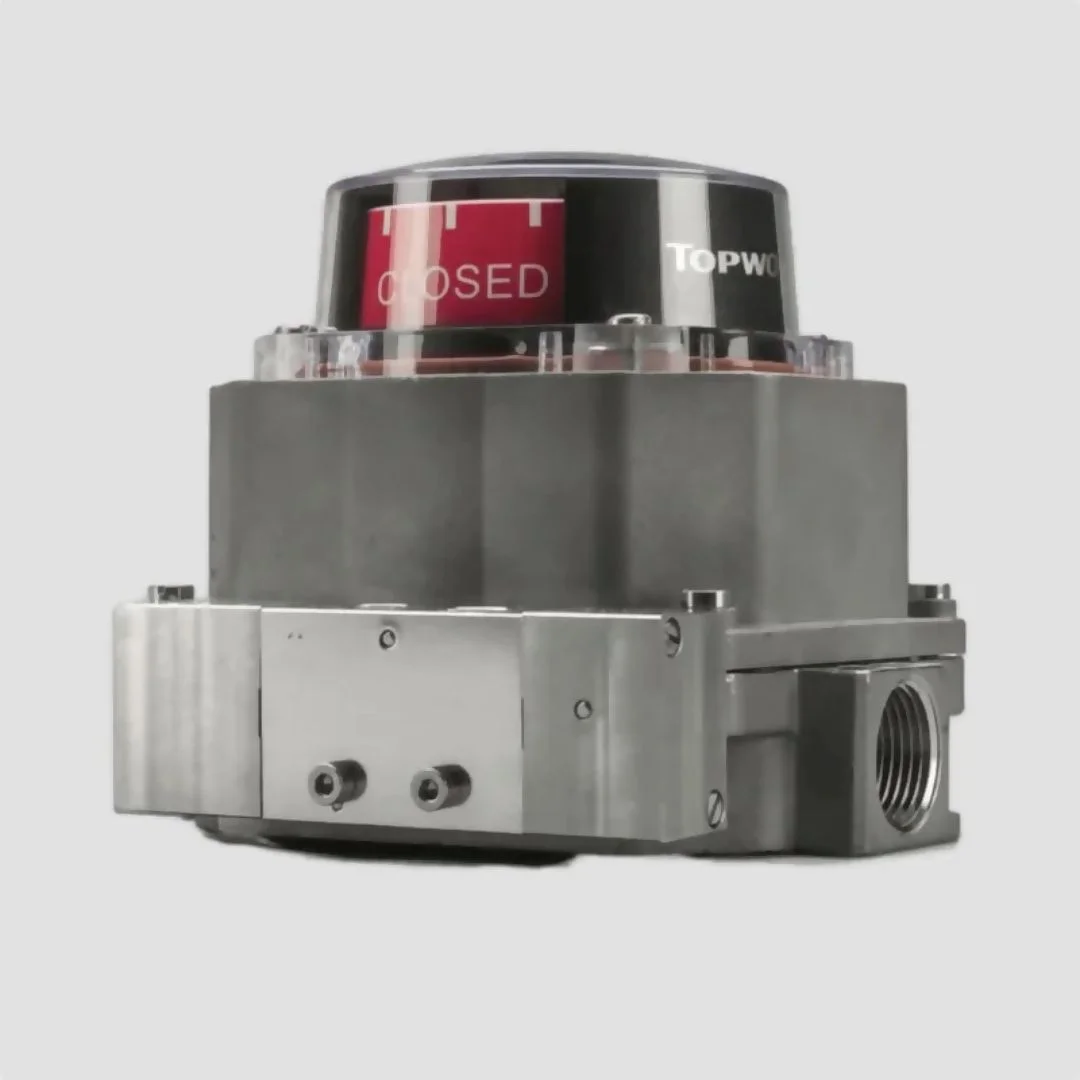

TVH TX-Series Stainless Steel Limit Switch Valve Monitors

The TVH's Limit Switch Valve Monitors is their ATEX capability, which allows them to be safely installed and operated in hazardous areas where explosive gases, vapours, or dusts may be present. This ATEX compliance ensures that the units meet strict European safety directives, giving operators peace of mind that the switchbox will not act as an ignition source in high-risk environments. As a result, they are widely used in sectors such as oil and gas, chemical processing, power generation, and other industries where hazardous conditions are part of daily operations.

Enclosure: 316 Stainless Steel Base C/W Clear Resin Lid
Bus/Sensors: AS-Interface, SPDT GO Switch, P&F NJ2-V3-N, Profibus, 4-20mA, DPDT
Area Classification: Intrinsically Safe, Non Incendive, General Purpose
Find Out More

Wondering What Industries We Serve?

From oil and gas to pharmaceuticals, food processing, and water treatment, our ATEX-rated switchboxes are trusted across a wide range of industries where safety and reliability are critical. We understand the unique challenges each sector faces and provide solutions tailored to their hazardous area requirements. Click below to see the industries we work with and how our expertise can support your operations.
Learn more

Industries

Why are they Important?

ATEX-rated switchboxes are important because they provide safe and reliable valve position monitoring in hazardous environments where explosive gases, vapours, or dust may be present. In these settings, even a small electrical spark or excessive heat from a standard switchbox could trigger an explosion, so ATEX-rated models are specifically engineered with explosion-proof or intrinsically safe designs to eliminate this risk. They ensure compliance with the European ATEX Directive, which is a legal requirement for operating electrical equipment in designated hazardous zones.

Beyond safety compliance, they deliver accurate position feedback to control systems, helping operators maintain efficient process control without compromising site safety. This combination of hazard protection, regulatory compliance, and operational reliability makes ATEX-rated switchboxes a critical component in industries such as oil and gas, petrochemicals, pharmaceuticals, and food processing.

Where would you find them?

You would find ATEX-rated switchboxes in industrial facilities where valves need to be monitored or controlled in hazardous zones with a risk of explosion. Common locations include oil and gas refineries, offshore drilling platforms, and petrochemical plants where flammable gases or vapours are present. They are also used in chemical manufacturing sites, pharmaceutical plants handling volatile solvents, and food or grain processing facilities where combustible dust can form.

Other applications include wastewater treatment plants with methane-rich atmospheres, paint spray booths, and mining operations where explosive gases or dust can accumulate. In all these settings, ATEX-rated switchboxes ensure accurate valve position feedback and safe operation without creating ignition risks.

Frequently Asked Questions

An ATEX-rated switchbox is a valve monitoring device designed to operate safely in hazardous areas with explosive gases, vapours, or dust.

They are required in ATEX-classified zones to ensure compliance with safety regulations and prevent ignition risks.

Industries include oil and gas, petrochemicals, chemicals, pharmaceuticals, food processing, grain handling, wastewater treatment, and mining.

Yes, they are built to either explosion-proof (flameproof) or intrinsically safe standards to prevent sparks or high temperatures from igniting the atmosphere.

Most have high ingress protection ratings such as IP66 or IP67 to guard against dust, water, and harsh weather.

Yes, their robust housings and weatherproof designs make them suitable for outdoor hazardous environments.

They typically use standard NAMUR or ISO mounting interfaces for easy installation on actuators.

Yes, they include limit switches or proximity sensors to send valve position signals to control systems.

Yes, but it’s generally more cost-effective to use a standard switchbox in safe areas unless standardisation is required across all sites.

Maintenance intervals vary, but regular inspections are recommended to check seals, wiring, and mechanical operation.

Yes, ATEX-rated switchboxes are compatible with a wide range of actuator types, as long as the mounting interface matches.
Look for markings showing ATEX compliance (e.g., II 2G Ex d IIC T6) along with any additional IECEx or regional approvals if required.
