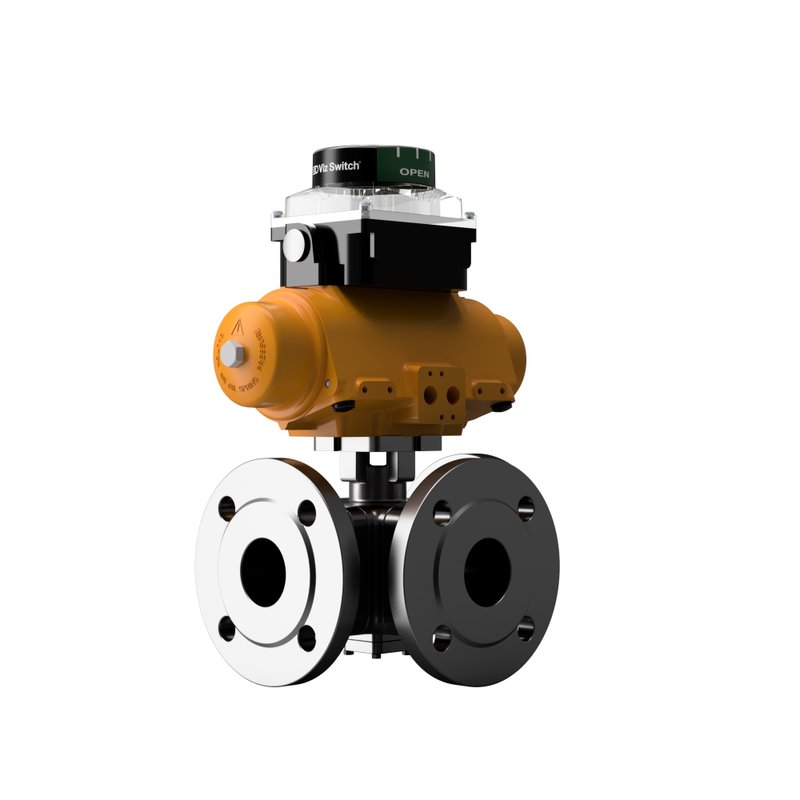

AV-L5N00P16DN0065XL001SR Hytork Actuated Ball Valves Flanged PN40 3 Way Full Bore Stainless Steel A351 CF8M Air Open Spring Close Pneumatic VIZ 001 Limit Switch Box IP68 2 X M20 250V 10A

Product Code:

(0 reviews)

£1690.78ex. VAT

Pay in 3 easy payments of £676.31 with Klarna

Qty:

Next Day Delivery Available

Technical Support

Price Match Guarantee

Technical Specs


Valve Size	2.5"
Connections	Flanged
Pressure Design	PN40
Body Design	3 Way Full Bore
Body Material	Stainless Steel A351 CF8M
Ball Design	Straight Through
Seat Material	PTFE 1600
Actuator Function	Air Open Spring Close
Actuator Type	Pneumatic
Actuator Housing	Powder Coated LM25 Aluminium Casting
Power	No Spool Valve
Manual Override	No Manual Override
Valve Approvals & Features	VIZ 001 Limit Switch Box IP68 2 X M20 250V 10A
Part Number	AV-L5N00P16DN0065XL001SR
Brand	Kingdom
Actuator Brand	Hytork
F2F Dimension	230
