Belimo 2 Way Flanged Characterised Control Valves

Belimo's 2-Way Flanged Characterised Control Valves demonstrate exceptional performance within both closed and open water circuits, providing adaptability across a fluid temperature spectrum spanning from -10°C to 100°C. Featuring a Flange PN6 (EN 1092-1/4) pipe connection, these valves guarantee air-bubble tight functionality, meeting the stringent Leakage Rate A (EN 12266-1) standards. Designed to operate within a pressure range of DN15-50, they seamlessly integrate with a wide array of actuators such as TR, LR, NR, SR, and more, thereby elevating system efficiency and dependability.

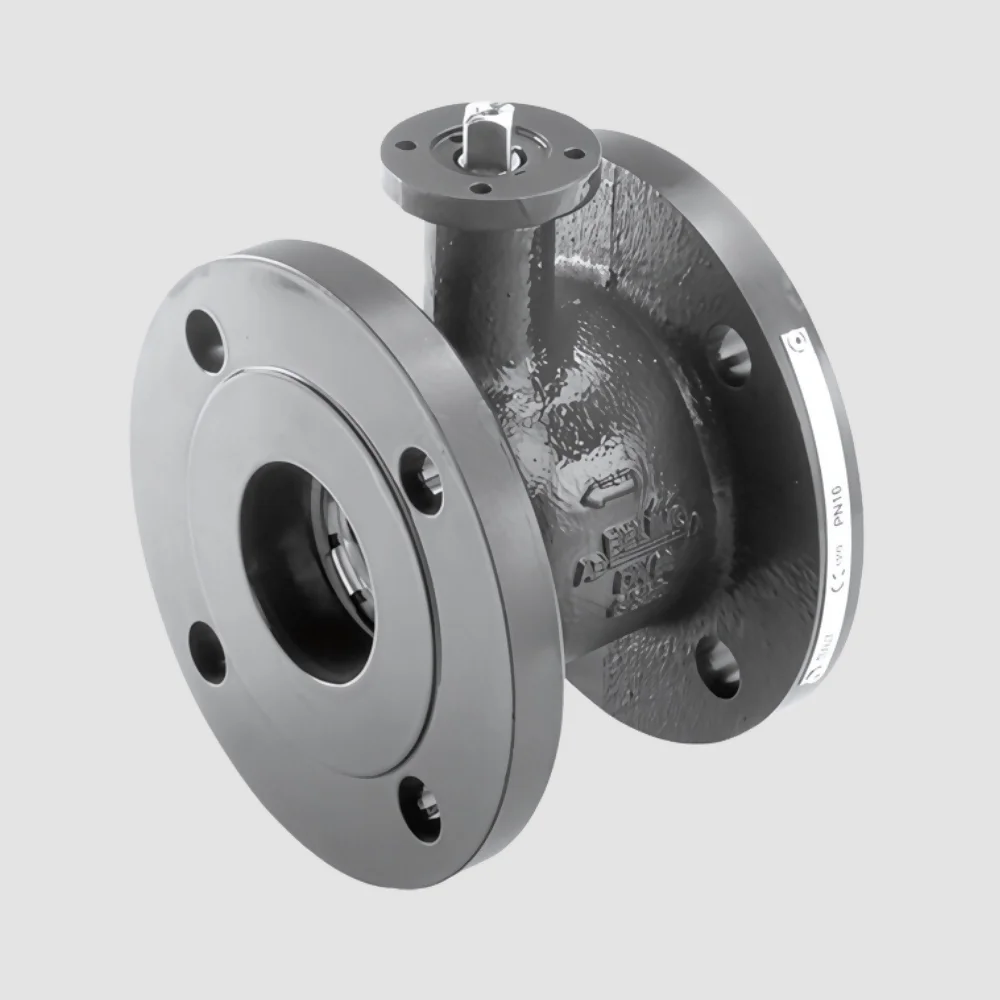

Belimo 2 Way Flanged PN6 Characterised Control Valves

Belimo's 2 Way Flanged PN6 Characterised Control Valves are designed for both closed and open water circuits, offering versatility in fluid temperature management from -10°C to 100°C. With a Flange PN6 pipe connection (EN 1092-1/4), they ensure secure integration into systems. These valves guarantee air-bubble tightness, meeting Leakage Rate A standards (EN 12266-1), providing reliability in operation. Available in sizes DN15-50, they accommodate a wide range of pressure requirements.

Field of Use: Closed & Open Water Circuit
Fluid Temperature: -10°C to 100°C
Pipe Connection: Flange PN6 (EN 1092-1/4)
Leakage Rate: Air-Bubble Tight, Leakage Rate A (EN 12266-1)
Pressure Range: DN15-50
Suitable Actuator Ranges: TR, LR, NR, SR, TRC, LRC, NRC, SRC, TRF, LRF, NRF, & SRF
Enquire

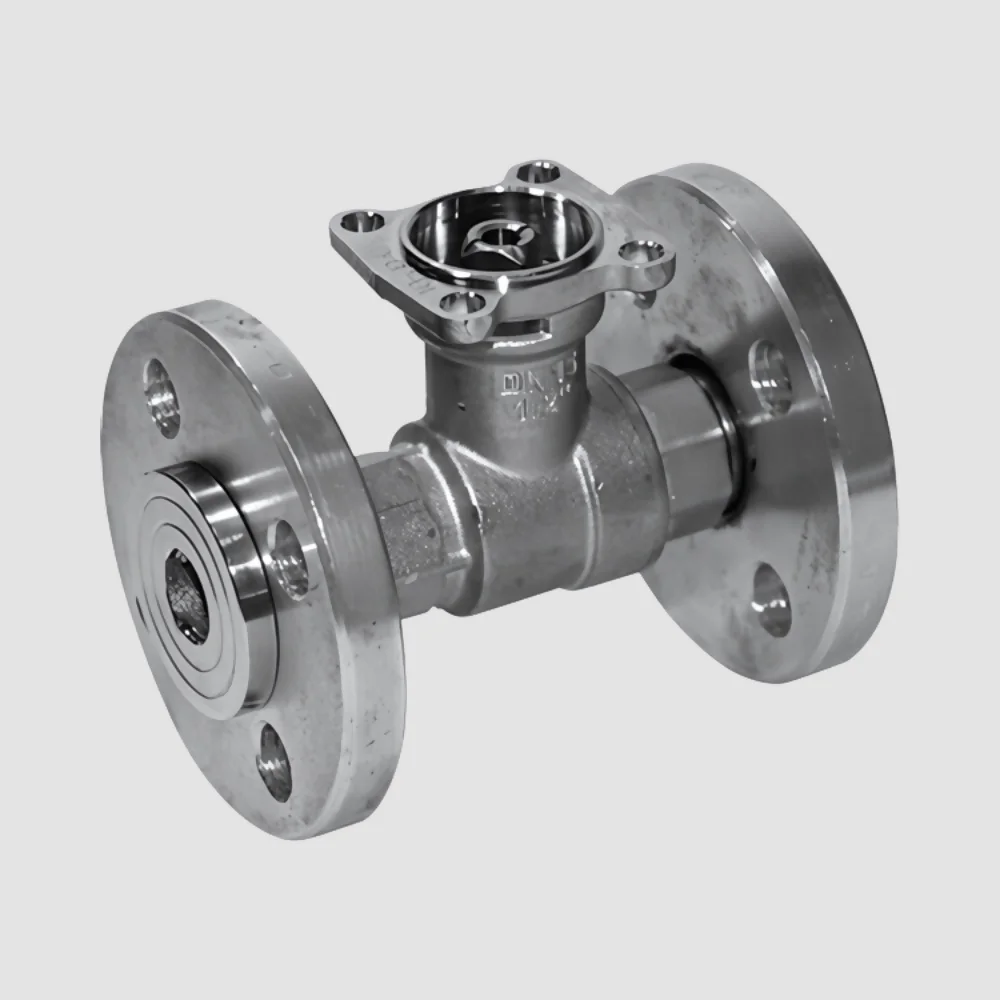

Belimo 2 Way Flanged PN16 Characterised Control Valves

Belimo's 2 Way Flanged PN16 Characterised Control Valves are ideal for closed water circuits, offering reliable performance within a fluid temperature range of -10°C to 120°C. With a pipe connection of Flange PN16 (EN 1092-1/4), these valves ensure air-bubble tightness, meeting Leakage Rate A standards (EN 12266-1). They operate effectively within a pressure range of DN15-50, accommodating various actuator ranges including TR, LR, NR, SR, TRC, LRC, NRC, SRC, TRF, LRF, NRF, & SRF, making them versatile solutions for fluid control systems.

Field of Use: Closed Water Circuit
Fluid Temperature: -10°C to 120°C
Pipe Connection: Flange PN16 (EN 1092-1/4)
Leakage Rate: Air-Bubble Tight, Leakage Rate A (EN 12266-1)
Pressure Range: DN15-50
Suitable Actuator Ranges: TR, LR, NR, SR, TRC, LRC, NRC, SRC, TRF, LRF, NRF, & SRF
Enquire

Comprehensive Selection of Cutting-Edge HVAC Field Devices

Browse a vast catalogue of damper actuators, sensors/meters, & control valves by Belimo, designed for HVAC applications, ensuring high quality performance, reliability and low power consumption.

Frequently Asked Questions

Belimo is a global market leader in the development, production, and marketing of actuator solutions for controlling heating, ventilation, and air conditioning (HVAC) systems in buildings.

Belimo manufactures a wide range of valves including globe valves, butterfly valves, ball valves, and pressure independent control valves (PICVs) for HVAC systems.

Belimo actuators are devices used to control the opening and closing of valves. They are motor-driven devices that receive signals from a building automation system (BAS) or a controller to regulate the flow of fluids in HVAC systems.

Belimo actuators offer high precision, reliability, and energy efficiency. They are designed for easy installation and integration with various building automation systems, providing precise control over HVAC components.

Belimo sensors are devices used to measure various environmental parameters such as temperature, humidity, and air quality. These sensors provide feedback to building automation systems, enabling better control and optimisation of HVAC systems.

Belimo valves, particularly pressure independent control valves (PICVs), help optimise energy usage by maintaining constant flow rates regardless of pressure fluctuations in the system. This ensures efficient operation of HVAC systems and minimises energy waste.

Belimo actuators are known for their durability and long lifespan. With proper maintenance and usage, they can last for many years, providing reliable operation in HVAC systems.

Yes, Belimo actuators are designed to be compatible with a wide range of valves, including those from other manufacturers. They can often be retrofitted onto existing valves, providing an easy and cost-effective way to upgrade HVAC systems.

Yes, Belimo products support various communication protocols such as BACnet, Modbus, and LonWorks, allowing seamless integration with different building automation systems and protocols.

Belimo maintains rigorous quality control standards throughout the manufacturing process. Additionally, all products undergo extensive testing to ensure they meet performance specifications and reliability standards.

Belimo offers comprehensive warranty coverage for its products, typically ranging from two to five years depending on the product and region. This warranty provides customers with peace of mind and assurance of product quality.

Yes, Belimo offers a wide range of valves and actuators suitable for various HVAC applications, including air handling units, fan coil units, chilled beams, radiators, and underfloor heating systems. Whether it's for heating, cooling, or ventilation, Belimo products are designed to meet the diverse needs of different HVAC systems.
