Belimo 3 Way Flanged Globe Valves

Belimo 3-way flanged globe valves are integral components in fluid control systems, offering precise regulation and distribution of water, steam, or other fluids in HVAC, industrial, and process applications. Engineered with precision and reliability in mind, these valves provide efficient fluid control and seamless integration into diverse piping systems.

Belimo Flanged 3 Way Globe Valves - PN6
Product Codes: H7100R \ H7100R \ H711R \ H711R \ H712R \ H712R \ H713R \ H713R \ H714R \ H714R \ H715R \ H715R \ H720R \ H720R \ H725R \ H725R \ H732R \ H732R \ H740R \ H740R \ H750R \ H750R \ H764R \ H764R \ H779R \ H779R

Belimo Flanged 3-Way Globe Valves with PN6 pressure rating are engineered to provide efficient and precise control over fluid distribution in HVAC, industrial, and process applications. These valves are designed to withstand the demands of moderate-pressure systems while ensuring reliable performance and seamless integration into piping networks.

Permissible Operating Pressure (kPa) 600
Fluid Temperature -10 - 120°C
DN 15 - 100
Kvs (m³/h) 0.63 - 145
Find Out More

Belimo Flanged 3 Way Globe Valves - PN16
Product Codes: H7100N \ H7100S \ H711N \ H7125N \ H7125S \ H712N \ H713N \ H714N \ H7150N \ H7150S \ H715N \ H715S \ H7200+GV12-230-3-T \ H7200+GV12-24-SR-T \ H7200W630-S7 \ H720N \ H720S \ H7250+GV12-230-3-T \ H7250+GV12-24-SR-T \ H7250W1000-S7 \ H725N \ H725S \ H732N \ H732S \ H740N \ H740S \ H750N \ H750S \ H764N \ H765N \ H765S \ H779N \ H780N \ H780S

Belimo's range of Flanged 3-Way Globe Valves with PN16 rating are engineered to provide precise and reliable fluid control in a variety of HVAC, industrial, and process applications. With their robust construction, advanced design features, and adherence to international standards, these valves offer efficient and versatile solutions for fluid mixing or diverting tasks.

Permissible Operating Pressure (kPa) 1600
Fluid Temperature -10 - 120°C
DN 15 - 50
Kvs (m³/h) 0.63 - 320
Find Out More

Belimo Flanged 3 Way Globe Valves - PN16 (Large Nominal Diameters)
Product Codes: H7100N \ H7100S \ H7125N \ H7125S \ H7150N \ H7150S \ H7200+GV12-230-3-T \ H7200+GV12-24-SR-T \ H7200W630-S7 \ H7250+GV12-230-3-T \ H7250+GV12-24-SR-T \ H7250W1000-S7

Belimo Flanged 3-Way Globe Valves - PN16 are engineered to provide precise control and reliable performance in applications requiring the distribution or mixing of fluids in large piping systems. With their robust construction, advanced features, and compatibility with standard PN16 flange connections, these valves offer a versatile solution for a wide range of HVAC, industrial, and process control applications.

Permissible Operating Pressure (kPa) 1600
Fluid Temperature 5 - 120°C
DN 200 - 250
Kvs (m³/h) 630 - 1000
Find Out More

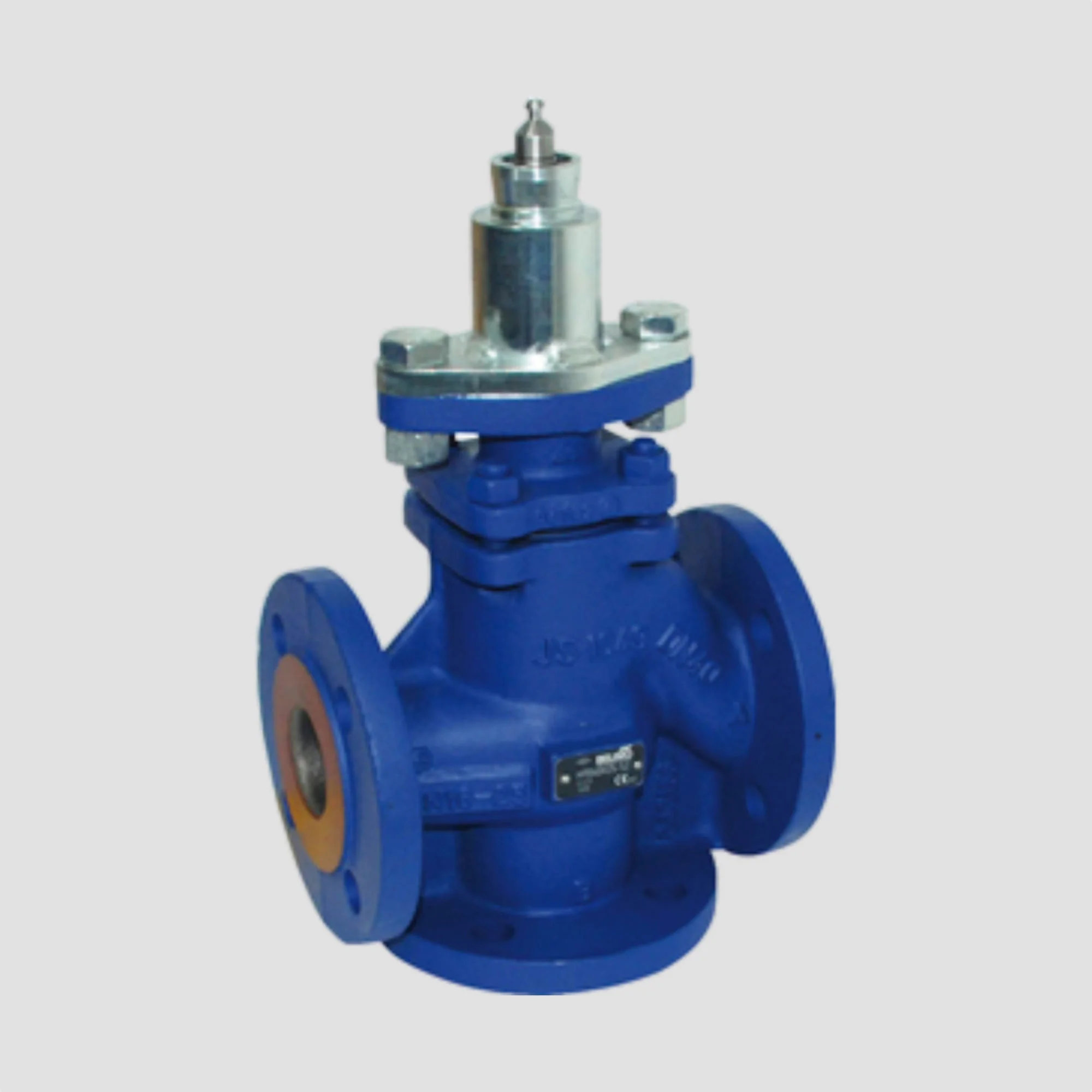

Belimo Flanged 3 Way Globe Valves - PN25
Product Codes: H7015X4-S2 \ H7015X4-S2 \ H7020X6P3-S2 \ H7020X6P3-S2 \ H7025X10-S2 \ H7025X10-S2 \ H7032X16-S2 \ H7032X16-S2 \ H7040X25-S2 \ H7040X25-S2 \ H7050X40-S2 \ H7050X40-S2 \ H7065X63-S4 \ H7065X63-S4 \ H7080X100-S4 \ H7080X100-S4 \ H7100X160-S4 \ H7100X160-S4

Belimo Flanged 3-Way Globe Valves with a PN25 pressure rating are engineered to provide precise control and distribution of fluids in high-pressure HVAC (Heating, Ventilation, and Air Conditioning) and industrial systems. These valves offer exceptional reliability, durability, and performance in demanding applications, thanks to their robust construction and advanced features.

Permissible Operating Pressure (kPa) 2500
Fluid Temperature 5 - 200°C
DN 15 - 100
Kvs (m³/h) 0.4 - 160
Find Out More

Comprehensive Selection of Cutting-Edge HVAC Field Devices

Browse a vast catalogue of damper actuators, sensors/meters, & control valves by Belimo, designed for HVAC applications, ensuring high quality performance, reliability and low power consumption.

Frequently Asked Questions

A Belimo Globe Valve is a type of control valve designed to regulate the flow of fluids in a pipeline. It consists of a movable disk or plug that controls the flow rate by adjusting the size of the flow passage.

Belimo Globe Valves are commonly used in HVAC (Heating, Ventilation, and Air Conditioning) systems, industrial processes, and building automation to regulate the flow of water, steam, or other fluids.

Belimo Globe Valves are known for their high precision, reliability, and durability. They often incorporate advanced technologies such as electronic actuation for precise control and monitoring.

Belimo Globe Valves operate by using an actuator to position the valve stem, which in turn controls the flow of fluid through the valve body. The actuator can be electric, pneumatic, or hydraulic, depending on the application.

Belimo Globe Valves can accept various control signals, including analog (4-20 mA), digital (MODBUS, BACnet), and even wireless signals, allowing for seamless integration into building automation systems.

Yes, Belimo Globe Valves are available in a range of sizes and materials to accommodate different piping systems and fluid types. Common materials include stainless steel, brass, and cast iron.

With proper maintenance and operation, Belimo Globe Valves can have a lifespan of 10-20 years or more, depending on the operating conditions and usage frequency.

Yes, like any mechanical component, Belimo Globe Valves require regular inspection and maintenance to ensure optimal performance and longevity. This may include lubrication, seal replacement, and calibration of the actuator.

Yes, Belimo offers a range of customisation options for Globe Valves to meet the specific requirements of different applications, including special materials, coatings, and actuator configurations.

Yes, Belimo Globe Valves are designed with energy efficiency in mind, often featuring low-power actuators and optimised flow characteristics to minimize energy consumption while maintaining precise control.

Yes, Belimo typically offers warranty coverage for their Globe Valves, ensuring peace of mind for customers regarding product quality and reliability.

Belimo Globe Valves are available through authorised distributors such as Actuation Valve and HVAC suppliers worldwide. Customers can also purchase directly from Belimo's website or contact their sales representatives for assistance.
