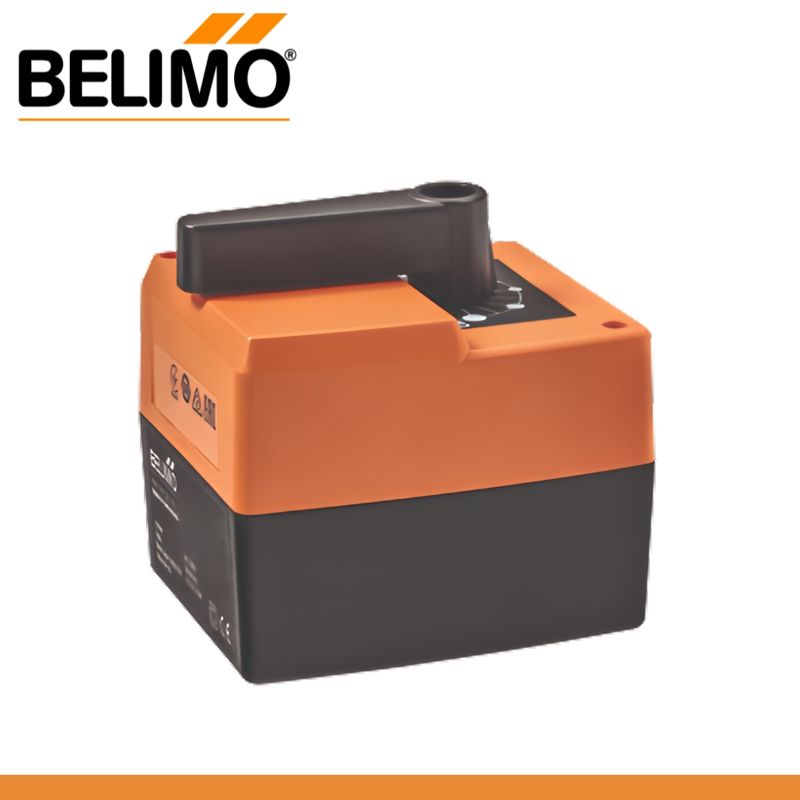

Belimo HT230-3 Rotary Actuator for Mixing Valves 10 Nm 230V 3-Point

The Belimo HT230-3 is a rotary actuator designed specifically for the motorised control of mixing valves in HVAC heating and cooling systems. Operating on an AC 230 V power supply, this actuator delivers 10 Nm of torque and uses 3-point control to accurately regulate valve position, helping maintain stable temperature control and efficient system performance.

With a running time of approximately 140 seconds for a full 90° rotation, the HT230-3 provides smooth and controlled valve movement, ensuring precise mixing of hot and cold water within heating circuits and hydronic systems. The actuator includes a manual override feature that allows engineers to disengage the gear mechanism and position the valve manually during commissioning or maintenance
