Belimo Threaded Characterised Control Valves

Belimo's 2 Way and 3 Way Threaded Characterised Control Valves are engineered for closed and open water circuits, supporting fluid temperatures from -10°C to 120°C. These air-bubble tight valves, with internal and external threads for straightforward installation, are compatible with various actuators (TR, LR, NR, SR, etc.), ensuring efficient performance across DN15-50 pressure ranges, making them a reliable selection for diverse water systems.

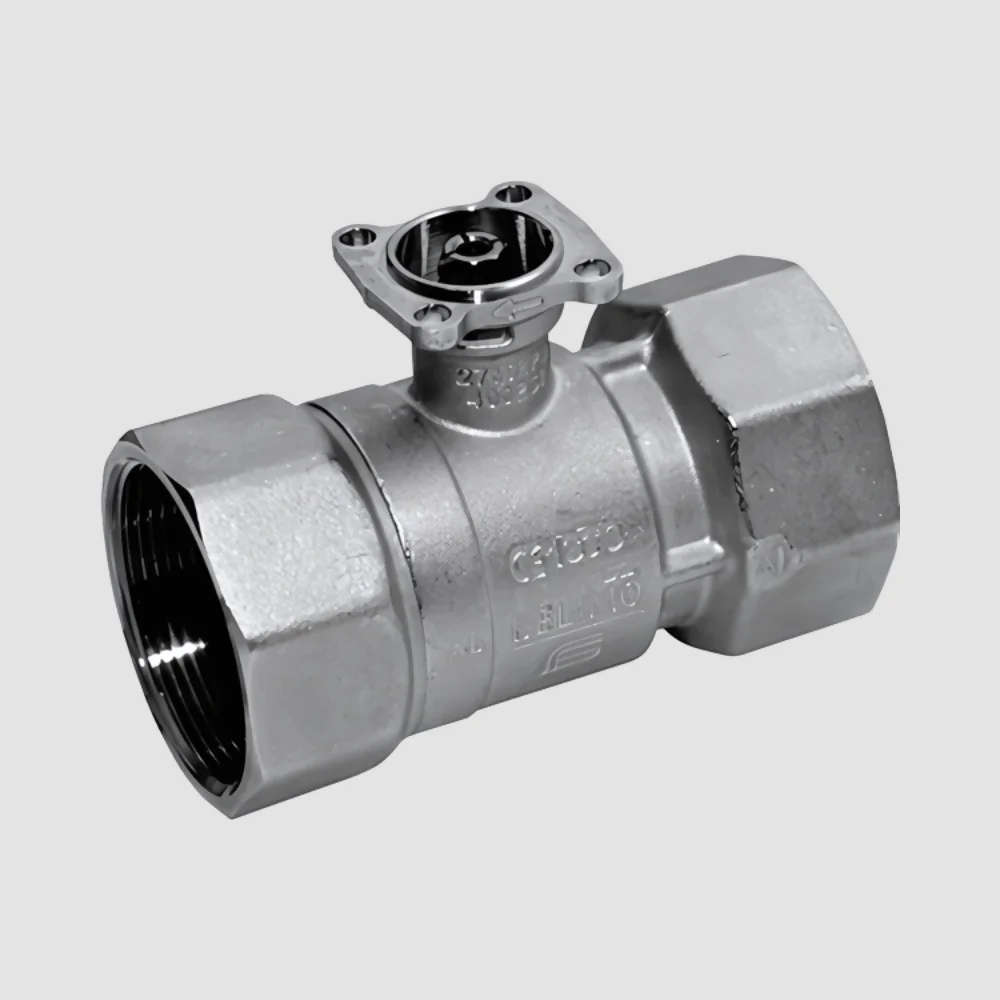

Belimo 2 Way Threaded Characterised Control Valves

Belimo 2 Way Threaded Characterised Control Valves are designed for both closed and open water circuits, suitable for fluid temperatures from -10°C to 120°C. These valves feature internal and external threads for easy installation and are compatible with a wide range of actuators including TR, LR, NR, SR, and more. With an air-bubble tight leakage rate, they ensure efficient operation across pressure ranges DN15-50, making them a reliable choice for various water systems.

Field of Use: Closed & Open Water Circuit
Fluid Temperature: -10°C to 120°C
Pipe Connection: Internal Thread Rp (ISO 7-1) & External Thread G (ISO228-1)
Leakage Rate: Air-Bubble Tight, Leakage Rate A (EN 12266-10
Pressure Range: DN15-50
Suitable Actuator Ranges: TR, LR, NR, SR, TRC, LRC, NRC, SRC, TRF, LRF, NRF, & SRF
Find Out More

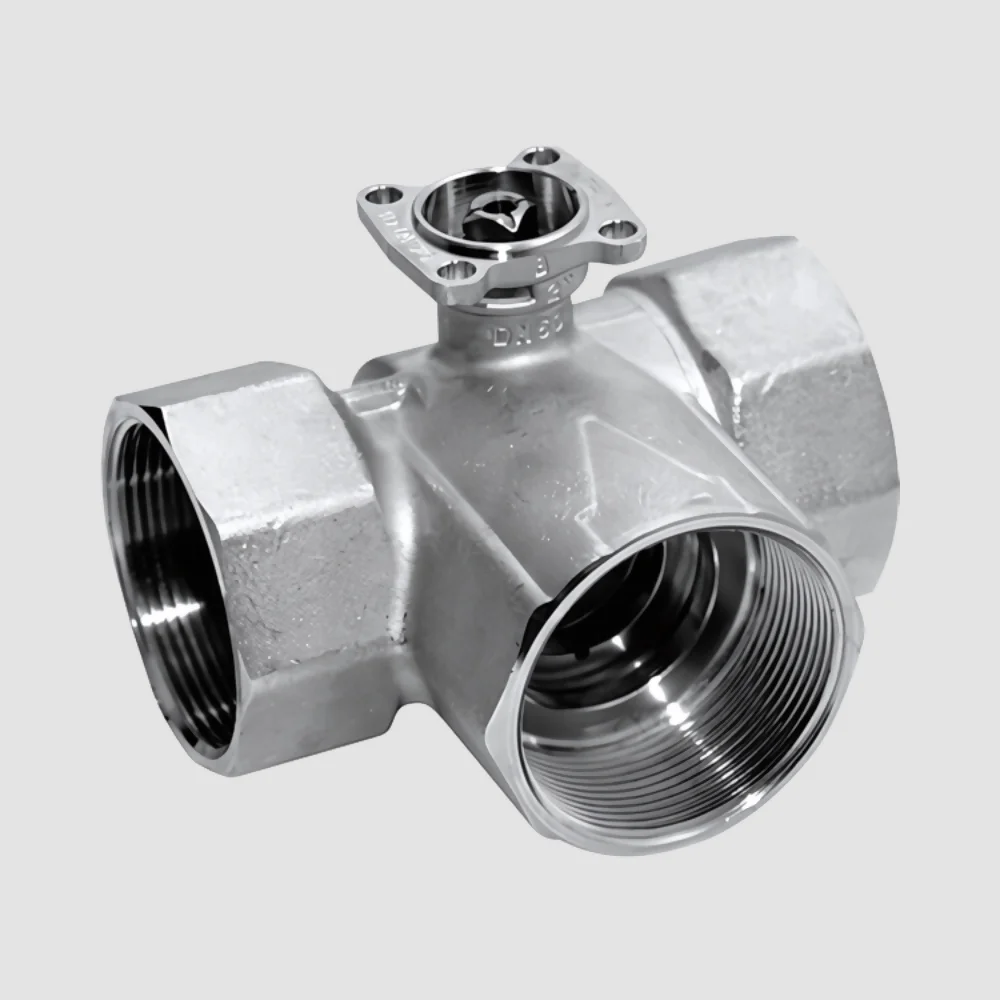

Belimo 3 Way Threaded Characterised Control Valves

Belimo's 3-Way Threaded Characterised Control Valves are designed for both closed and open water circuits, suitable for fluid temperatures from -10°C to 120°C. These valves offer air-bubble tight control with a leakage rate A (EN12266-1) for path A-AB and a linear bypass B-AB. They connect via internal thread Rp and external thread G, compatible with actuators TR, LR, NR, SR, and their variants, ensuring reliable operation across DN15-50 pressure ranges.

Field of Use: Closed & Open Water Circuit
Fluid Temperature: -10°C to 120°C
Pipe Connection: Internal Thread Rp (ISO 7-1) & External Thread G (ISO 228-1)
Leakage Rate: Control Path A - AB: Air-Bubble Tight, Leakage Rate A (EN12266-1) / Bypass B - AB: Linear
Pressure Range: DN15-50
Suitable Actuator Ranges: TR, LR, NR, SR, TRC, LRC, NRC, SRC, TRF, LRF, NRF, & SRF
Find Out More

Comprehensive Selection of Cutting-Edge HVAC Field Devices

Browse a vast catalogue of damper actuators, sensors/meters, & control valves by Belimo, designed for HVAC applications, ensuring high quality performance, reliability and low power consumption.

Frequently Asked Questions

Belimo is a global market leader in the development, production, and marketing of actuator solutions for controlling heating, ventilation, and air conditioning (HVAC) systems in buildings.

Belimo manufactures a wide range of valves including globe valves, butterfly valves, ball valves, and pressure independent control valves (PICVs) for HVAC systems.

Belimo actuators are devices used to control the opening and closing of valves. They are motor-driven devices that receive signals from a building automation system (BAS) or a controller to regulate the flow of fluids in HVAC systems.

Belimo actuators offer high precision, reliability, and energy efficiency. They are designed for easy installation and integration with various building automation systems, providing precise control over HVAC components.

Belimo sensors are devices used to measure various environmental parameters such as temperature, humidity, and air quality. These sensors provide feedback to building automation systems, enabling better control and optimisation of HVAC systems.

Belimo valves, particularly pressure independent control valves (PICVs), help optimise energy usage by maintaining constant flow rates regardless of pressure fluctuations in the system. This ensures efficient operation of HVAC systems and minimises energy waste.

Belimo actuators are known for their durability and long lifespan. With proper maintenance and usage, they can last for many years, providing reliable operation in HVAC systems.

Yes, Belimo actuators are designed to be compatible with a wide range of valves, including those from other manufacturers. They can often be retrofitted onto existing valves, providing an easy and cost-effective way to upgrade HVAC systems.

Yes, Belimo products support various communication protocols such as BACnet, Modbus, and LonWorks, allowing seamless integration with different building automation systems and protocols.

Belimo maintains rigorous quality control standards throughout the manufacturing process. Additionally, all products undergo extensive testing to ensure they meet performance specifications and reliability standards.

Belimo offers comprehensive warranty coverage for its products, typically ranging from two to five years depending on the product and region. This warranty provides customers with peace of mind and assurance of product quality.

Yes, Belimo offers a wide range of valves and actuators suitable for various HVAC applications, including air handling units, fan coil units, chilled beams, radiators, and underfloor heating systems. Whether it's for heating, cooling, or ventilation, Belimo products are designed to meet the diverse needs of different HVAC systems.

FAQ

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
