Brandoni Pressure Control Valves are engineered to maintain consistent downstream pressure in a wide range of applications, from water distribution and HVAC systems to industrial processing lines. Designed and manufactured in Italy, these valves automatically adjust to changes in flow or inlet pressure, ensuring system stability and protecting sensitive equipment from overpressure.

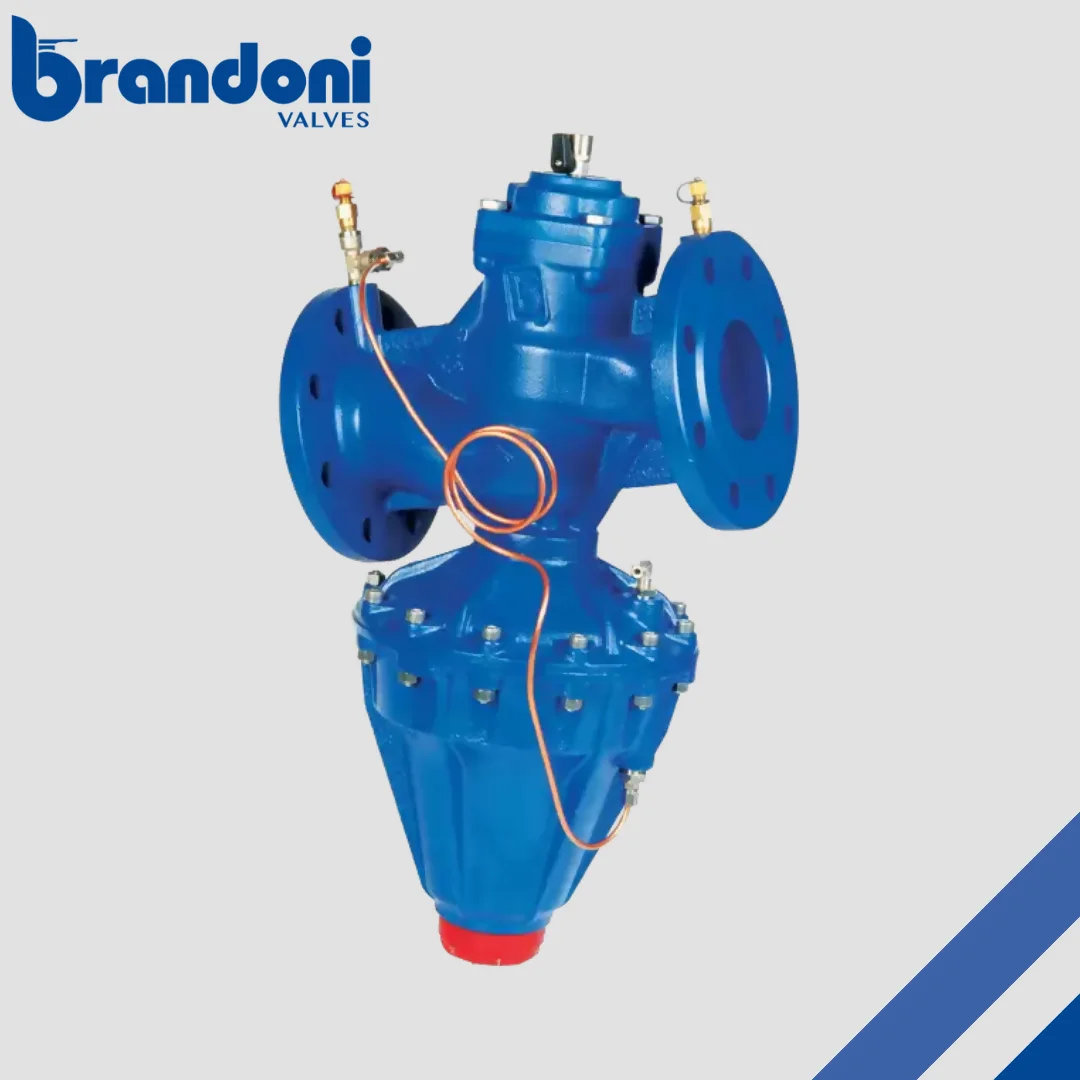

The Brandoni Modulating Differential Pressure Control Valve (DPCV) is designed to maintain a constant differential pressure across terminal units or branches in heating and cooling systems. By automatically adjusting to changes in system pressure, the DPCV helps stabilise flow rates, improve energy efficiency, and protect sensitive components from pressure fluctuations.

Size Range:	DN65 - DN150
Pressure Rating:	PN16
Temperature Rating:	-10 + 120°C
Body Materials:	Cast Iron EN GJL 250

Find Out More

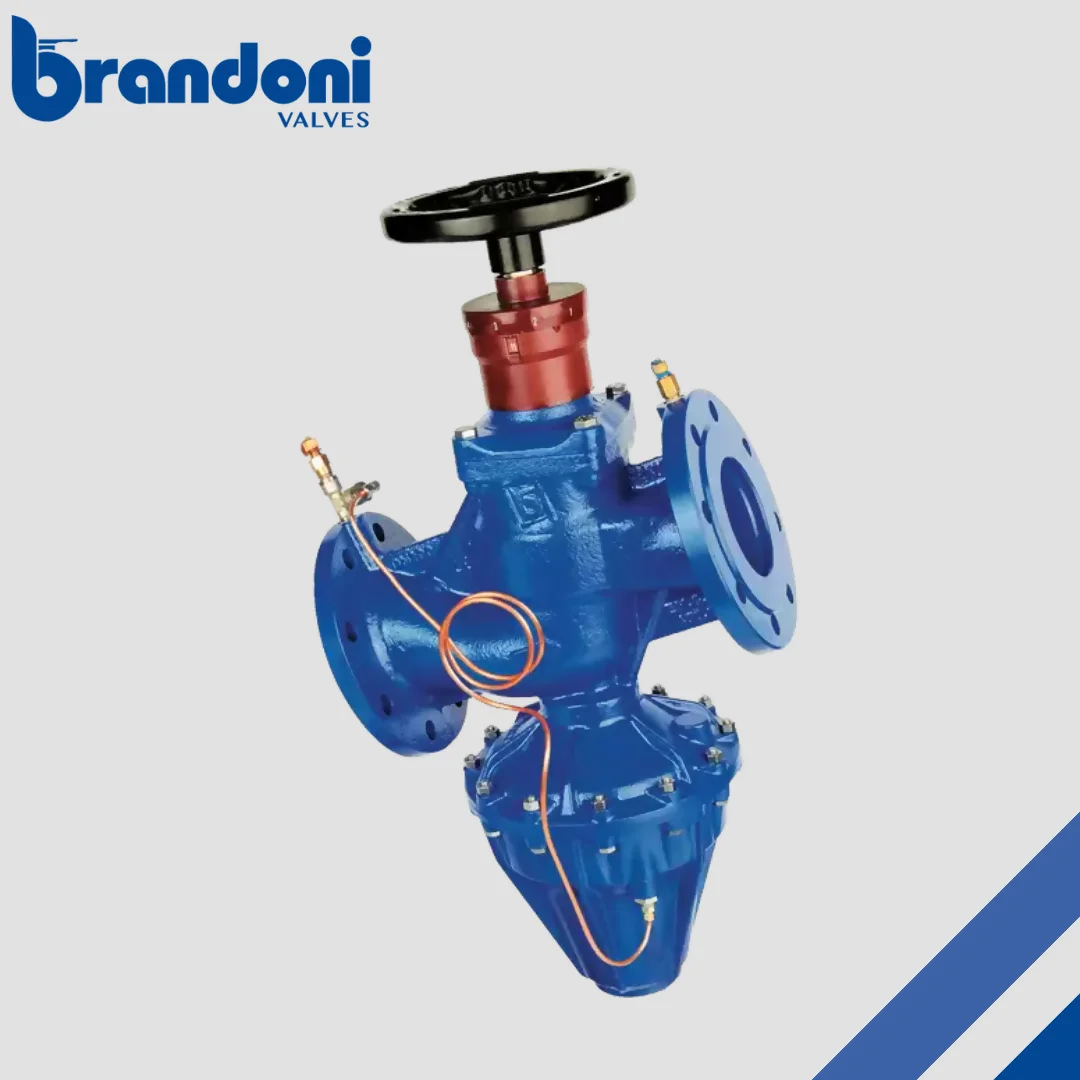

The Ekoflux.M Series Modulating Differential Pressure Control Valve (DPCV) from Brandoni is engineered to maintain stable differential pressure across key components in variable flow HVAC systems. Designed to work alongside control valves or thermostatic heads, it ensures constant pressure conditions—enhancing flow regulation, system stability, and energy efficiency across changing load demands.

Size Range:	DN65 - DN150
Pressure Rating:	PN16
Temperature Rating:	-10 + 120°C
Body Materials:	Cast Iron EN GJL 250

Find Out More

Brandoni Pressure Control Valves are designed to maintain safe, consistent pressure levels in fluid systems, ensuring the protection of downstream equipment and overall system stability. Whether regulating fluctuating supply lines or managing distribution pressures, these valves provide precise control and reliable performance.

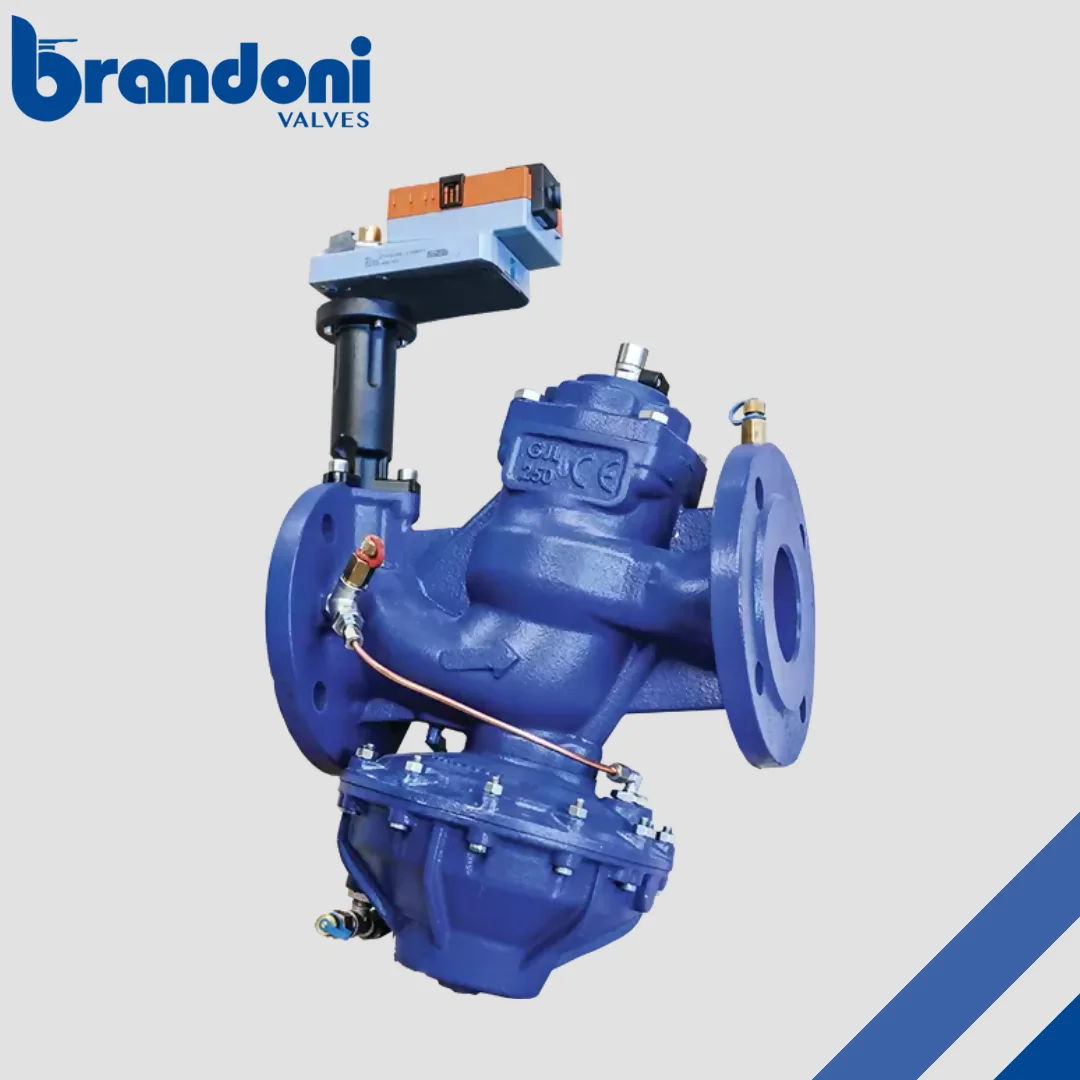

The Ekoflux.PI Series from Brandoni is a high-performance Pressure Independent Control Valve (PICV) that combines dynamic flow balancing and precise control into a single compact unit. Designed for medium to large-scale heating and cooling systems, this flanged PICV ensures accurate flow regulation regardless of fluctuating differential pressure—helping to maximise energy efficiency and thermal comfort across the system.

Size Range:	DN65 - DN150
Pressure Rating:	PN16
Temperature Rating:	-10 + 120°C
Body Materials:	Cast Iron EN GJL 250

Find Out More

Brandoni Pressure Control Valves are used to regulate and maintain consistent downstream pressure in fluid systems. They protect equipment, ensure stable operation, and optimise flow in water, HVAC, and industrial networks.

A pressure control valve manages and maintains system pressure dynamically, often in both directions. A pressure reducing valve specifically lowers high inlet pressure to a stable, reduced outlet pressure.

Yes, many Brandoni pressure control valves are suitable for potable water applications, with certain models available in WRAS-approved versions.

They are typically constructed from robust materials such as bronze, brass, or ductile iron, with internal parts resistant to corrosion and wear.

Yes, many Brandoni models feature adjustable pressure settings, allowing precise control to match system requirements.

They are used in HVAC systems, potable and non-potable water supply, industrial processing, irrigation, and closed-loop fluid networks.

Yes, by stabilising pressure and flow rates, they help minimise sudden changes that can cause water hammer or pressure surges.

A DPCV regulates differential pressure across terminal units, helping to stabilise flow in variable flow systems such as modern HVAC networks.

Yes, the Ekoflux.PI Series is Brandoni’s range of flanged PICVs, combining flow control and pressure regulation in one unit for simplified balancing.

Installation should follow the flow direction indicated on the valve body. Always ensure the valve is installed in a clean, debris-free line and refer to Brandoni's technical documentation for correct orientation and setup.

Brandoni valves are designed for low maintenance, but regular inspections are recommended to check seals, pressure settings, and overall performance, especially in high-use systems.

Brandoni Pressure Control Valves are available in a range of sizes from DN15 to DN200, with threaded or flanged PN16 connections depending on the model.

Please feel free to request information and advice using the form below or call us on 0151 547 1221
