AV LITE®

The AV LITE® Electric Actuators provide efficient and reliable operation with torque outputs up to 40NM, suitable for various applications in water, gas, air, and oil. These standalone units are easy to mount and available in different voltage options. The durable nylon housing is waterproof, dustproof, and resistant to heat and chemicals. With low power consumption and built-in overheating protection, they offer consistent performance. Additionally, they feature a visual position indicator and can be connected for signal feedback.
Enquire Buy Now

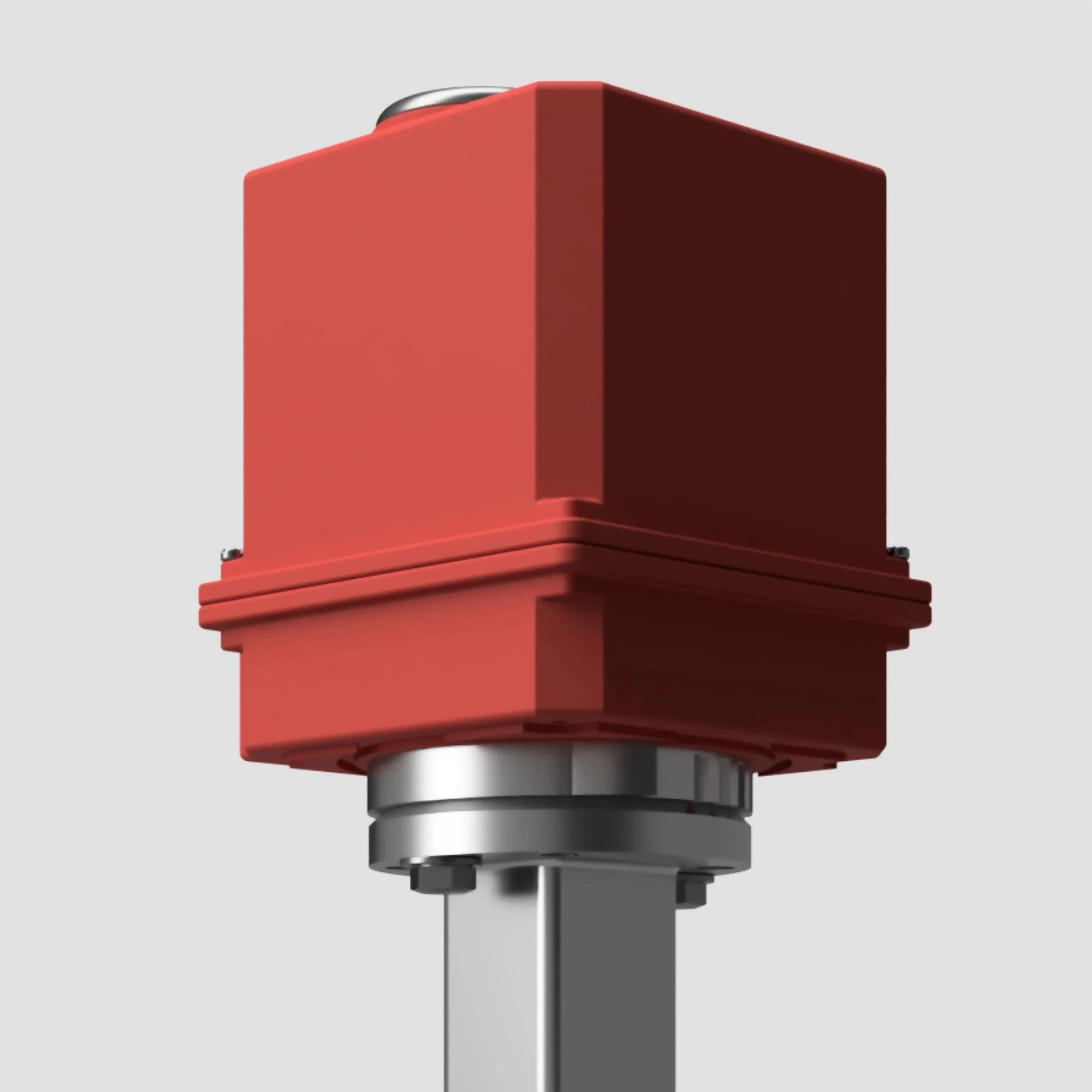

AV LITE® Electric Actuators

These actuators, with torque outputs up to 40NM, are available as standalone units and feature direct mount capabilities for ISO 5211 valves in 110VAC, 230VAC, and 24VDC. The AV-LITE nylon housing is rated IP67 for waterproof and dustproof protection and is resistant to heat, acid, and alkali. The compact motor consumes low power and is ideal for most small bore ball valves, equipped with an internal overheating protection device. All models provide constant mechanical and visual position indication on the actuator cover and can be wired to a control box for signal feedback.

Function: On/Off
Body Material: Nylon
Rotation: 90°
Torque Levels: 40NM Maximum
Temperature Rating: 55ºC Maximum (150ºF)
Find Out More

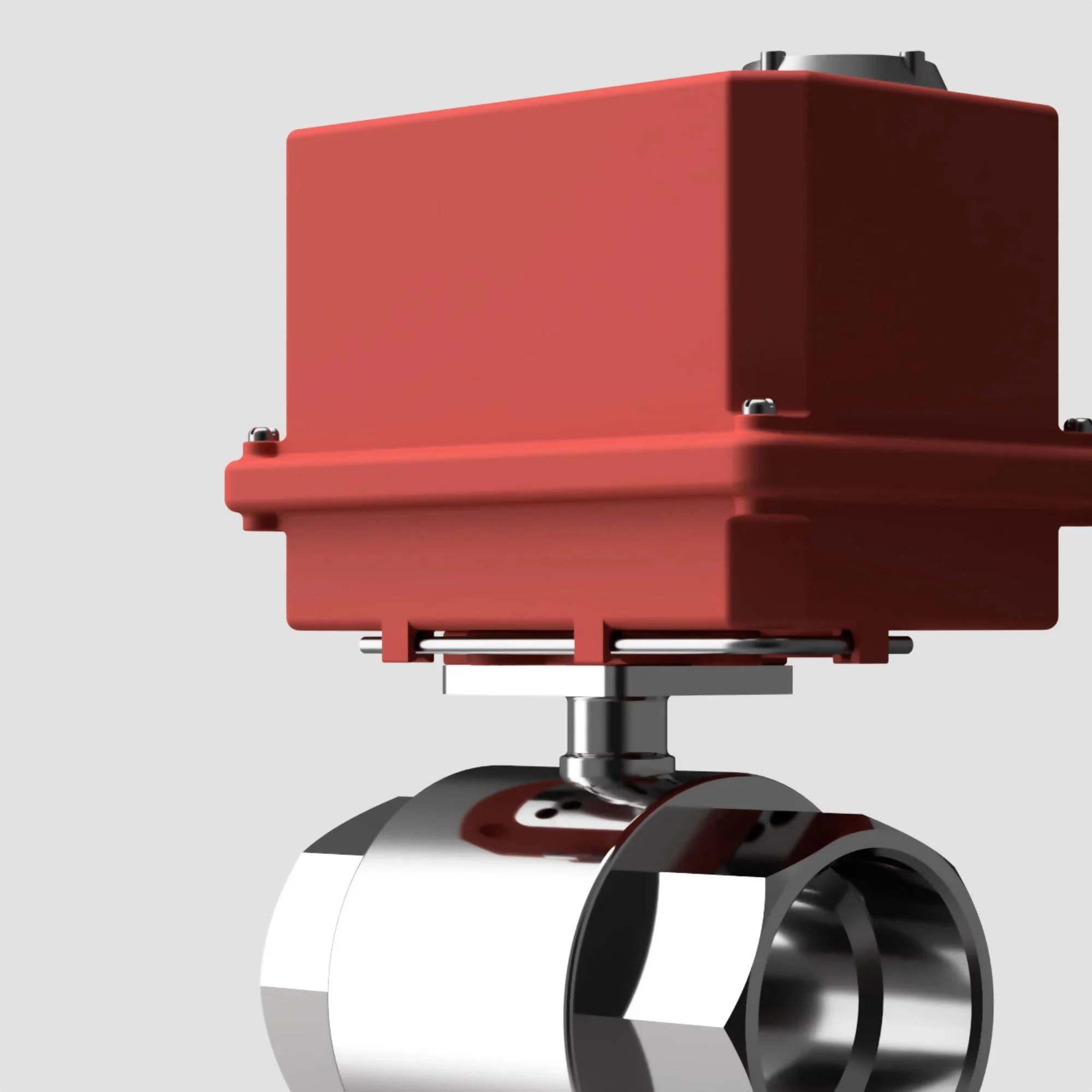

AV LITE® Actuated Ball Valves

The AV-LITE® Electric Actuators, with torque outputs up to 40NM, are available as stand-alone units with direct mount capabilities for ISO 5211 valves in 110VAC, 230VAC, and 24VDC. The AV-LITE features a nylon housing rated IP67 for waterproof and dustproof protection, and is resistant to heat, acid, and alkali. The compact motor offers low power consumption and includes an internal overheating protection device. All models provide constant mechanical and visual position indication on the top of the actuator cover and can be wired to a control box for signal feedback.

Size Range: DN08-DN100 (1/4" to 4")
Body Materials: Brass CW 617 N & Stainless Steel A351 CF8M 316
Body Types: Full Bore, 2 Piece
Applications: Water, Gas, Air, Drinking Water, Waste Water, & Oil
Pressure Rating: 1000 PSI
End Connections: Screwed BSPP & Screwed BSPP/NPT
Find Out More

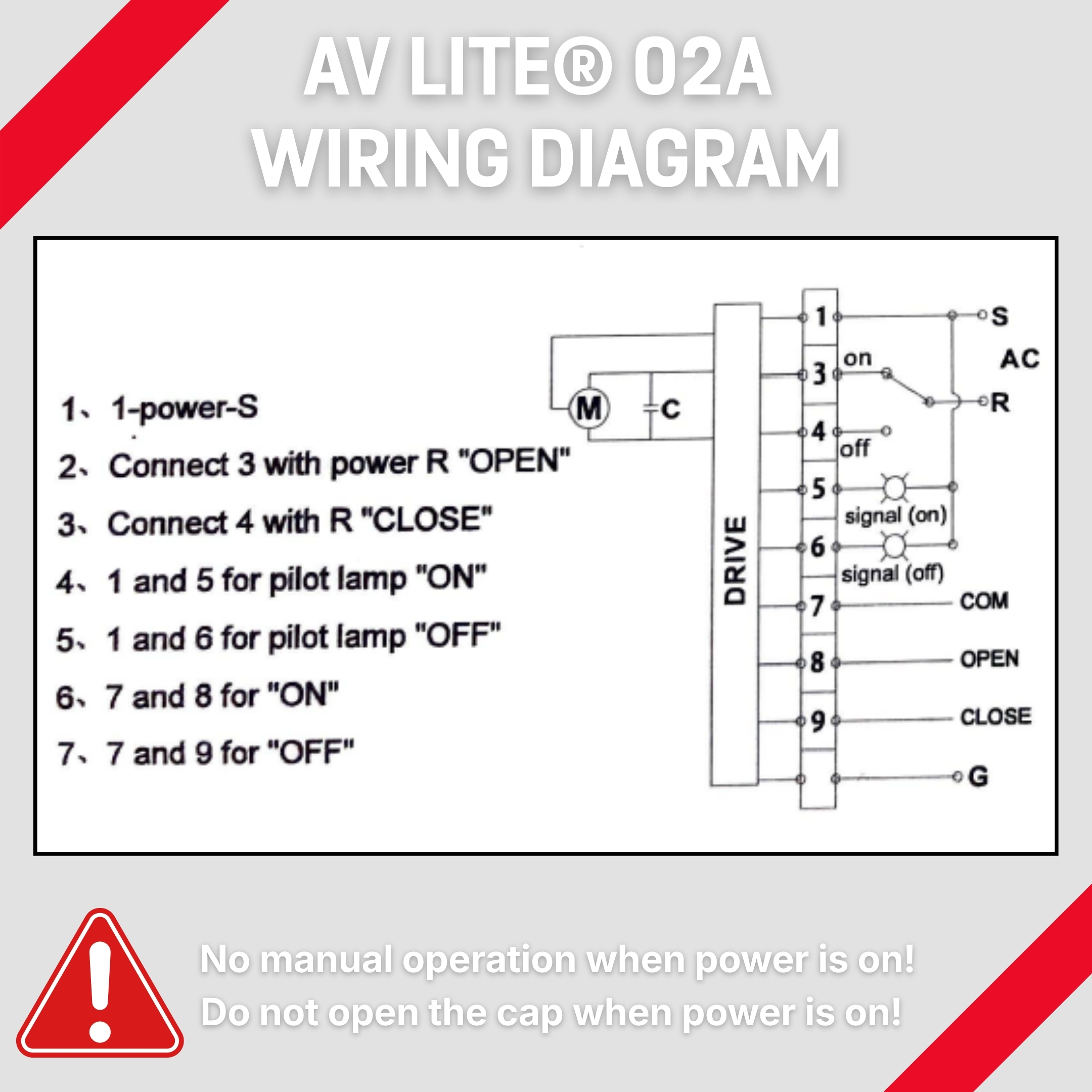

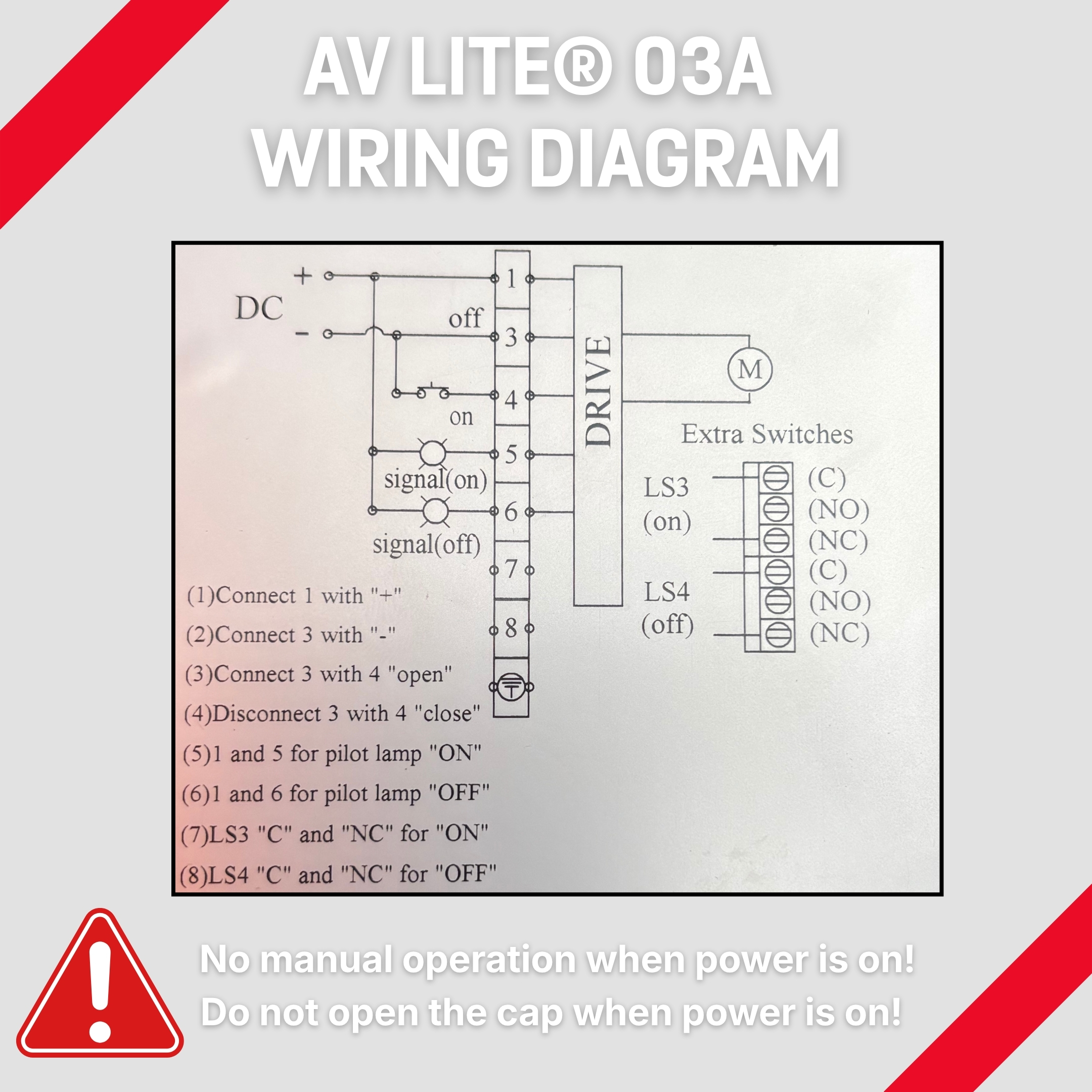

Wiring Diagrams

Why AV LITE®

Versatile Voltage Options and Easy Mounting

AV LITE® Electric Actuators are available in 110VAC, 230VAC, and 24VDC variants, ensuring compatibility with a wide range of power supplies. The standalone units feature direct mount capabilities for ISO 5211 valves, simplifying the installation process for various applications in water, gas, air, and oil systems.

Robust and Durable Construction

The actuators boast a durable nylon housing rated IP67, providing exceptional protection against water, dust, heat, acid, and alkali. This rugged design ensures reliable performance in harsh environments, making AV LITE® actuators a dependable choice for demanding industrial applications.

Energy-Efficient with Built-In Safety Features

Designed for low power consumption, AV LITE® actuators help reduce energy costs while maintaining high performance. The built-in overheating protection device safeguards the motor, ensuring consistent operation and prolonging the lifespan of the actuator.

Comprehensive Position Indication and Feedback

Each AV LITE® actuator is equipped with a constant mechanical and visual position indicator, allowing for easy monitoring of valve status. Additionally, the units can be wired to a control box for signal feedback, providing real-time data and enhancing system control and automation.

Frequently Asked Questions

AV-LITE® electric actuators are compact, lightweight devices designed for automating quarter-turn valves, such as ball and butterfly valves. They offer direct mounting capabilities compatible with ISO 5211 standard valves and are available in various voltage options, including 110VAC, 230VAC, and 24VDC.

AV-Lite actuators can be used to automate a range of valves, including ball valves, butterfly valves, and plug valves, ensuring efficient and accurate valve operation.

Key features include a compact design, robust construction, ease of installation, and compatibility with various control signals. They are also designed to be energy-efficient and offer reliable performance.

These actuators provide precise control over valve position, enabling better regulation of flow, pressure, and temperature in industrial processes. This improves overall system efficiency and reduces manual intervention.

Yes, AV-Lite electric actuators are designed to withstand harsh environmental conditions, making them suitable for both indoor and outdoor applications. They typically feature weatherproof enclosures and corrosion-resistant materials.

AV-Lite electric actuators are available in various power supply configurations, including 24VDC, 110VAC, and 220VAC, allowing flexibility in integration with different power systems.

Yes, these actuators support remote control and monitoring through various communication protocols, enabling integration with modern industrial automation systems for enhanced operational oversight.

Safety features include torque limiters, manual override options, and fail-safe configurations to ensure safe operation during power outages or system failures.

Maintenance of AV-Lite actuators is straightforward due to their modular design. Regular inspections, cleaning, and lubrication are recommended to ensure long-term reliability and performance.

AV-Lite electric actuators are commonly used in HVAC systems, water treatment plants, oil and gas pipelines, and various industrial automation processes where precise valve control is essential.

AV-Lite actuators can be equipped with fail-safe features such as battery backups or spring return mechanisms that automatically revert the valve to a predefined safe position during a power outage, ensuring process safety.

Yes, AV-Lite electric actuators can be customised with various options such as different housing materials, extended duty cycles, special control features, and tailored mounting kits to meet specific requirements of different applications.
