Electric Koei Carbon Steel PN16 Actuated Ball Valves

The AV-L6KC0-EK flanged PN16 actuation valves offer a reliable quarter turn actuated solution for low to medium pressure requirements with DIN flanged connections (Maximum 16 bar). A range options include additional internal heater, protection coatings and battery backup for return to set position and open or closed fail safe.
Shop Help Me

Key Features

Key features and benefits of the AV-L6KC0-EK Actuated Ball Valves.
1

Key Features

Koei UNIC has developed a new type of worm gear drive that is easy to design and manufacture while providing excellent performance in terms of load capacity, stiffness, backlash and power transmission. All at a competitive and cost effective price.
2

Key Features

This advanced new product is easy to install and maintain while providing superior reliability over traditional hydraulic solutions. Its small size makes it perfect for use in tight spaces or where space is limited.
3

Key Features

All units come complete with general operations and maintenance manuals as standard and free after sales support. Actuation Valve supply the Koei UNIC Actuator to a global network and can provide local technical support wherever you may be located around the world.

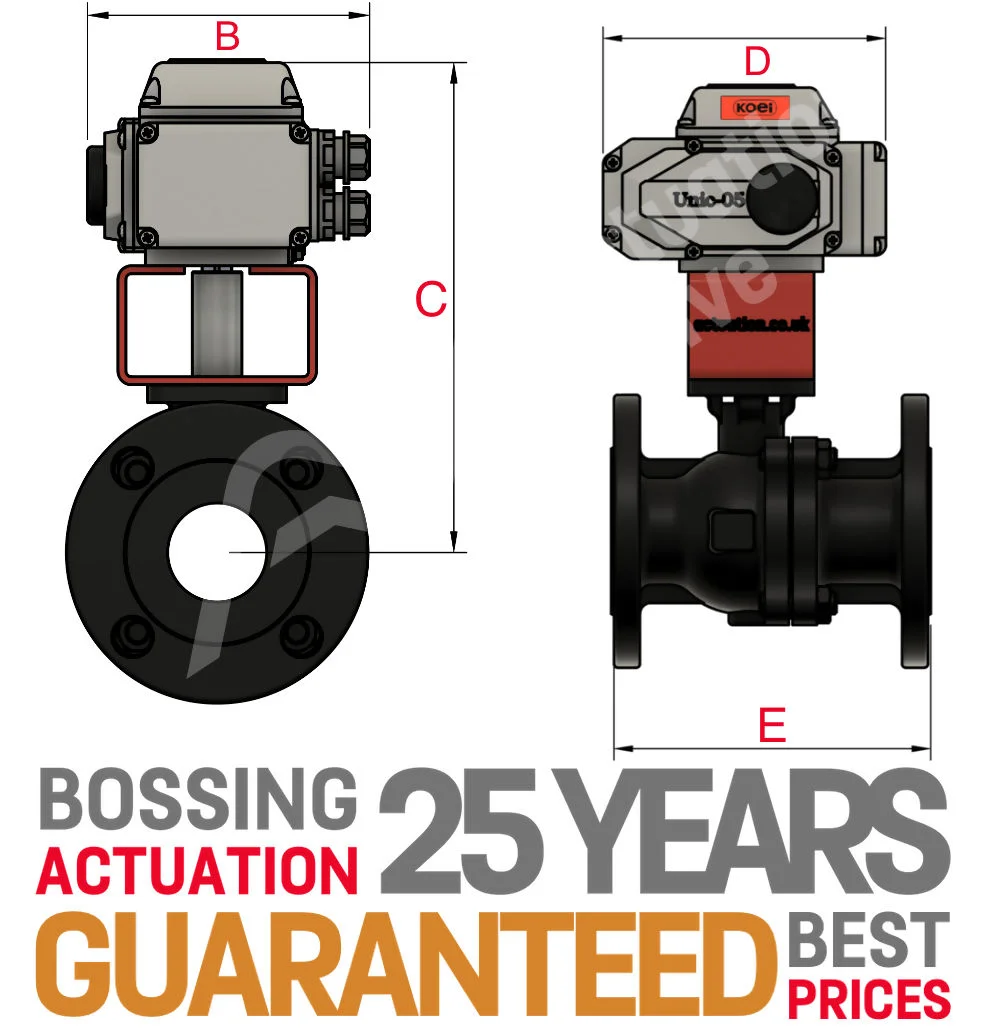

AV-L6KC0-EK Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

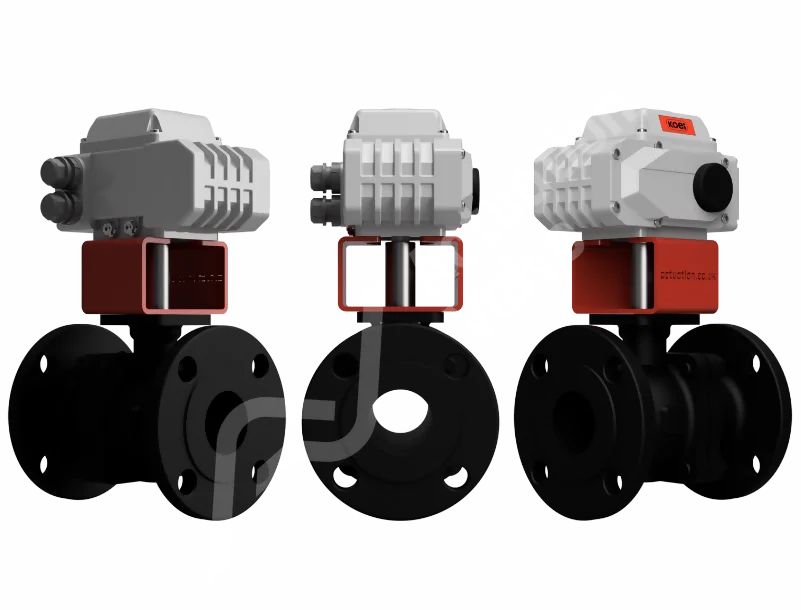

AV-L6KC0-EK Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Small Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-05
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20
  • PDF
DRAWINGS & SCHEMATICS

UNIC-40
  • PDF
DRAWINGS & SCHEMATICS

UNIC-60
  • PDF
DRAWINGS & SCHEMATICS

UNIC-100

Big Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-150
  • PDF
DRAWINGS & SCHEMATICS

UNIC-05 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20 GEAR OP

This is an example heading

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff
Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Body Seal
Stem Packing Material: Grafoil
Design Standard: EN 12516-1
Wall Thickness: EN 12516-1
Inspection & Testing: EN 12266-1
Face 2 Face: DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

Frequent Interrogation

Yes, this Actuated Ball Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
